Oilfield Mud Treatment Equipment for Modern Drilling Operations

Oilfield Mud Treatment Equipment for Drilling Solids Control Systems

Efficient drilling fluid management is one of the most important parts of modern drilling operations. In oil and gas drilling, drilling mud carries drill cuttings from the wellbore to the surface, cools the drill bit, stabilizes the wellbore, and maintains formation pressure. Without proper mud treatment, excessive solids can reduce drilling efficiency, increase equipment wear, and raise overall drilling costs.

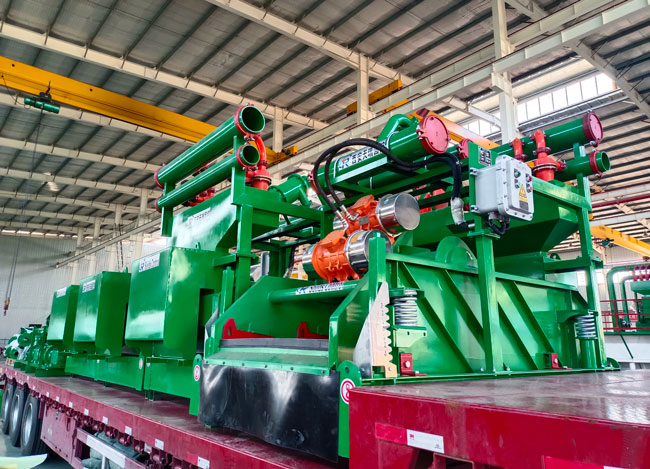

Oilfield mud treatment equipment is designed to remove unwanted solids from drilling fluid and recycle usable mud back into the circulation system. A complete solids control system helps drilling contractors reduce waste, improve drilling performance, and lower operating costs.

TR Solids Control provides complete mud treatment solutions for oilfield drilling, HDD drilling, geothermal drilling, and trenchless drilling projects.

What Is Oilfield Mud Treatment Equipment?

Oilfield mud treatment equipment refers to the solids control equipment used to separate drill cuttings and solids from drilling fluid during drilling operations.

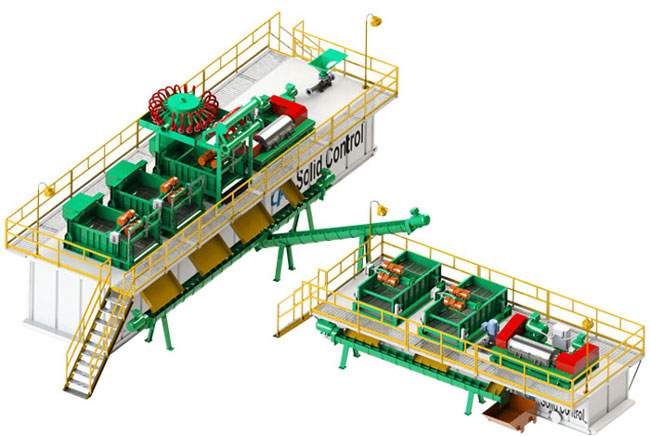

A typical drilling mud treatment system includes:

• shale shaker

• mud cleaner

• desander

• desilter

• decanter centrifuge

• vacuum degasser

• mud agitator

• mud tanks

These systems work together to maintain drilling fluid quality and improve mud recycling efficiency.

Importance of Mud Treatment in Drilling Operations

During drilling, drilling fluid continuously circulates between the wellbore and the surface. As the drilling fluid returns, it contains rock cuttings and formation solids. If these solids are not removed properly, they can create several problems:

• reduced drilling rate

• increased mud consumption

• excessive pump wear

• unstable drilling fluid properties

• higher waste disposal cost

A reliable solids control system helps maintain stable drilling conditions and improves overall operational efficiency.

Main Types of Oilfield Mud Treatment Equipment

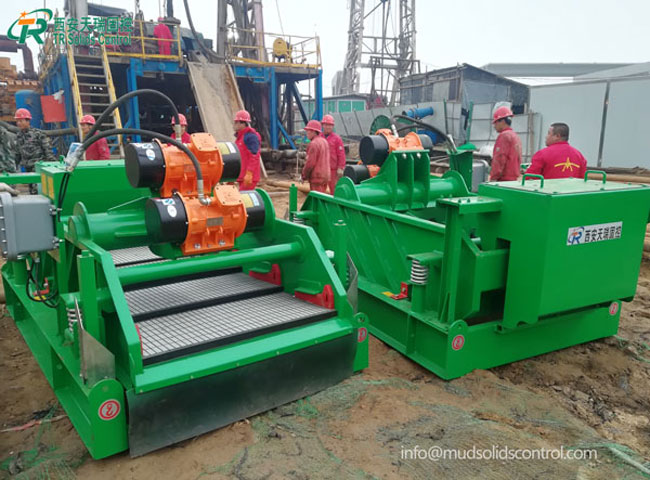

Shale Shaker

The shale shaker is the first-stage solids control equipment in the drilling fluid circulation system. It removes large drill cuttings from drilling fluid using vibrating shaker screens.

TR Solids Control shale shakers are designed with high G-force vibration and API-compliant shaker screens to improve solids separation efficiency and drilling fluid recovery.

Main features include:

• high processing capacity

• durable screen basket

• adjustable deck angle

• explosion-proof vibration motors

• easy maintenance

TR Shale shakers are widely used in oil drilling, HDD drilling, and offshore drilling operations.

Mud Cleaner

The mud cleaner combines desander cones, desilter cones, and a bottom shale shaker into one compact unit.

The mud cleaner removes medium and fine solids from drilling fluid after primary screening. It helps improve drilling fluid cleanliness while reducing mud loss.

Advantages of mud cleaners include:

• compact structure

• efficient solids separation

• lower operating cost

• reduced drilling fluid waste

Desander and Desilter

Desanders and desilters use hydrocyclone technology to remove smaller solid particles from drilling fluid.

Mud desanders typically separate particles between 40 and 100 microns, while desilters remove finer particles between 15 and 45 microns.

These units improve drilling fluid performance and protect downstream equipment from abrasive solids.

Decanter Centrifuge

Mud Decanter centrifuge is used for fine solids separation in advanced drilling fluid treatment systems.

Using high-speed centrifugal force, the centrifuge removes ultra-fine solids from drilling mud and controls low-gravity solids content.

Benefits of using decanter centrifuge include:

• improved mud recovery

• reduced drilling waste

• better drilling fluid performance

• lower disposal cost

Drilling centrifuges are commonly used in oilfield waste management systems and zero-discharge drilling projects.

Vacuum Degasser

Vacuum degasser removes gas from drilling fluid. Gas-cut mud can reduce drilling fluid density and affect drilling safety.

The mud vacuum degasser improves mud stability and helps maintain safe drilling operations.

How Oilfield Mud Treatment Systems Work

A complete mud treatment system usually follows several stages.

First, drilling fluid returns from the wellbore and enters the shale shaker. Large drill cuttings are removed through shaker screens.

Next, the drilling fluid flows through desanders and desilters, where smaller particles are separated using hydrocyclones.

After secondary separation, the drilling fluid may enter decanter centrifuge for fine solids removal.

Finally, the cleaned drilling fluid returns to the mud tanks for reuse in drilling operations.

This closed-loop recycling process helps reduce drilling fluid consumption and minimizes environmental impact.

Applications of Oilfield Mud Treatment Equipment

Oilfield mud treatment systems are widely used in:

• oil and gas drilling

• HDD drilling

• geothermal drilling

• trenchless drilling

• CBM drilling

• offshore drilling

Different drilling projects require different solids control configurations based on drilling conditions and mud circulation capacity.

Advantages of Modern Solids Control Systems

Modern mud treatment systems provide several important benefits.

Improved Drilling Efficiency

Efficient solids removal helps maintain proper drilling fluid properties and improves drilling performance.

Reduced Drilling Waste

Mud recycling systems reduce waste volume and lower disposal costs.

Lower Operating Cost

Recovering reusable drilling fluid reduces mud replacement expenses.

Longer Equipment Life

Removing abrasive solids protects pumps and drilling equipment from excessive wear.

Environmental Protection

Modern solids control systems help drilling contractors meet environmental regulations and reduce environmental impact.

How to Choose the Right Mud Treatment Equipment

Selecting suitable oilfield mud treatment equipment depends on several factors:

• drilling depth

• mud circulation rate

• drilling fluid type

• solids content

• environmental requirements

• project mobility requirements

For HDD and trenchless drilling projects, compact and trailer-mounted mud recycling systems are often preferred.

For large oilfield drilling projects, high-capacity solids control systems with centrifuges and waste management equipment are commonly required.

FAQ

What is oilfield mud treatment equipment?

Oilfield mud treatment equipment is used to separate solids from drilling fluid and maintain drilling mud performance during drilling operations.

What is the function of shale shaker?

Drilling shale shaker removes large drill cuttings from drilling fluid as the first stage of solids control.

Why is drilling fluid recycling important?

Drilling fluid recycling reduces operational costs, minimizes waste, and improves drilling efficiency.

Can TR Solids Control provide complete solids control systems?

Yes. TR Solids Control provides complete solids control and mud recycling systems for oilfield and HDD drilling projects.

Do you provide customized drilling mud systems?

Yes. Customized mud treatment solutions are available based on project requirements and drilling conditions.

Conclusion

Oilfield mud treatment equipment is essential for efficient and cost-effective drilling operations. Mud solids control system improves drilling fluid recovery, reduces waste, and enhances drilling performance.

TR Solids Control provides complete solids control solutions including:

• shale shakers

• mud cleaners

• desanders

• desilters

• decanter centrifuges

• drilling waste management systems

• complete mud recycling systems

With extensive manufacturing experience and professional engineering support, TR Solids Control delivers customized mud treatment solutions for global drilling projects.
