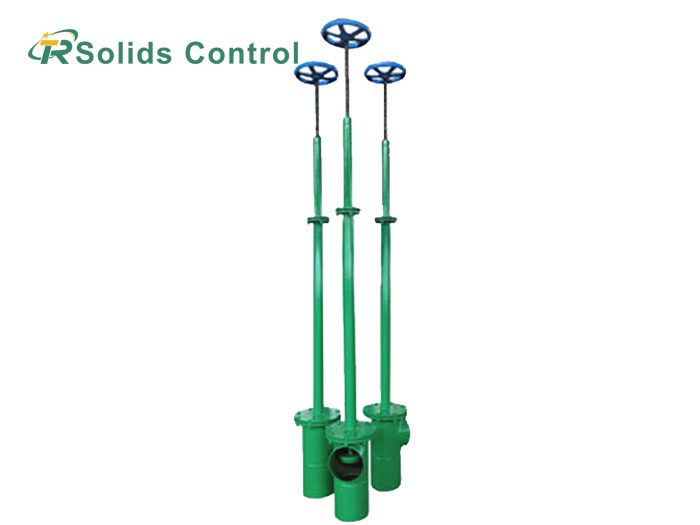

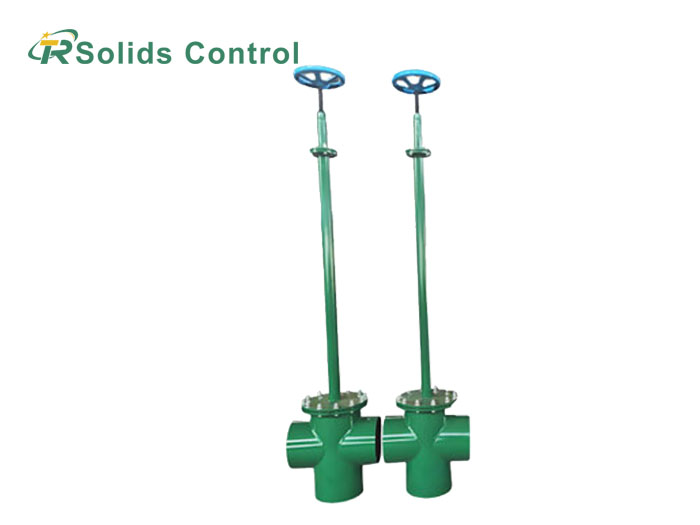

Subsea Valve

TR Subsea Valve controls drilling fluid flow at the bottom of oilfield mud tanks, with 6–14 in. sizes, handwheel, lever, and electric operation.

Product PDF Product Catalogue Inquiry

Description

The TR subsea valve sits at the bottom of an oilfield mud tank and controls drilling fluid moving through the bottom piping. The same valve is also called a tank bottom valve or mud tank bottom valve in oilfield equipment catalogs.

Inside the body, a valve plate and sealing assembly open and close the flow passage. The operating mechanism extends above the tank, so the valve can be operated from the tank deck rather than from below. Individual compartments can be closed off when a tank needs to be isolated.

The suction piping is integrated into the tank structure for installation and transport.

Subsea Valve Advantages

Reliable sealing: The valve plate closes firmly against the sealing seat to reduce mud leakage and dripping.
Fewer wear parts: Simple replacement and less routine maintenance.
Easy handwheel operation: Smooth opening and closing from the tank deck.
Three operating options: Handwheel, lever, or electric operation for different operating setups.
Compact valve assembly: Approximately 50 components for a practical, serviceable construction.

Subsea Valve Parameters

Valve Size	6 inches	8 inches	10 inches	12 inches	14 inches
Operating Type	Handwheel / Lever / Electric
Valve Length	Custom length to match the tank layout

Working Principle

The handwheel turns a lead screw. That moves the connecting rod and the valve plate.

With the plate lifted off the sealing seat, the passage is open and drilling fluid flows through the bottom piping. Turning the handwheel the other way brings the plate back onto the seat and closes it.

Applications

Mud tank bottom suction and discharge lines
Suction connections for mud pumps and centrifugal pumps
Flow control between individual mud tank compartments
Mud transfer lines

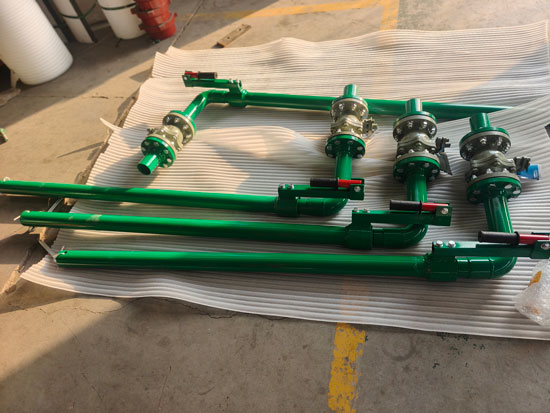

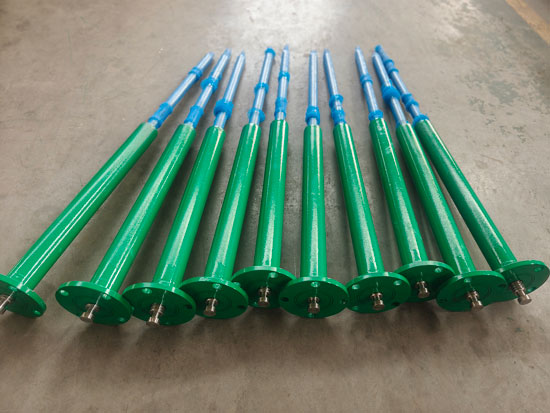

Subsea valve at TR Facotry Subsea valve for mud tank

Selection and Customization

Valve size follows the line it connects to. Pick from 6", 8", 10", 12" or 14" to match.

Operation type is the second choice, and it comes down to how often the valve is used and where the operator stands. Handwheel is the common default. Lever suits valves that get opened and closed through the shift. Electric is the one to ask for when the valve has to be worked from a control panel or the deck is not always accessible.

TR builds the valve length to suit the tank. Send the tank depth, the suction height and the bottom piping arrangement, and the length is set to match.
