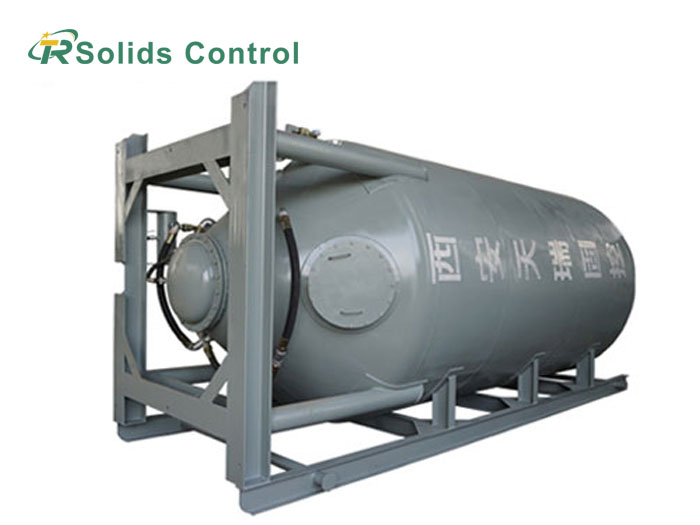

Ash Tank

The Oilfield Vertical Ash Tank is a vertical storage and pneumatic discharge tank for dry powder materials used at oilfield drilling and cementing sites. It stores bulk cement, barite and bentonite and feeds the material into a discharge pipeline for transfer.

The tank is also suitable for other dry powders with a bulk density below 1.7 t/m³ and a particle size below 0.5 mm. Its vertical layout provides enclosed storage while keeping the installation area compact. It can also be integrated into a bulk powder transfer system for drilling or cementing operations.

Key Features

1. Fast pneumatic discharge: Compressed air keeps the powder moving through the discharge line for continuous transfer.

2. Adjustable discharge: The butterfly valve at the outlet controls the amount of material entering the discharge pipeline.

3. Low residual material: The conical bottom directs powder toward the outlet, leaving little material behind after discharge.

4. Enclosed powder handling: Sealed connections help limit powder leakage during storage and pneumatic transfer.

5. Compact footprint: The vertical tank layout saves installation space at the site.

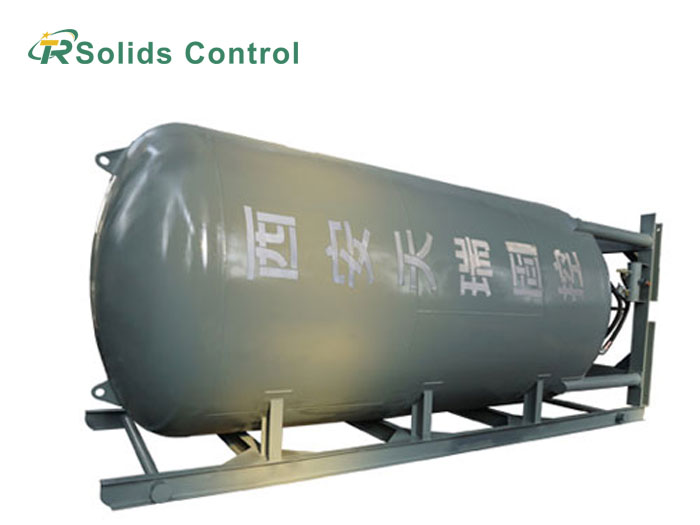

Working Principle & Main Components

Bulk cement, barite, bentonite or other suitable dry powder is loaded through the inlet pipe. When the tank is discharging, compressed air enters the aeration system at the bottom and fluidizes the powder. The fluidized powder then moves toward the outlet and enters the discharge pipeline.

The butterfly valve controls the material flow at the outlet. An air purge line clears powder buildup around the discharge area. The pressure gauge shows the tank pressure during operation, while the safety valve protects the tank against excessive pressure.

Where a weighing system is installed, the tank weight can also be monitored to track the amount of material discharged.

Main components include:

• Inlet pipe

• Vent pipe

• Tank body and support base

• Aeration / fluidization system

• Outlet pipe

• Butterfly valve

• Pressure gauge

• Safety valve

• Lifting and towing lugs

Technical Parameters of Ash Tank

Applications

• Oilfield Drilling Sites

  The tank stores and supplies barite, bentonite and other dry additives for drilling fluid preparation at the rig site.

• Cementing Operations

  Bulk cement is stored in the tank and transferred pneumatically to downstream cementing equipment.

• Drilling Mud Plants

  The tank provides enclosed storage for dry additives and transfers them through a controlled discharge line during drilling fluid preparation.

Selection Considerations

Tank selection mainly depends on the powder material, required storage capacity, discharge rate, working pressure and available installation space. These parameters should be checked before selecting the final model.

TR Manufacturing

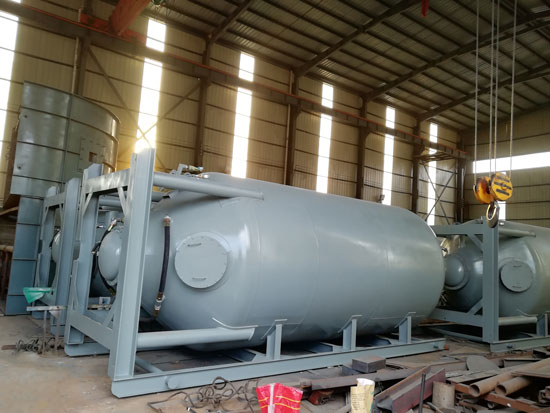

TR manufactures vertical bulk tanks for drilling and cementing applications, with tank capacity, dimensions and discharge arrangements matched to the material and site layout.

Tank fabrication includes welding, surface treatment and corrosion protection, followed by production inspection before delivery.
