Vertical Cuttings Dryer

Vertical Cuttings Dryer Introduction

After primary solids control, cuttings from the shale shaker still carry residual drilling fluid. Every barrel lost to the waste stream adds to mud cost and disposal volume.

A Vertical Cuttings Dryer uses centrifugal force to recover this fluid. Recovered mud returns to the active system, and drier solids exit with less residual oil, cutting both waste weight and disposal cost.

This equipment is standard in oilfield drilling waste management, especially for oil-based mud (OBM) and synthetic-based mud (SBM) operations. It serves as a core component in zero-discharge mud treatment systems, producing dried cuttings suitable for on-site stacking or off-site transport.

How the Cuttings Dryer Works

The Vertical Cuttings Dryer separates drilling fluid from solids using centrifugal force generated by a high-speed rotating basket.

Wet cuttings enter the feed chamber and move across the screen surface, driven by the internal flights. As the basket spins, centrifugal force pushes the liquid phase through the screen apertures. Solids stay inside the basket and move toward the discharge outlet.

The rotating flights tumble the cuttings along the screen surface. This keeps the material bed even, prevents solids buildup, and improves separation efficiency.

Key Features

1. High G-Force Separation

   900 RPM bowl speed generates up to 420G centrifugal force. The optional VFD allows speed adjustment according to operating conditions. Alloy steel bowl resists wear and corrosion in abrasive drilling fluids.

2. Rotating Assembly

   FAG or SKF bearings, sized for continuous heavy-duty operation, and long maintenance intervals.

   Flight faces coated with tungsten carbide for wear resistance beyond standard hardfacing. Each flight and the rotor assembly are individually dynamically balanced before installation. Drive belts replaceable without removing the gearbox.

3. Precision Screens

   Stainless steel screens with tight-tolerance apertures. Each screen mounts independently and is balanced as a standalone unit. Replacement requires only the screen itself. Low spare parts cost across the machine's service life.

4. Wear Protection & Anti-Clogging

   High-chromium cast iron discharge scrapers withstand continuous abrasive service.

   High-pressure air knife continuously clears the screen basket during operation. Particularly effective in sticky, high-viscosity muds and water-based systems prone to screen blinding.

5. Independent Forced Lubrication

   Sealed forced-lubrication circuit with integrated oil cooler, rated for sustained high-temperature operation. PLC continuously monitors oil pressure, flow rate, and temperature.

6. Explosion-Proof Controls

   TR VFD cuttings dryer control panel is made by stainless steel with Pressurized explosion proof. PLC-controlled speed regulation with multi-layer protection. ABB or Siemens VFDs. Schneider or Siemens electrical components.

Drill Cuttings Dryer Technical Specifications

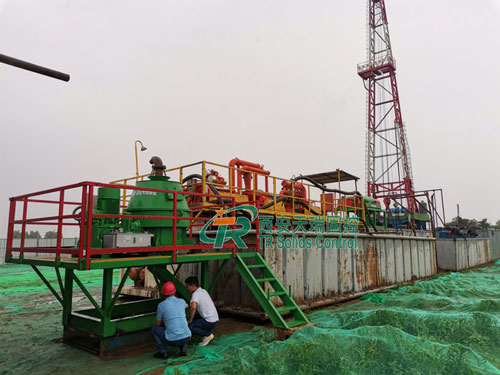

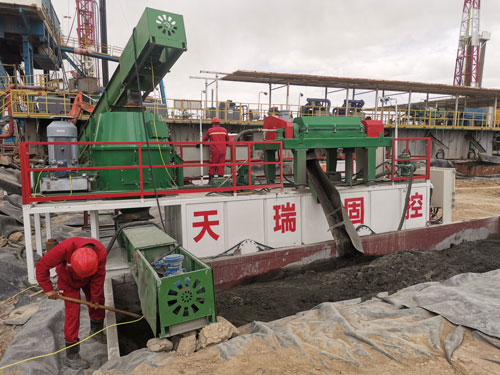

Cuttings Dryer Applications

Selection Guide

• Mud type

  OBM and SBM are the standard use case. WBM is compatible, but clay-heavy cuttings often need pre-treatment first.

• Throughput

  Size the dryer to the rig's peak cuttings rate. Undersizing creates a bottleneck during fast drilling.

• G-force

  350-420G covers most OBM and SBM applications. Higher G-force delivers drier solids at higher power draw.

• Screen aperture

  Finer screens give drier solids but cut throughput. Select a screen that meets the OOC target without restricting feed rate.

• Installation requirements

  Verify power supply (voltage, frequency, hazardous-area class), available floor space, and connections to upstream and downstream equipment before specifying a model.

FAQ

Q: What oil-on-cuttings (OOC) level can the dryer achieve?

A: 3-8% residual oil by weight on retort. Full G-force with a fine screen delivers results at the low end of that range.

Q: What does routine maintenance involve?

A: Daily: VFD display readings, lube oil level, air knife pressure. Under 10 minutes. Every 200 operating hours: screen aperture inspection. Monthly: scraper clearance and wear measurement. Oil change at 2,000 hours. Bearings are sealed units — no field greasing required.

Q: How quickly can a unit be delivered?

A: Standard-configuration units ship in 6-8 weeks. Non-standard voltage, hazardous-area rating, or custom integration adds 2-4 weeks. Wear parts and screens ship from warehouse stock.

Q: What site preparation is needed before installation?

A: Level concrete pad rated for the unit's operating weight plus dynamic load. Power supply matched to VFD input specs, confirmed at order. 1.5 m minimum clearance on all sides for service access.

Q: Is installation support and operator training available?

A: Yes. Commissioning supervision and full turnkey installation available. Operator training covers startup, shutdown, daily inspection, screen replacement, and VFD alarm troubleshooting.
