Mud Shale Shaker

Introduction of Drilling Mud Shale Shaker

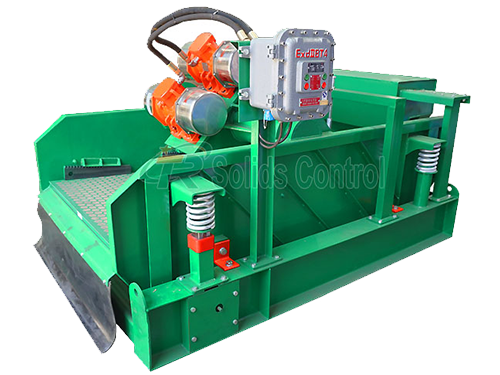

TR mud shale shaker is the primary core equipment in drilling solids control system. As widely used linear motion shale shaker, it undertakes the primary solid-liquid separation work for drilling mud. By efficient vibrating screening, it removes large solid particles from recycled mud, maintains stable mud performance, and effectively reduces drilling cost for oilfield projects.

Adopting advanced dual-motor synchronous linear motion technology, our oilfield shaker provides strong and even exciting force. The optimized box structure and high-strength material greatly improve overall stability and service life under continuous heavy-duty working conditions. This mud shale shaker perfectly matches various drilling mud recycling working conditions, and is widely applied in onshore oil drilling, geological exploration and HDD engineering.

Advantage of TR Linear Shale Shaker:

• Vibration strength can be adjusted

• Vibration track uniform

• Screen options more choice

• Vibrating Strength 7.5G

Our linear motion shakers are also designed to accept Brandt and Derrick compatible screens, providing excellent interchangeability and reducing inventory complexity for our customers.

TR Solids Control classifies its mud shale shakers based on vibration locus:

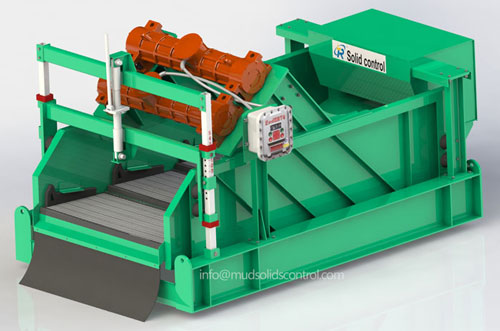

• Linear Motion Shale Shaker – Ideal for standard solids control with predictable, straight-line conveyance.

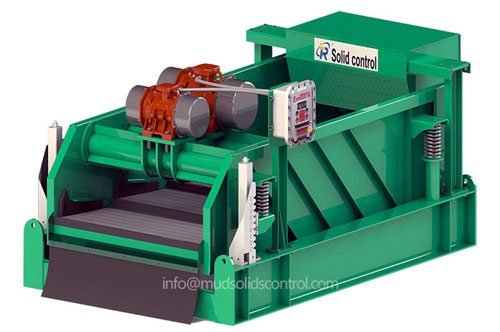

• Balanced Elliptical Motion Shale Shaker – Provides enhanced cuttings conveyance and reduced screen blinding.

Different models are named according to processing capacity, deck size, and motion type, allowing you to select the optimal shaker for your rig's flow rate and mud system.

Working Principle

When the mud shale shaker works, two vibrating motors generate reverse synchronous excitation force. Under the combined force, the screen body performs stable linear reciprocating motion. Drilling mud flows onto the shaker screen surface, liquid mud passes through screen meshes and flows back to mud tank for recycling. Solid cuttings are pushed forward along the screen surface and discharged outside the equipment.

This efficient separation process ensures continuous mud purification in the whole solids control loop. The shale shaker effectively controls solid content in mud, guarantees subsequent purification equipment working efficiency, and extends service life of drilling mud.

Mud Shaker Technical Parameters

Application Scope

This mud shale shaker is extensively applied in oil and gas drilling engineering, geological drilling, trenchless horizontal directional drilling, mud recycling project and other drilling fields. As the front-end equipment of complete solids control system, it cooperates with desander, desilter, centrifuge and other equipment to realize full-process drilling waste purification and mud recycling.

TR Solids Control has been specialized in manufacturing high quality shale shaker and related solids control equipment for many years. Our mud shale shaker with reliable quality, excellent performance and cost-effective advantage has been exported to many overseas oilfield regions, and gains stable reputation from global customers. We support customized parameter adjustment and whole set mud recycling system solution according to actual site requirements.
