500 PMD Shaker Screen

TR supplies replacement Derrick FLC 500 PMD shaker screens with pyramid profile design, providing increased open area and improved solids separation for drilling mud systems.

Product PDF Product Catalogue Inquiry

Description

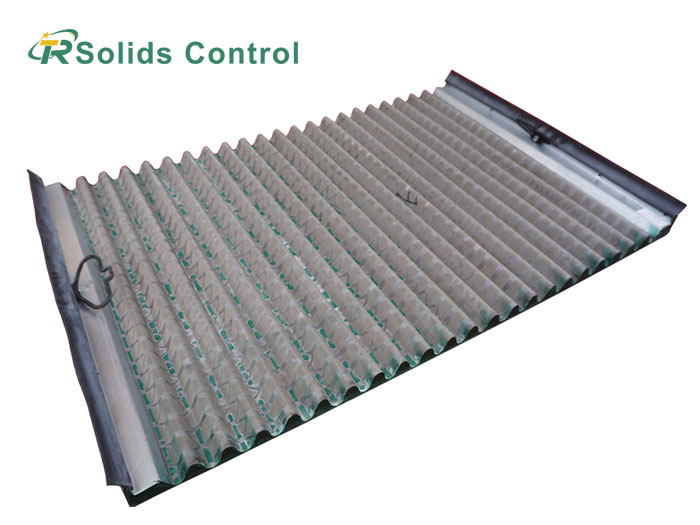

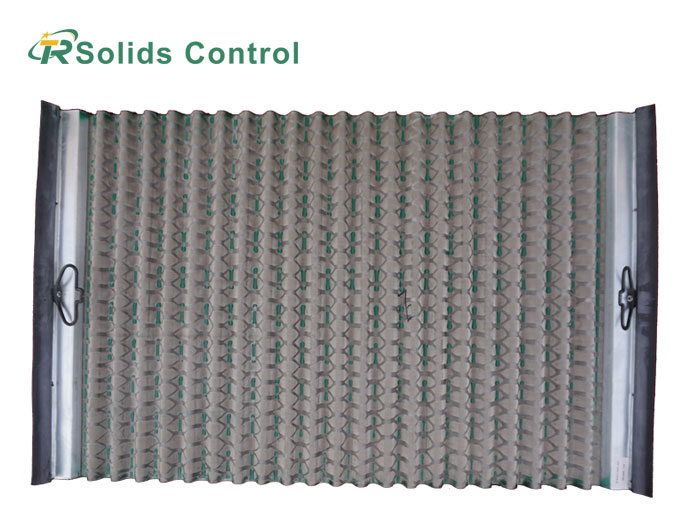

FLC500 PMD Shaker Screen

The FLC500 PMD Shaker Screen is a replacement screen for Derrick FLC503 shale shakers. Each screen uses PMD (pyramid) construction with 2–3 layers of stainless steel wire cloth bonded to a rigid hooked edge frame. Different mesh densities are layered in sequence to maximize effective screening area while maintaining structural strength under operating loads. Backing plate opening size is matched to each mesh count to get the largest open area without compromising screen integrity.

Oilfield shaker screens fall into four main categories: framed screens (corrugated and flat), rigid hooked edge screens (corrugated and flat), flexible hooked edge screens, and slot screens. The FLC500 PMD is a rigid hooked edge type.

FLC500 PMD Shaker Screen Parameters

Parameter	Specification
Name	Derrick FLC500 PMD Shaker Screen
Screen Type	Rigid Hooked Edge
Mesh Material	Stainless Steel 304 or 316
Mesh Layers	2–3 Layers
Mesh Size	20–400 Mesh
Screen Dimension	1050×697mm
Weight	7.3kg

Advantages

Wear-resistant wire cloth extends screen service life
PMD pyramid construction increases non-blanked screening area
Higher flow rate compared to flat screen equivalents
Fine solids removal across the full mesh range
Resists blinding under continuous drilling fluid exposure
Quick installation and removal on rigid hooked edge frames

About TR Solids Control

Xi'an TR Solids Control manufactures and exports Tianrui-brand FLC500 PMD shaker screens compatible with Derrick FLC503 shale shakers. All products meet US API standards and are API-certified, ensuring reliable fit and consistent performance across field operations.
