Desilter Cyclone and Elbow Assembly for Dome Mud Cleaner

In oil drilling, geological exploration, and horizontal directional drilling (HDD) projects, stable mud performance directly determines operational cost and efficiency. The dome-style mud cleaner, with its enclosed dome structure and multi-stage separation technology, has become the core piece of high-efficiency solids control equipment. The precise assembly of the desilter cyclone and its matching elbow is the critical link to achieve fine solids separation. TR Solids Control, with deep expertise in the solids control field, uses mature processes to manufacture desilter cyclone and elbow assemblies that perfectly fit dome mud cleaners, providing reliable support for high-efficiency mud reclamation.

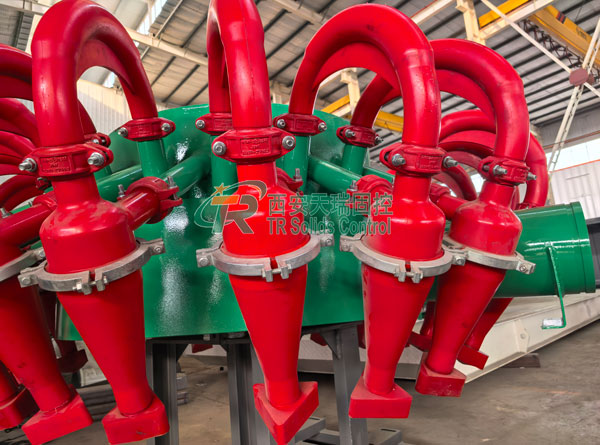

As the core execution unit of centrifugal separation, the mud cyclone's material and connection method significantly affect equipment life and operational continuity. The desilter cyclone made of high-wear-resistant polyurethane features smooth, wear-resistant inner wall that resists long-term erosion from drill cuttings and sand particles, far outlasting traditional rubber or metal cyclones. In addition, the clamp-type connection enables quick installation and disassembly, greatly improving maintenance efficiency. The matching cyclone elbow is also made of polyurethane material, offering not only wear resistance and impact resistance but also corrosion resistance, low-temperature tolerance, and non-stick properties. It performs reliably in slurry transport, grouting backfill, and other demanding conditions.

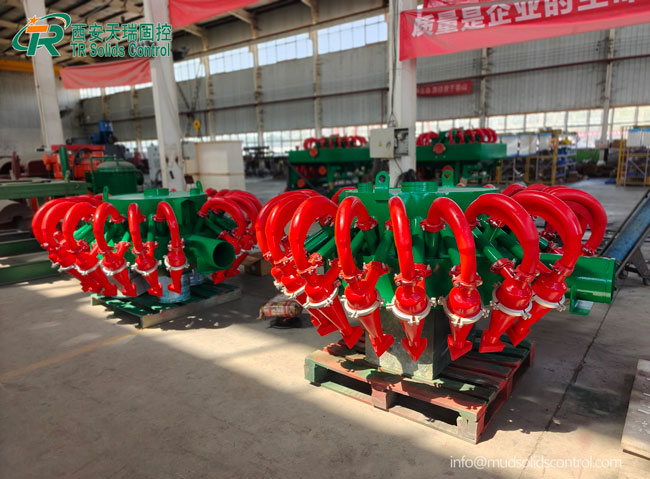

After precise assembly of the desilter cyclone and elbow, the flow path is smooth with no dead corners, ensuring stable and efficient centrifugal separation of the mud cyclone, low pressure drop loss, and higher separation accuracy.

When the desilter cyclone and elbow assembly is integrated into the dome-style mud cleaner, the equipment can exert complete cascade separation efficiency. Drilling mud is pumped into the dome cabin, and the shale shaker first intercepts coarse particles larger than 74μm; then, the mud cyclone group uses centrifugal force field to perform secondary removal of fine solids of 5-74μm, with adjustable separation accuracy and removal rate of more than 90%. The purified mud returns to the circulation system, and the drill cuttings are centrally discharged through screw conveyor or sand discharge port. The entire process is sealed without splashing, and the operating environment is clean and controllable.

TR Solids Control has accumulated extensive experience in matching cyclone banks with mud cleaners, ensuring seamless integration with shale shakers, centrifuges, and other equipment to form the multi-stage solids control system. Whether for containerized or skid-mounted drilling platforms, the solution can be quickly adapted.

Choosing the wear-resistant polyurethane desilter cyclone and elbow assembly from TR Solids Control means lower spare parts replacement frequency, shorter downtime for maintenance, and consistently stable mud performance recovery. For modern drilling operations pursuing cost reduction and efficiency improvement, this high-wear, easy-to-disassemble solids control solution is becoming an indispensable core component of the dome-style mud cleaner.
