Steel-Wood Rig Mat for Drilling Rig Foundations

TRGM Series Steel-Wood Rig Mats provide a modular, reusable foundation for land drilling rigs and wellsite equipment, reducing the need for permanent concrete foundations.

These mats are also known as drilling rig mats, drilling rig pads, or steel-wood foundations. Each mat combines a steel frame with timber planks. The steel frame provides the structural support, while the timber planks form the working surface and distribute heavy equipment loads across the required area.

The mats are arranged beneath the rig and supporting equipment to form the working platform, then dismantled and relocated to new wellsites once drilling is complete.

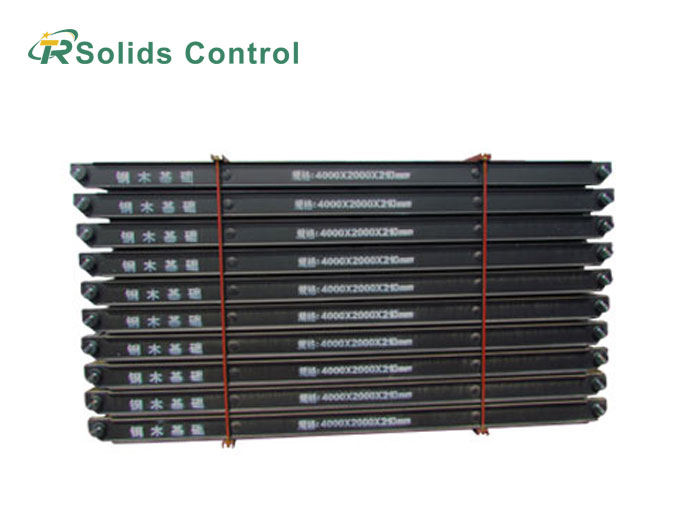

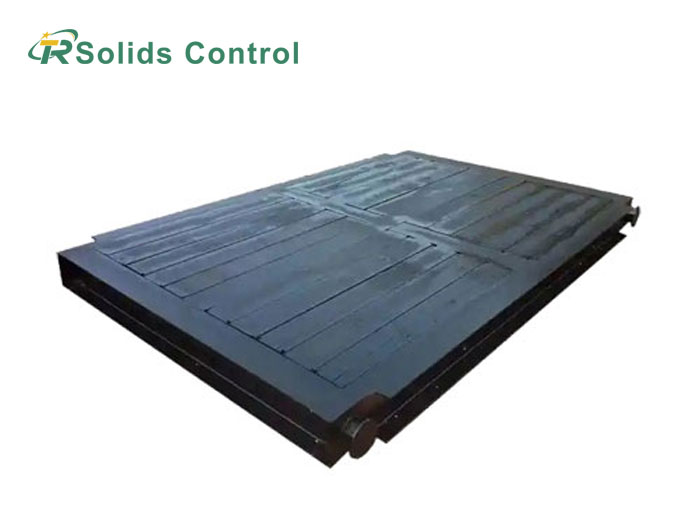

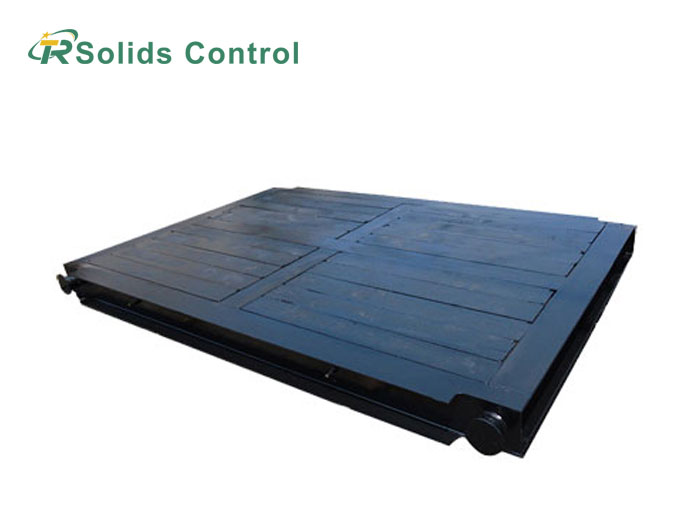

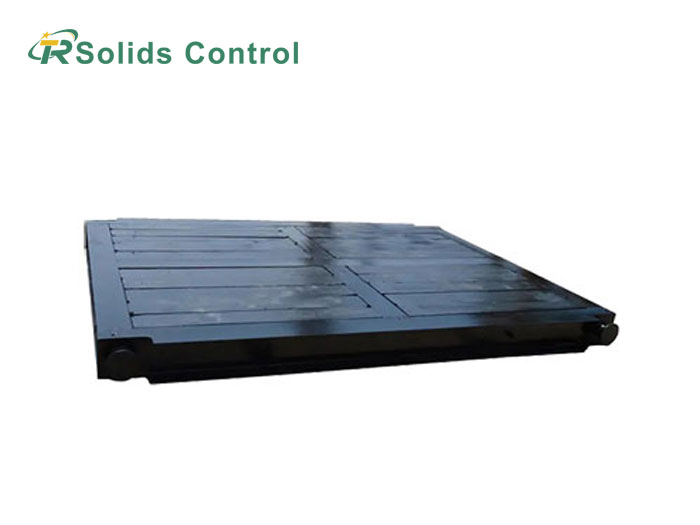

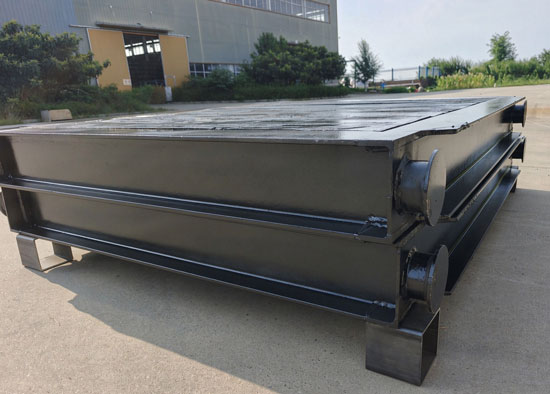

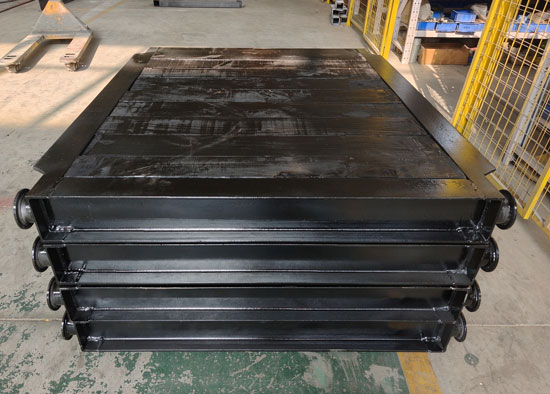

TR Rig Mat for oilfield drilling TR Steel Wood Rig-Mat for ZJ20 to ZJ70

Advantages

High strength and load capacity: Supports drilling rigs and heavy wellsite equipment.
Fast installation: No permanent concrete foundation is required.
Flexible layout: Different mat sizes can be combined to match the required foundation footprint.
Water and corrosion resistance: Suitable for outdoor drilling and wet working areas.
Vibration dampening and long service life: Steel and timber construction helps absorb equipment vibration during drilling.

Rig Mat Specifications

Model	Length（mm）	Width（mm）	Height（mm）
TRGM204	2000	2000	200
TRGM205	2500	2000	200
TRGM203	3000	1000	200
TRGM206	3000	2000	200
TRGM209	3000	3000	200
TRGM208	4000	2000	200
TRGM210	4000	2500	200
TRGM212	4000	3000	200
TRGM216	4000	4000	200
TRGM215	5000	3000	200

Applications

TRGM steel-wood rig mats provide temporary foundations for land drilling rigs, rig substructures, and wellsite equipment. Typical equipment includes derrick bases, mud pumps, mud tanks, purification tanks, power generation units, fuel tanks, and water tanks.

The TRGM series is compatible with ZJ20, ZJ30, ZJ40, ZJ50, ZJ70 and other land rigs for drilling depths ranging from 1,000 m to 7,000 m.

They are used in plains, plateaus, deserts, hilly terrain, beaches, and swamp zones.

Selection Guide

Mat selection depends on the rig model, equipment layout, required area, and ground conditions. Different TRGM sizes can be combined when needed.

Send the rig model and foundation dimensions to TR for selection and arrangement confirmation.

FAQ

What load information is required for a rig mat?
Provide the rig and equipment loads together with the foundation layout. TR can review the requirements and confirm the suitable mat arrangement.
Can different TRGM sizes be used together?
Yes. Different sizes can be combined to match the required layout.
