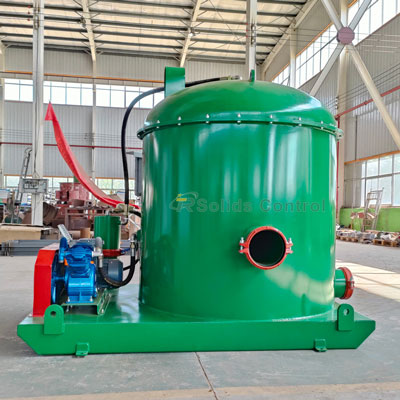

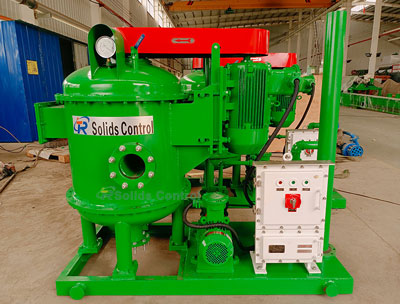

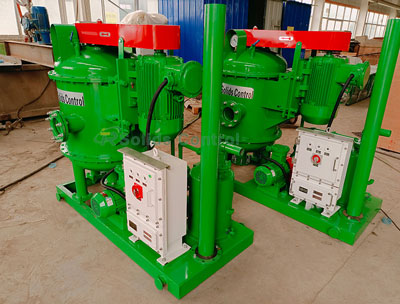

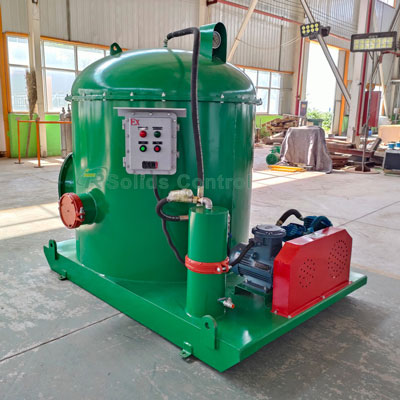

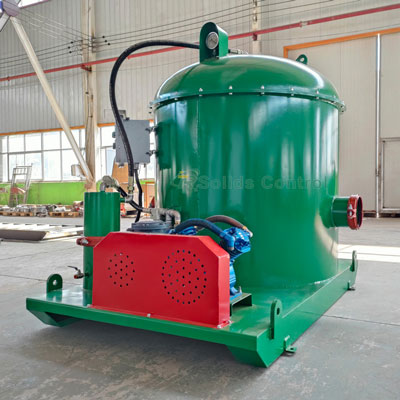

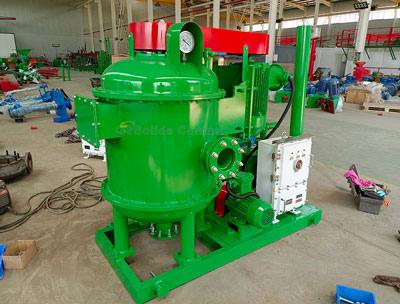

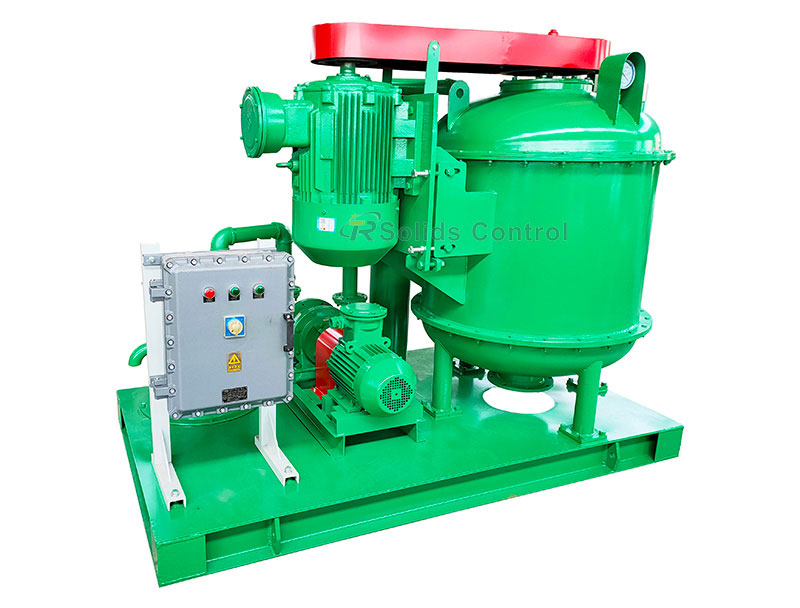

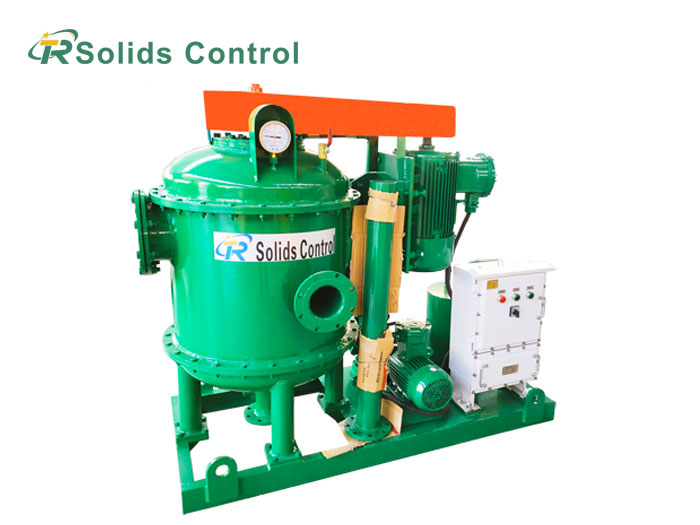

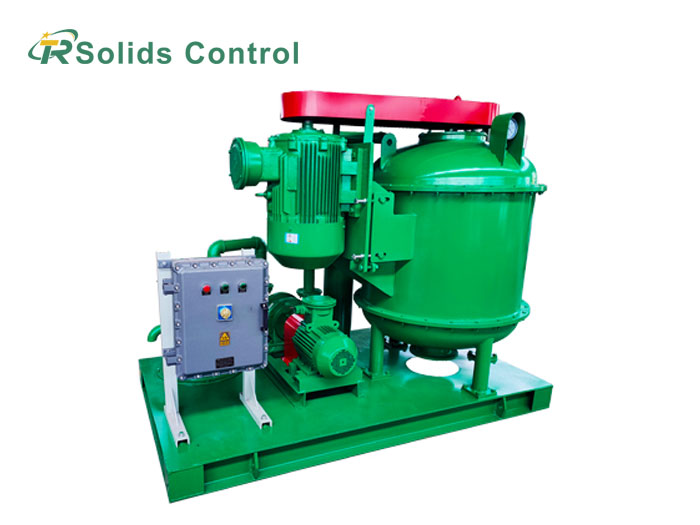

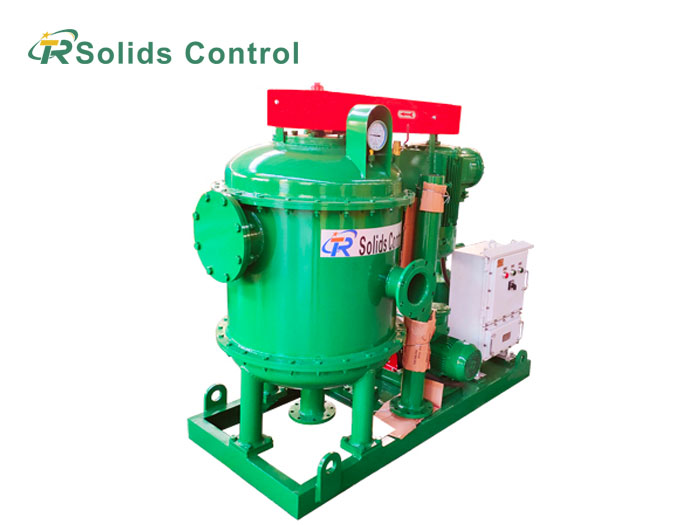

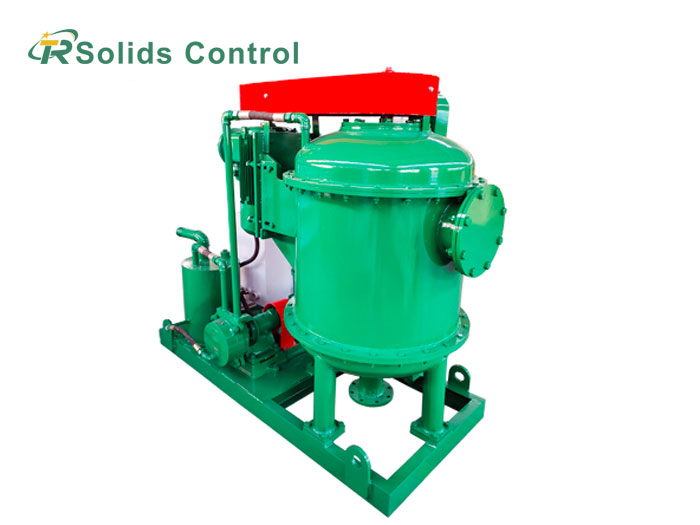

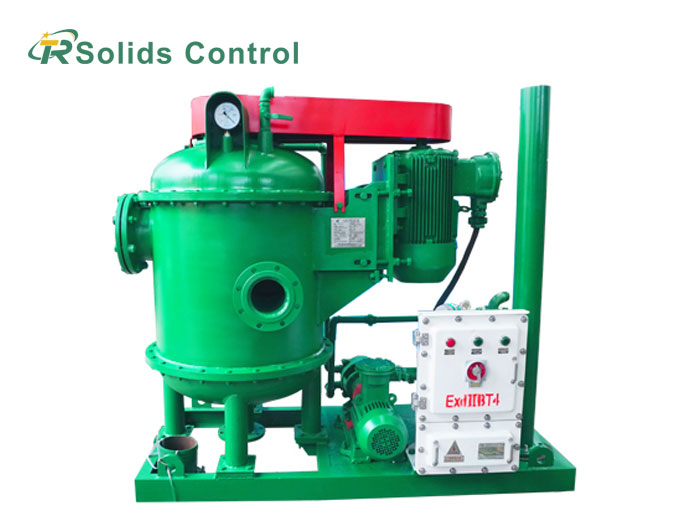

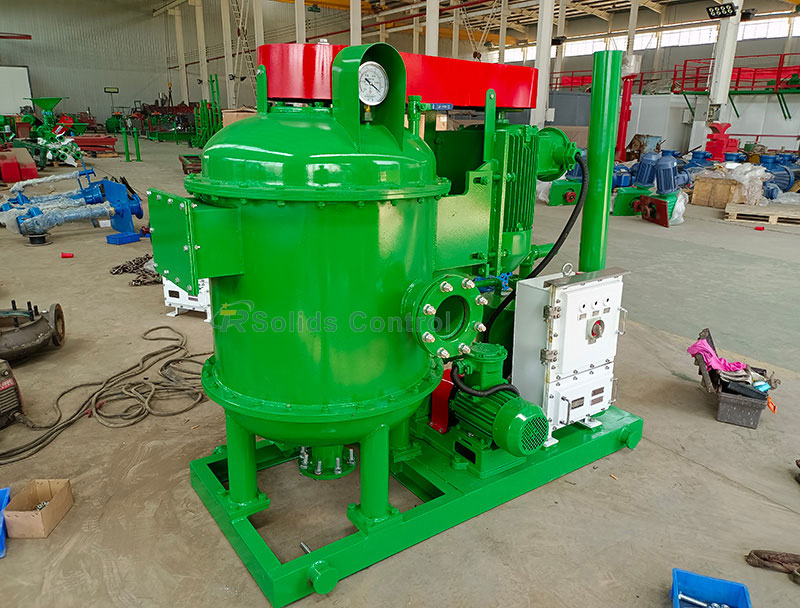

Vacuum Degasser

The Vacuum Degasser is a type of drilling fluid degasser for removing entrained gas from gas-cut mud. Gas in the mud can affect mud density and fluid properties. Removing the gas restores mud density and stabilizes mud properties.

The TRZCQ series features a vacuum chamber, rotating impeller, and water-ring vacuum pump. Its self-priming design eliminates the need for a separate feed pump. When degassing is not required, the unit can also operate as a high-power mud agitator for mud mixing and circulation systems.

TR supplies four models: TRZCQ240, TRZCQ270, TRZCQ300, and TRZCQ360, with processing capacities from 240 to 360 m³/h.

Features of Mud Vacuum Degasser

• High degassing efficiency: Removes entrained gas with a rated efficiency of ≥95%.

• Self-priming design: No separate feed pump required.

• High-power agitation: Can also be used as a mud agitator.

• Compact design: Small footprint for easy installation, startup, and maintenance.

• Corrosion protection: Reduces corrosion-related repair and maintenance costs.

• Optional liquid-level monitoring: Infrared monitoring enables automatic level control.

• Electrical components: Schneider or Siemens components are available.

Working Principle

The water-ring vacuum pump creates a negative-pressure environment inside the degasser chamber. The pressure difference between the chamber and the atmosphere draws gas-cut drilling fluid into the chamber.

Inside the chamber, the rotating impeller throws the incoming mud outward against the chamber walls, spreading the fluid over the walls. Under the vacuum, entrained gas is released from the mud and drawn out through the vacuum system. The degassed drilling fluid is then discharged back into the mud circulation system.

Drilling Vacuum Degasser Technical Parameters

Applications

The Vacuum Degasser is used to treat gas-cut mud in oil & gas drilling and drilling fluid circulation systems.

• Oil & Gas Drilling: Treats gas-cut mud during drilling operations.

• Gas-Bearing Formations: Used when formation gas enters the drilling fluid during drilling.

The Vacuum Degasser is typically installed downstream of the shale shaker and upstream of the mud cleaner, centrifuge, or other downstream solids control equipment.

Vacuum Degasser Selection

Select the model primarily according to the required drilling fluid flow rate. The TRZCQ series covers processing capacities from 240 to 360 m³/h. Installation space, electrical supply, maintenance access, and any additional agitation duty should also be considered before ordering. An infrared liquid-level monitoring system can be specified when automatic control is required.

TR Vacuum Degasser Manufacturer

TR Solids Control manufactures Vacuum Degassers for drilling fluid treatment and complete solids control systems. Production is carried out at the Xi'an facility under an API- and ISO 9001-certified quality system.

TR provides model selection, manufacturing, testing, delivery, and after-sales support for drilling fluid treatment equipment.
