Nested Water Tank

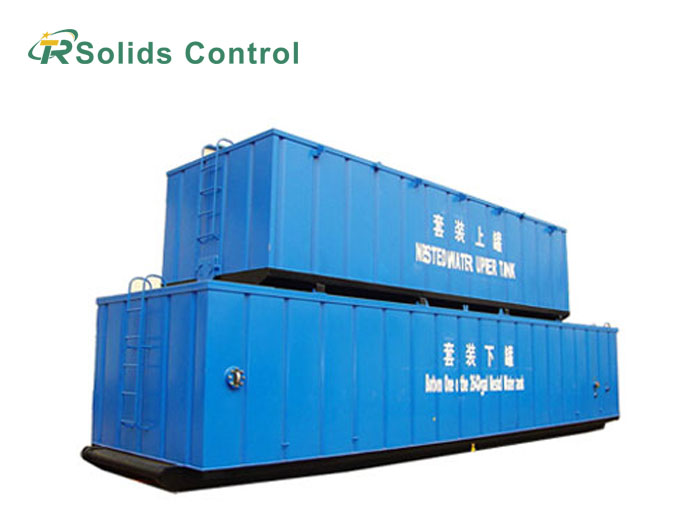

TRSG Nested Water Tank is a two-tank water storage and supply unit for oilfield drilling sites. A smaller upper tank is mounted on a larger lower tank during operation. For transport, the upper tank is nested inside the lower tank to reduce transport volume.

The tank can be supplied with an explosion-proof water pump, electrical control cabinet, switches, lighting, insulation, or heating equipment for wellsite use.

Advantages of Set Water Tank

1. Space-saving transport. The upper tank nests inside the lower tank to reduce transport volume.

2. Corrugated tank body. The corrugated structure provides strong load-bearing capacity.

3. Automatic water supply. A water pump transfers water from the lower tank to the upper tank during operation.

4. Non-toxic, corrosion-resistant internal lining. Protects the tank interior during water storage.

Technical Parameters

Working Principle

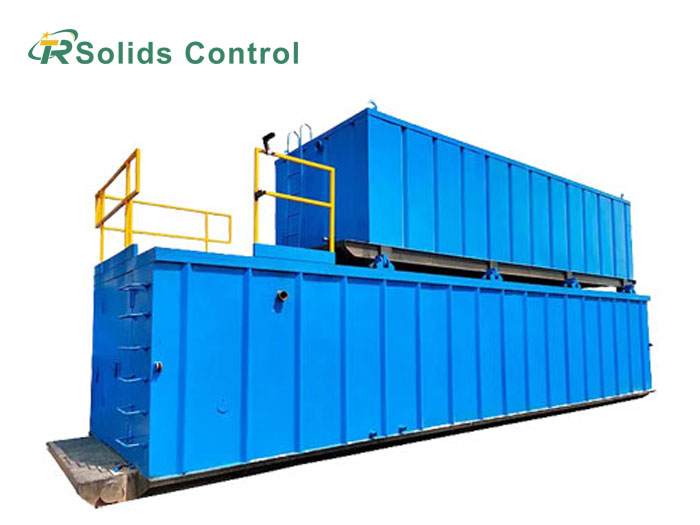

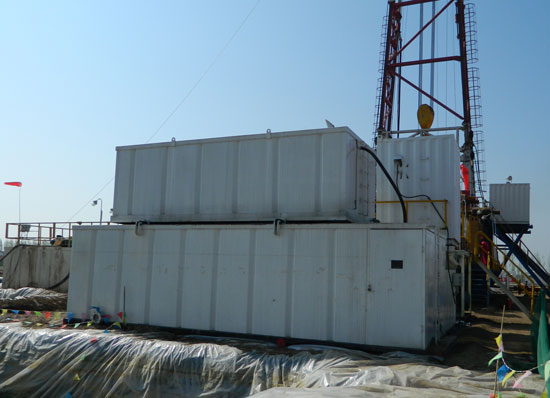

During operation, the smaller upper tank is mounted on the larger lower tank through a hinged bracket assembly. The lower tank stores reserve water, while its water pump transfers water to the upper tank. From its elevated position, the upper tank supplies water to the downstream piping.

For transport, the tanks are drained and the hinged bracket assembly is folded down. The upper tank is then placed inside the lower tank.

Applications

• Oilfield drilling water supply

• Domestic water supply

• Cooling water

• Industrial water storage and supply

FAQ

How is the nested water tank transported?

Before transport, the tanks are drained and the hinged bracket assembly is folded down. The upper tank is then nested inside the lower tank to reduce transport volume.
