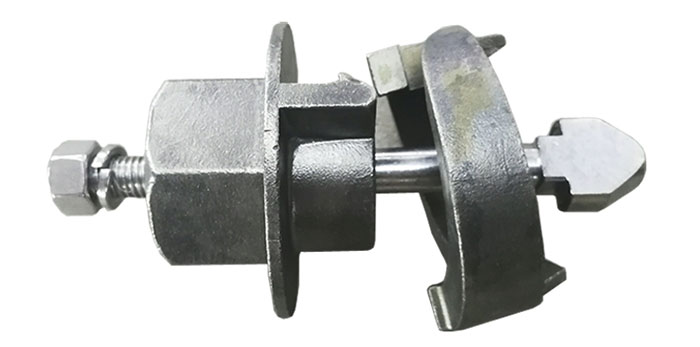

9744-00 Ramp-lock Assy

The 9744-00 Ramp-lock Assembly is a screen tensioning system for Derrick FLC2000 shale shakers, designed for fast, reliable screen panel installation. It replaces traditional wedge-style clamping methods, cutting screen change time to under one minute per panel.

How It Works

The 9744-00 Ramp-lock Assy uses a ramp-and-finger design that allows operators to:

1. Position screen panels in the shaker frame

2. Engage the tensioning bolts with a simple downward motion

3. Rotate the bolts 1/4 to 1/2 turn to achieve full tension

The ramp mechanism converts rotational motion to linear clamping force, securing the screen panel firmly in place.

Advantages

1. Single-side Operation: No need to access both sides of the shaker frame during screen changes

2. Fast Installation: Screen changes completed in under one minute per panel without tools

3. Consistent Tension: Maintains uniform pressure across screen edges

4. Vibration Resistance: Keeps screens fastened during high-G operation up to 7.3 G

5. Extended Screen Life: Uniform tensioning prevents premature wear from uneven loading

About TR Solids Control

Xi'an TR Solids Control manufactures Tianrui-brand replacement parts compatible with Derrick shale shakers and mud cleaners. All components meet US API standards and are API-certified, ensuring reliable fit and consistent performance across field operations.
