Horizontal Flare Ignition Device

The Horizontal Flare Ignition Device uses diesel fuel to ignite combustible gas released from a mud gas separator during oil and gas drilling operations.

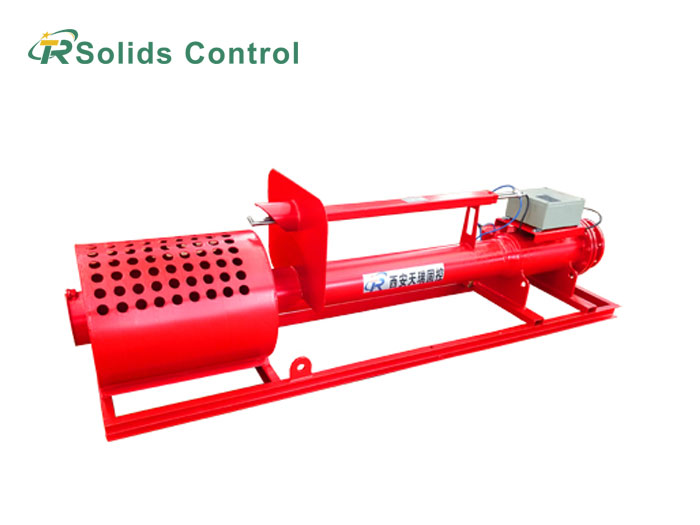

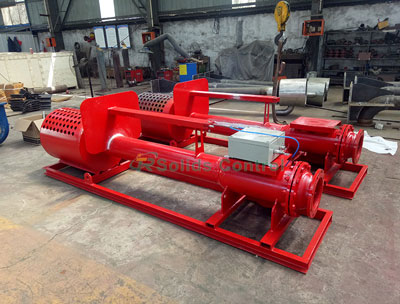

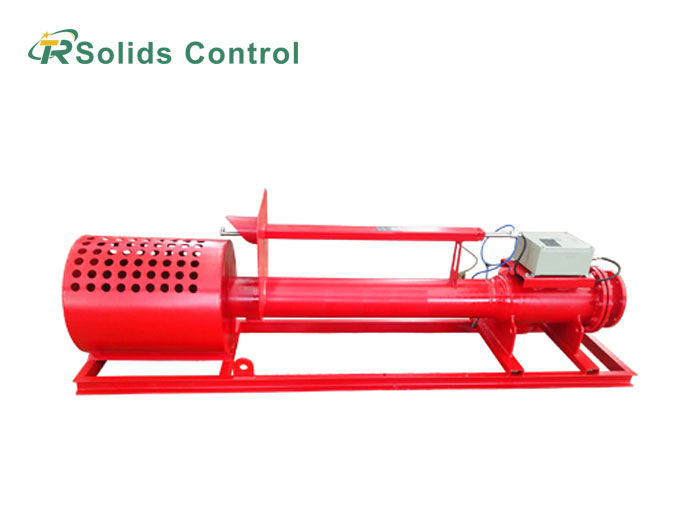

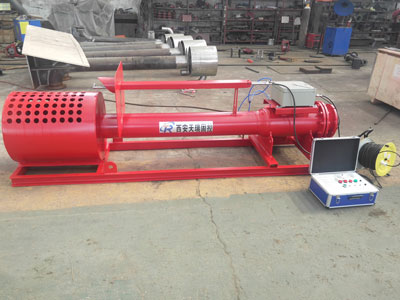

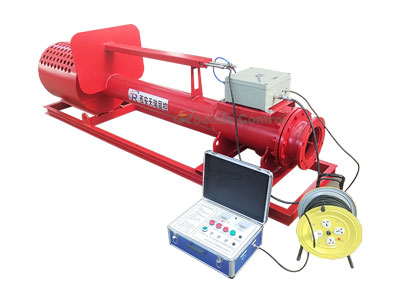

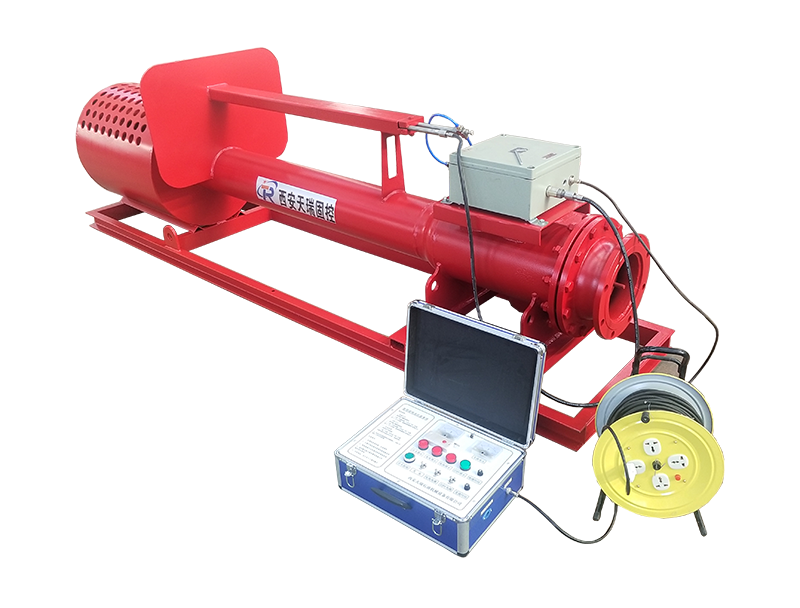

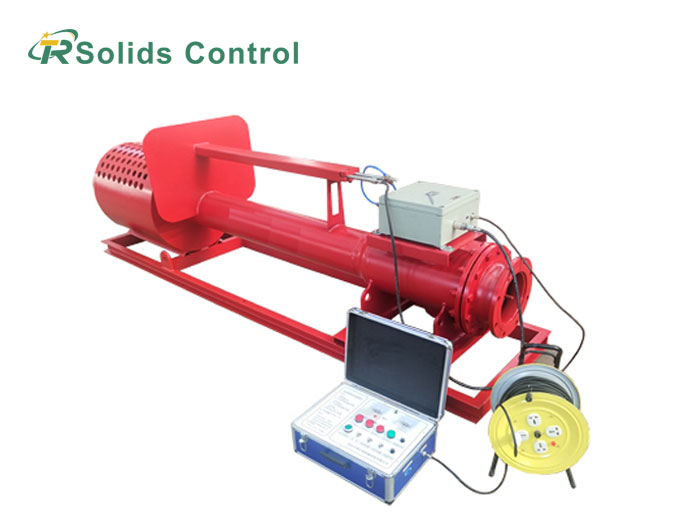

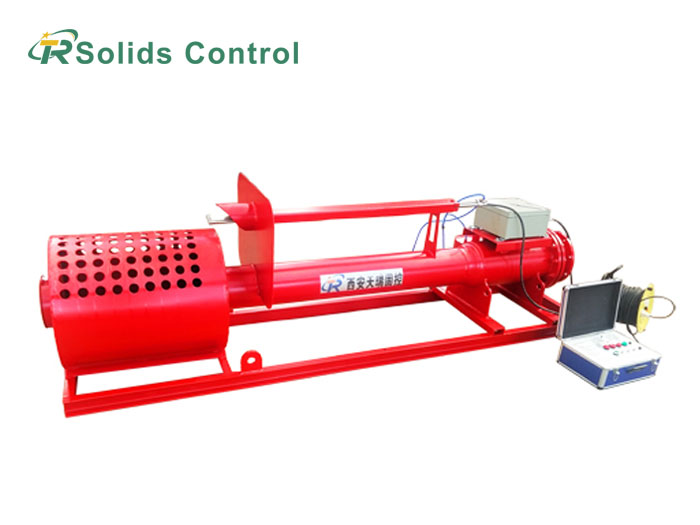

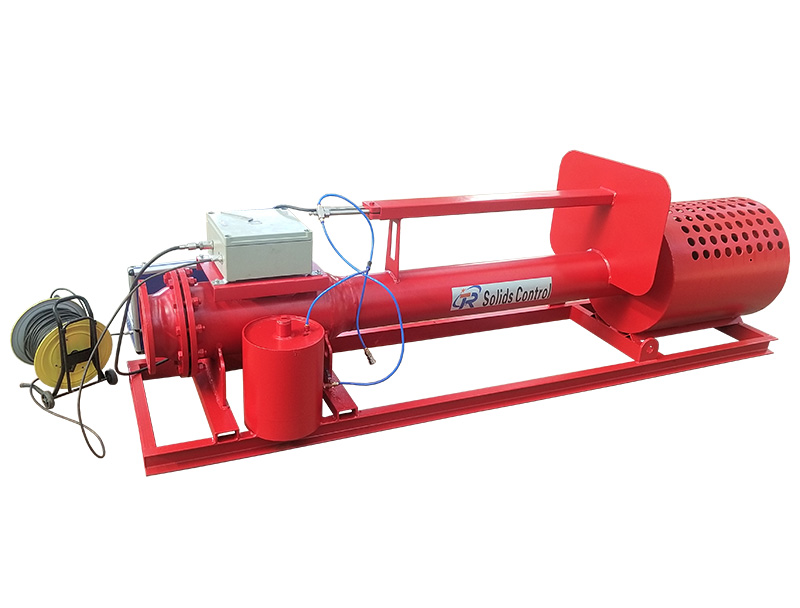

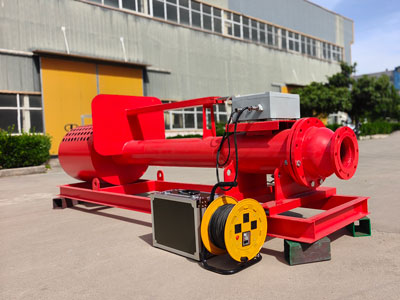

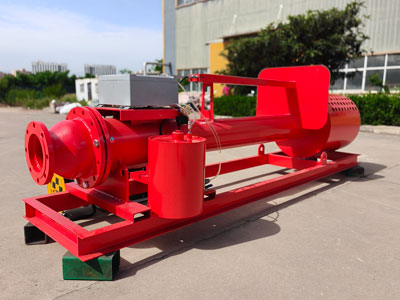

The unit includes a horizontal flare assembly, diesel tank, fixed control box, and portable control box. A 50 m 5-core armoured cable connects the two control boxes. The fixed control box is used for local operation. The portable control box allows operators to activate electronic ignition from a safe location.

Advatages of Drilling Flare Ignition Device

• Manual ignition and remote electronic ignition, with an effective remote range of 100–150 m.

• High-frequency electronic ignition for dependable flare startup.

• AC/DC power switching allows ignition to continue when battery power is insufficient. The TRYPDC-20/3T also supports solar charging.

• PLC control manages the ignition sequence.

• The ignition control system uses imported electrical components.

• A 304 stainless steel rain cover protects the upper ignition assembly during outdoor operation.

Horizontal Flare Igniter Technical parameters

Working Principle

Gas separated from the drilling fluid flows from the mud gas separator to the flare through the gas discharge line. Once ignition is activated, the diesel ignition unit generates a flame to ignite the combustible gas.

Product Application

• Oil & Gas Drilling

  The device works with a mud gas separator at drilling sites to ignite combustible gas released during gas-liquid separation.

• Refineries and Gas Transmission Facilities

  The horizontal design also suits flare systems used in refineries and gas transmission facilities.

Certifications & Testing

ATEX-compliant configurations are available for installation in hazardous areas. Each unit is assembled and functionally tested before shipment.
