Mission Pump Casing

The Casing of Mission Magnum pumps is mainly used for fluid guidance, impeller support and stable pump operation, high wear resistance, long service life and low maintenance costs.

Product PDF Product Catalogue Inquiry

Decription

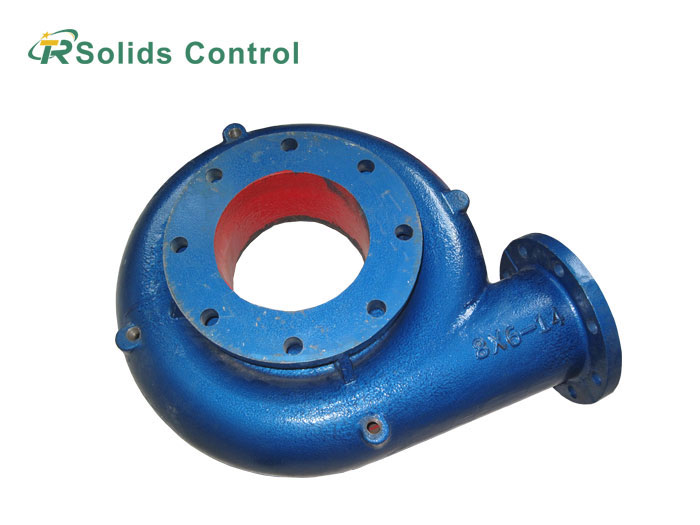

Pump Casing Introduction

The volute Casing is one of the key components of Centrifugal Pump, mainly responsible for guiding fluid around the impeller, providing support, and ensuring stable operation of the pump.

With its unique concentric casing structure, front wear plate and wide impeller design, the centrifugal pump features excellent wear resistance, long service life and low maintenance costs.

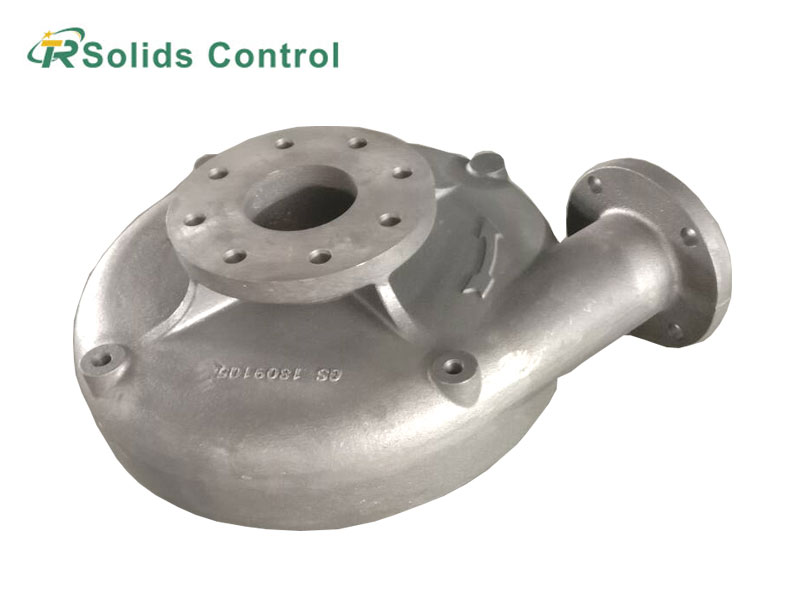

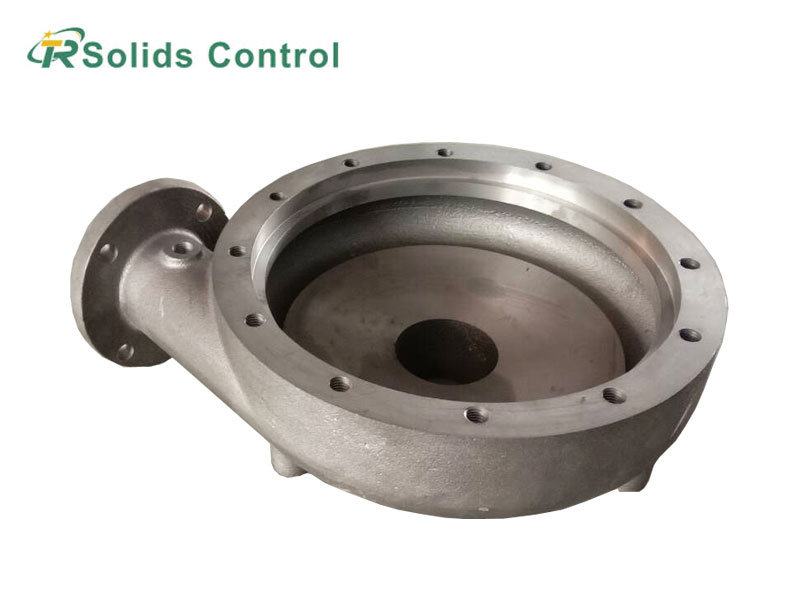

Casing(Housing assembly）for Mission Pump

MAGNUM CENTRIFUGAL Centrifugal Pump Casing Part list

Number	Mision Casing Part No.	Description	Material
1	19203-01-30A	Casing 3x2x13	Alloy Cast Iron
2	19205-01-30A	Casing 4x3x13	Alloy Cast Iron
3	19222-01-30A	Casing 5x4x14	Alloy Cast Iron
4	19122-01-30A	Casing 6x5x11	Alloy Cast Iron
5	19123-01-30A	Casing 6x5x14	Alloy Cast Iron
6	19763-01-30A	Casing 8x6x11	Alloy Cast Iron
7	19117-01-30A	Casing 8x6x14	Alloy Cast Iron

2500 SUPREME Centrifugal Pump Casing Parts List

Number	Mision Casing Part No.	Description	Material
1	H19203-01-30A	Casing 3x2x13	Alloy Cast Iron
2	H19205-01-30A	Casing 4x3x13,w/wear pad	Alloy Cast Iron
3	H19222-01-30A	Casing 5x4x14,w/wear pad	Alloy Cast Iron
4	H19122-01-30A	Casing 6x5x11,w/wear pad	Alloy Cast Iron
5	H19123-01-30A	Casing 6x5x14,w/wear pad	Alloy Cast Iron
6	H19763-01-30A	Casing 8x6x11,w/wear pad	Alloy Cast Iron
7	H19117-01-30A	Casing 8x6x14,w/wear pad	Alloy Cast Iron

Advantages of Pump Casing

Adopts heavy-duty concentric casing structure with replaceable gaskets, delivering significantly longer service life than standard volute designs. The concentric structure greatly reduces wear, and maintenance costs are drastically lowered compared to full casing replacement.
The wide semi-open impeller generates low axial thrust for optimized casing performance. Solid particles are directed to the rear of the impeller by its semi-open design, extending the service life of mechanical seals and lubrication chambers.
Built-in casing gaskets provide enhanced protection.
Replaceable pump casing cover, secured with double sliding housing bolts.
Optional casings for single / dual mechanical seal applications, configurable with flush piping.
Long-life, maintenance-free mechanical seal rings.

Xi'an TR Solids Control utilizes advanced technology and mechanized production to manufacture Tianrui-brand replacement parts for Mission MAGNUM CENTRIFUGAL and 2500 SUPREME sand pumps. Our Centrifugal Pump parts are fully interchangeable with original equipment, comparable in appearance and quality, compliant with API standards and certified with API certificates.
