12048-00 Tensioning Bolt

12048-00 Tensioning Bolt

  • TR manufactures replacement Derrick FLC2000 tensioning bolts 12048-00 for shale shakers and compatible mud cleaner units.
  • Description

The 12048-00 Tensioning Bolt  is part of the Rapid Change Draw Bolt Assembly used on Derrick FLC2000 shale shakers.

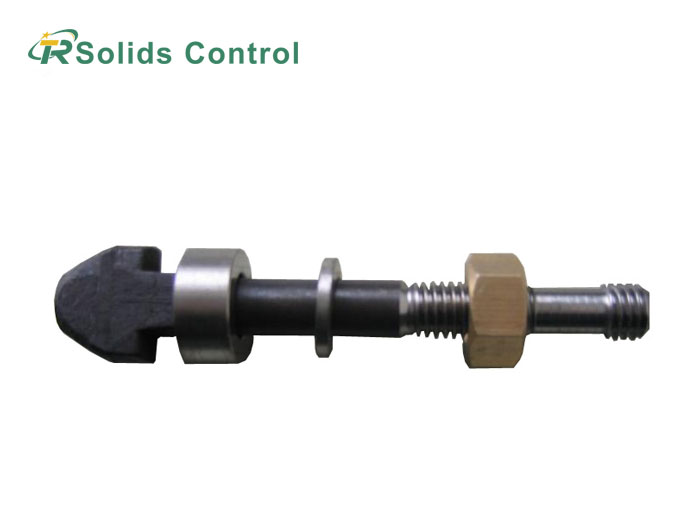

It works with a draw bar to hold the screen panel firmly against the screen deck. The assembly consists of a stainless steel draw bolt, brass nut, lock washer and extended washer.

The rapid-change design makes screen installation and removal easier during routine shaker maintenance. TR Solids Control manufactures replacement 12048-00 assemblies for Derrick shale shakers.

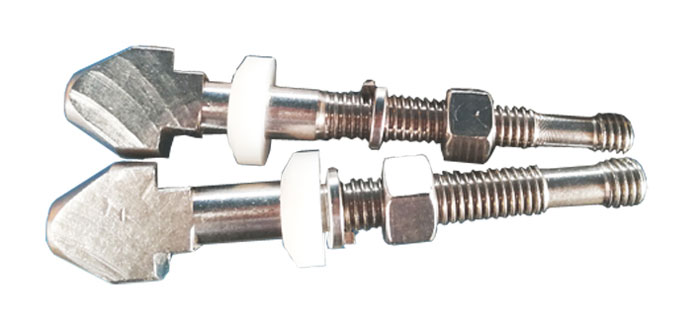

12048-00 Tensioning Assembly Replacement Parts for FLC 2000 Shale Shaker

Structure and Working Principle

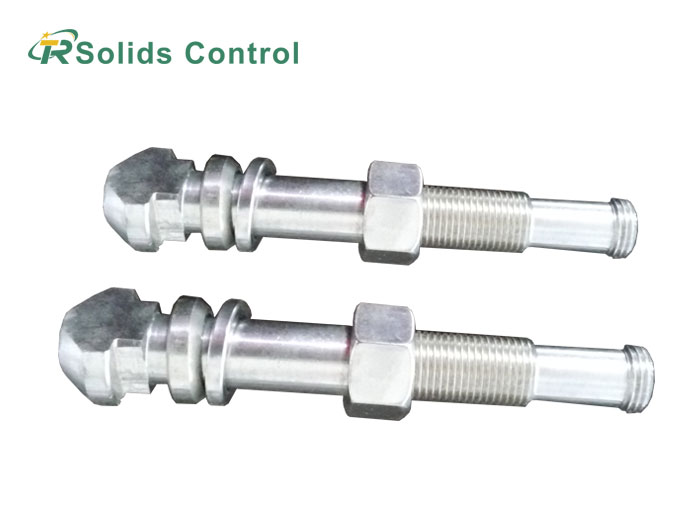

The draw bolt passes through the sidewall of the screen frame. Its T-shaped head fits through the elongated slot in the draw bar. The head is then rotated 90° to lock it in place.

The nut is tightened from outside the screen frame. This pulls the draw bar against the screen panel. The draw bar engages the hook strip along the panel's outer edge, holding the panel firmly against the screen deck.

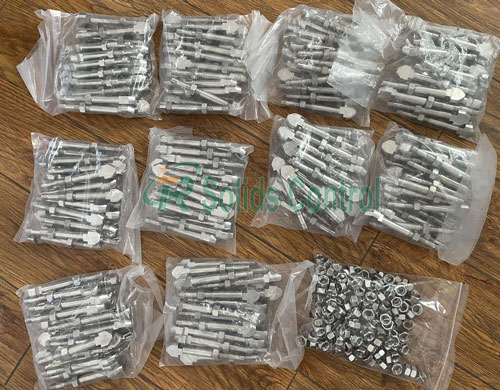

T-shaped tensioning bolt assembly FLC2000 replacement part

Applications and Compatibility

The 12048-00 Rapid Change Draw Bolt Assembly is used on:

  • Derrick FLC2000 3-panel shale shakers

  • Derrick FLC2000 4-panel shale shakers

Each screen panel requires eight draw bolt assemblies, with four on each side. A 3-panel FLC2000 uses 24 assemblies, while a 4-panel model uses 32. Actual quantities may vary if the shaker has been modified.

The FLC2000 can also use the 9744-00 Ramp-Lok Assembly. This is a different screen tensioning system from the 12048-00 Rapid Change Draw Bolt Assembly. Check the existing part number and tensioning arrangement before ordering.
