Shale Shaker Rubber Protector

Shale Shaker Rubber Protector

  • TR supplies 3660-02-30 channel protectors for Derrick FLC 2000 and 16848-10 bulkhead protectors for Hyperpool shale shakers. Check fit and request a quote.
  • Description

TR supplies two nitrile rubber protectors for Derrick shale shakers: the 3660-02-30 Channel Protector for FLC 2000 decks and the 16848-10 Bulkhead Protector for Hyperpool units.

Each part fits a specific position. Both are consumables. They take the rubbing that would otherwise reach the steel underneath, and they come off when the rubber has flattened, split, or worn through to the channel.

Some buyers also refer to these parts as shale shaker rubber strips.

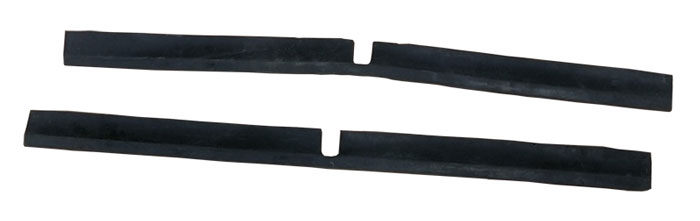

16848-10 Bulkhead Protector Single for FLC 2000 Shaker

Part numbers and fit

Part numberDescriptionFitsMaterialLength
3660-02-30Channel ProtectorDerrick FLC 2000, 3-panel and 4-panel decksNitrile (NBR)To be confirmed against original part
16848-10Bulkhead Protector, SingleDerrick Hyperpool 4-panel, Hyperpool mud cleaner, Hyperpool VENitrile (NBR)41 1/4 in

The two parts are not interchangeable. Each has a different design and installation position. Confirm the shaker model and deck configuration before ordering.

3660-02-30 Channel Protector

The channel protector runs the length of the screen support channel, the beam the screen frame rests on. It sits between the screen frame and the channel, taking the rubbing and contact that would otherwise reach the steel surface.

Wear may appear at the ends or around the panel joints. If the rubber wears through, the screen frame can make direct contact with the support channel, leading to wear on the metal parts.

The number of protectors required depends on the FLC 2000 deck configuration. Confirm whether the shaker has a 3-panel or 4-panel deck when requesting a replacement.

16848-10 Bulkhead Protector Single

The 16848-10 Bulkhead Protector Single fits the bulkhead of Derrick Hyperpool shale shaker equipment. The bulkhead is the transverse wall between deck sections, and the protector covers one side of this structure.

Hyperpool equipment is available in different configurations. Hyperpool variants differ here: the 4-panel, the triple unit, the dual unit with mud cleaner, and the VE all present the bulkhead differently, which is why the variant has to be confirmed before shipping.

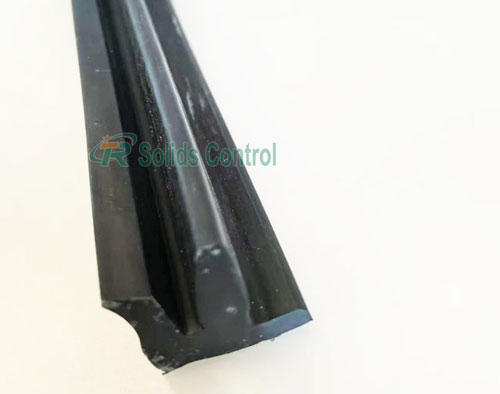

Derriok Side Support Rubber|TR Solids control equipment manufacturer

Product Features

  • Abrasion Protection: Protects shaker frames and support structures from wear caused by drilled solids and equipment movement.

  • Vibration Damping: Absorbs high-frequency vibration energy and reduces wear on metal parts.

  • Noise Reduction: Cushions metal contact points to reduce operating noise.

  • Secondary Sealing: Forms a secondary seal between the shaker frame and bulkhead to help prevent drilling fluid and solids from escaping.

  • Nitrile (NBR) Material: Provides wear-resistant rubber protection for shaker contact areas.

Ordering

Send the part number and the shaker model. If the number has worn off the old part, a photo of it in position, the panel count, and the deck width are enough to identify it. TR Solids Control manufactures replacement parts for Derrick shale shakers and holds API Q1 and ISO 9001 certification.

Request a quote: Include the part number, shaker model, panel count, and required quantity per deck.
