Hyperpol PMD Screen

TR Solids Control supplies API certified Hyperpool PMD replacement screens for mud shale shakers. Pyramid mesh design, stainless steel 304/316/316L, 40–400 mesh.

Product PDF Product Catalogue Inquiry

Description

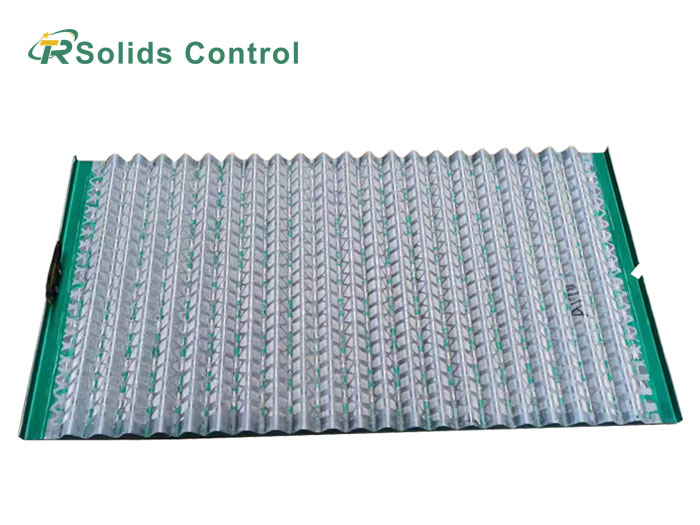

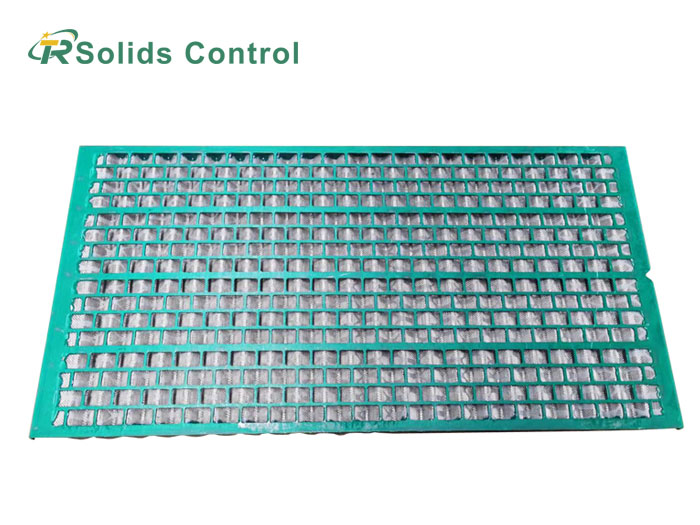

The Hyperpool PMD Screen is a replacement screen for Derrick Hyperpool 4-panel shale shakers. It features a pyramid (PMD) wave structure that increases effective screening area and improves drilling fluid handling capacity. All screens comply with API RP 13C for physical testing and labeling.

Hyperpool PMD shaker screens are manufactured in standard sizes compatible with Derrick Hyperpool series shale shakers.

Common materials include stainless steel 304, 316, or 316L mesh with perforated steel backing.

Typical API RP 13C mesh ranges from API 20 to API 325 depending on drilling requirements.

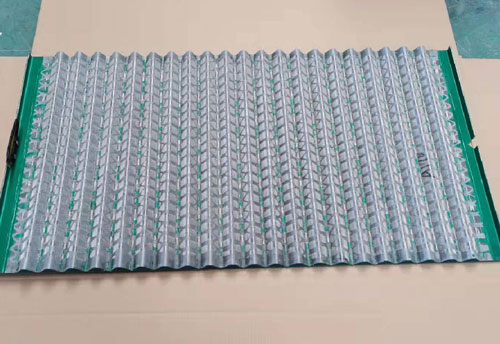

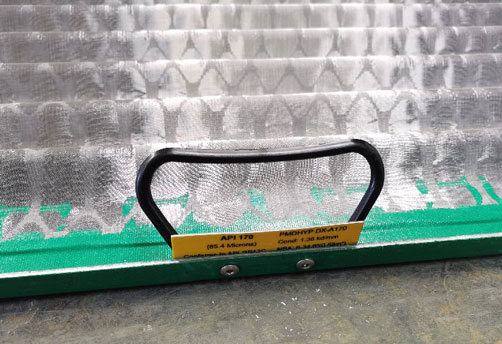

Hyperpool PMD screen for Derrick Hyperpool 4-panel shale shaker pyramid mesh PMD screen Derrick Hyperpool replacement

Derrick PMD Screen Parameters

Name	Hyperpool PMD Shaker Screen
Screen type	Hook strip
Wire cloth material	Stainless steel 304 or 316
Wire cloth layers	2～3
Mesh size	20～400
Dimensions	1070 x 570 mm
Weight	7.4kg

TR Solids Control is a shaker screen manufacturer based in Xi'an, China, holding API and ISO 9001 certifications.

Replacement screens are available for a wide range of shakers, including the Derrick FLC2000 PMD, Derrick FLC2000 PWP, Derrick FLC503 PMD, Derrick FLC503 PWP, Derrick FLC504 PMD, Derrick FLC504 PWP, SWACO Mongoose, Brandt VSM300, Derrick Hyperpool PWP, and Derrick Hyperpool PMD. All screens are direct-fit replacements for OEM equivalents with no modification required.

Beyond shaker screens, TR Solids Control manufactures solids control equipment for oil and gas drilling: shale shakers, desander and desilter units, decanter centrifuges, screw pumps, centrifugal sand pumps, jet mixing hoppers, shear pumps, and complete mud recycling systems for drilling operations, construction slurry management, and HDD applications.
