10"Desander Cone Assembly

10"Desander Cone Assembly

  • TR manufactures 10-inch polyurethane desander cones for Derrick 6066-51 replacement. Check installation compatibility, apex sizes and individual replacement parts.
  • Description

TR Solids Control manufactures 10-inch polyurethane desander cones for drilling fluid solids control systems. This model is intended as a drop-in replacement for standard Derrick 6066-51 units. It follows the standard assembly's mounting dimensions and connection layout.

The cone body is made from wear-resistant polyurethane. It has a 5-inch Victaulic Style 75 inlet connection and a replaceable apex. The standard apex has a 1.250-inch orifice. Other sizes are available on request. The coupling is supplied separately.

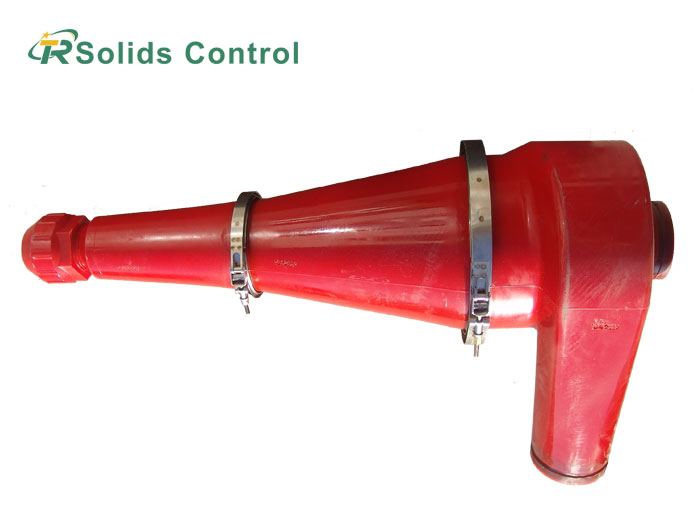

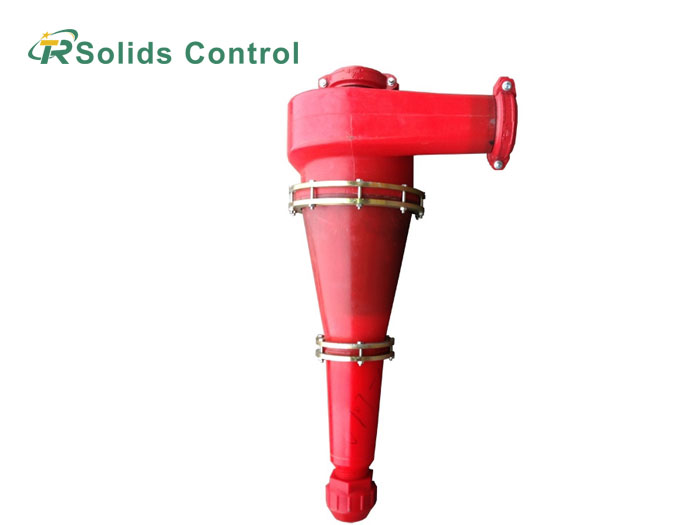

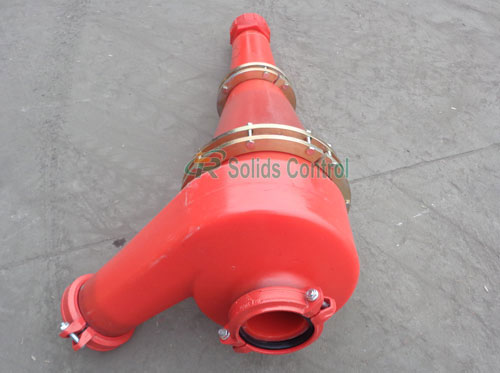

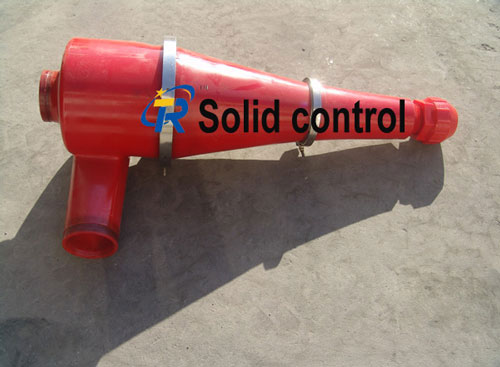

10 inch desander cone assembly for Derrick 6066-51 replacement Derrick 6066-51 desander hydrocyclone replacement TR Solids Control

Desander Cone Replacement Parts

NumParts NamePart Number
1UPPER SECTION6066-52
2UPPER BAND6066-53
3MIDDLE SECTION6066-54
4LOWER BAND6066-55
5
LOWER SECTION6066-56
6APEX 1.2506066-57
7APEX HOLDER6066-58
85"VICTAULIC COUPLING #75MC-5-75

Replacement and Installation Compatibility

The TR 10-inch desander cone is intended to replace the Derrick 6066-51 assembly in standard equipment configurations. Existing pipework and mounting structures can usually be retained when the dimensions and connection positions match.

The cone can be installed individually or as part of a multi-cone desander assembly, including inclined arrangements.

For older equipment, rebuilt units or non-standard installations, check the mounting hole pattern, inlet connection and coupling position before ordering. Previous modifications or equipment wear may affect the fit.

Polyurethane Construction and Performance

The cone body is made from wear-resistant polyurethane. It is lightweight and withstands abrasion from sand and other solids in drilling fluid. Service life depends on mud properties and operating conditions.

Check operating pressure, throughput and separation performance against TR's published product specifications and actual drilling fluid conditions.

The lower section houses the replaceable apex underflow nozzle.

Apex Size and Underflow Control

The apex orifice affects how much solids and liquid pass through the underflow outlet. Inlet pressure and mud weight also affect underflow performance.

A larger orifice allows more material to pass through. It can reduce the risk of plugging, but may also increase liquid loss.

A smaller orifice restricts underflow. It may increase the risk of blockage, particularly when processing heavy mud or fluid with a high solids concentration.

The standard configuration uses a 1.250-inch apex. Other sizes are available on request. Select the apex based on mud weight, solids loading, inlet pressure and the required underflow condition.

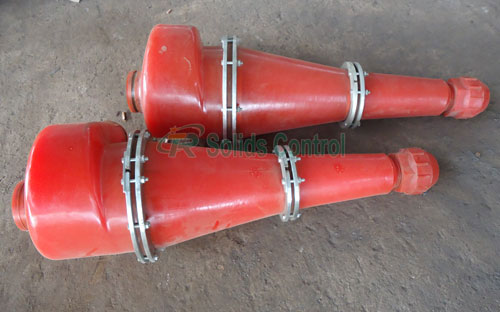

polyurethane desander cone solids control equipment

The cone body consists of upper, middle and lower sections secured by connecting bands. Customers can order individual sections or bands instead of replacing the complete assembly.

Quality Inspection

Before delivery, TR checks the cone dimensions, mounting positions and connection points against the 6066-51 reference drawing.

For older or modified equipment, installation details should be confirmed before production or shipment.

Applications

The main application is drilling fluid solids control in oil and gas drilling operations. The 10-inch cone removes sand and other coarse solids before the drilling fluid enters the desilter stage.

The cone may also be used for mineral classification and tailings treatment. These non-drilling applications require a separate technical review by TR's engineering team. Slurry properties, flow rate, operating pressure and wear conditions must be evaluated before confirming the cone configuration.

Request a Quote

For a quotation, please provide:

  • Required quantity

  • Derrick reference model or part number

  • Required apex size

  • Whether a Victaulic coupling is required

For older or modified equipment, include photos of the existing cone, mounting bracket and inlet connection. These photos help us verify the mounting and connection details before confirming the order.

This product is supplied by an independent manufacturer and is not represented as an original or authorized Derrick product.
