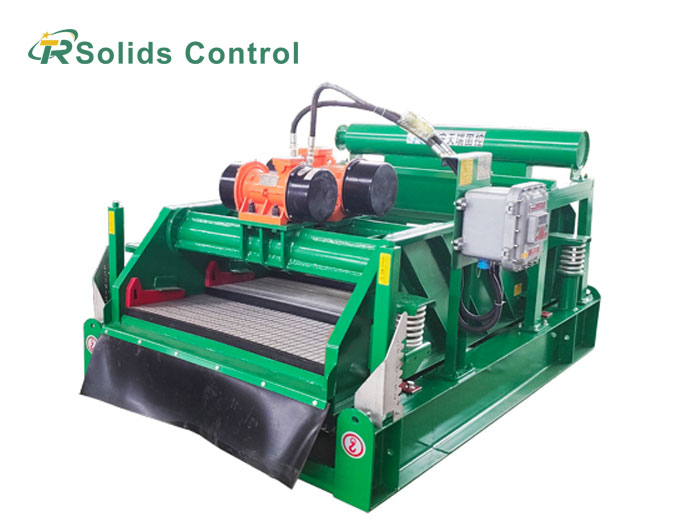

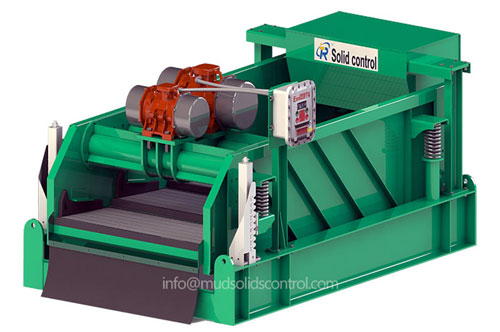

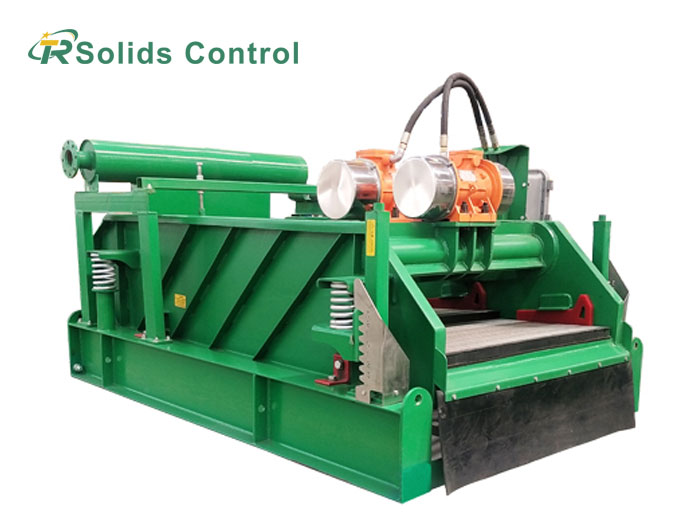

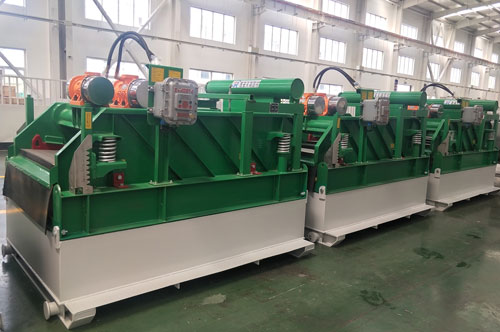

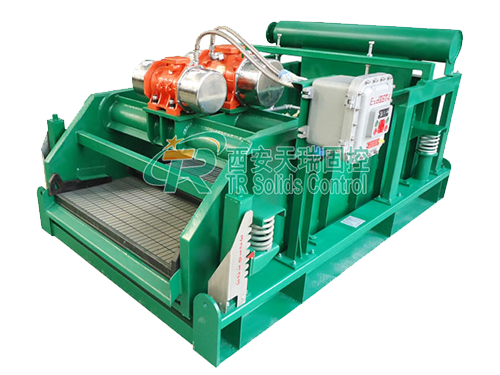

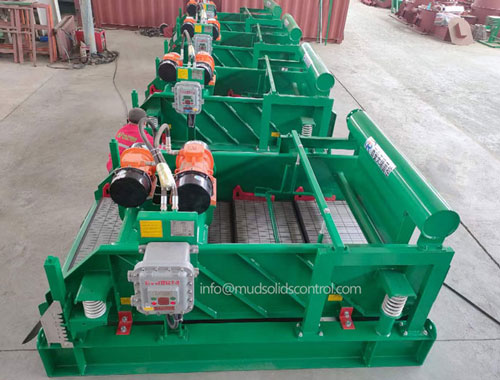

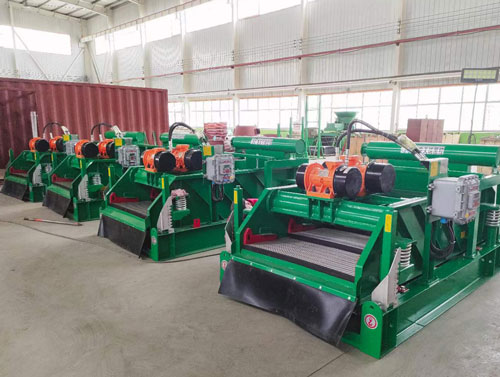

BEM Shale Shaker

Balanced Elliptical Motion Shale Shaker is an oilfield solids control equipment used for primary separation of drilled cuttings from drilling fluids in oil and gas drilling operations.

TR BEM shale shaker uses balanced elliptical motion technology, combining the conveying capability of linear vibration with the fluid recovery advantages of elliptical motion. The balanced elliptical vibration pattern moves drilled cuttings efficiently across the screen surface while recovering reusable drilling fluid during the separation process.

Compared with conventional linear motion shale shakers, the balanced elliptical trajectory improves solids movement, reduces screen blinding, and maintains effective screen openings during continuous drilling operations. Field operation results show that TR BEM shale shaker can increase drilling fluid processing capacity by up to 30% and improve cuttings discharge efficiency by up to 20% under similar operating conditions.

Key Features of BEM Shale Shaker

1. Balanced elliptical motion improves drilling fluid solids separation and cuttings conveyance.

2. Optimized vibration trajectory increases screen penetration and reduces screen blinding.

3. Large screening area increases drilling fluid processing capacity by up to 30%.

4. Efficient cuttings discharge improves performance with high-viscosity drilling fluids.

5. API shaker screen compatibility enables fast screen replacement and maintenance.

6. Heavy-duty steel construction withstands vibration loads during long-term oilfield drilling operations.

Balanced Elliptical Shale Shaker Technical Parameters

Working Principle of Elliptical Motion Shaker

The balanced elliptical motion is generated by two synchronized vibration motors rotating in opposite directions. The combined centrifugal forces produce an elliptical movement of the screen basket, with the screen surface moving along a fixed elliptical trajectory.

During operation, the horizontal component of vibration force transports drilled cuttings toward the discharge end, while the vertical component lifts and loosens the solids layer on the screen surface. Drilling fluid passes through the screen openings and returns to the mud circulation system, while separated solids are discharged from the shaker.

The balanced vibration force maintains a consistent elliptical motion across the screen deck, allowing continuous separation of solids from drilling fluid.

Applications of Balanced Elliptical Shale Shaker

• Primary solids control in oil and gas drilling operations.

• Separation of drilled cuttings from water-based, oil-based, and synthetic-based drilling fluids.

• Onshore and offshore drilling applications where reliable solids removal is required.

• High-volume drilling fluid processing for complex drilling conditions.

• Connection with complete mud solids control systems and drilling fluid treatment systems.

Project Case of BEM Drilling Shaker

• BEM Shale Shaker Used in Saudi Arabia Oilfield Project

• Balanced Elliptical Motion Shaker Used in UAE Offshore Drilling Project

• BEM Shale Shaker Application in Kuwait Drilling Operation

• Drilling Fluid Separation Project with BEM Shale Shaker in Egypt

FAQ

• What information is required to select a BEM shale shaker model?

  Please provide the drilling application, required processing capacity, drilling fluid type, operating conditions, power supply, and screen specifications. TR will recommend a suitable shaker configuration based on your project requirements.

• Can the BEM shale shaker be integrated with an existing solids control system?

  Yes. TR BEM shale shaker can be installed as part of a complete mud solids control system according to the site layout and equipment requirements.

• What are the advantages of BEM shale shaker compared with linear motion shale shaker?

  TR BEM shale shaker combines efficient cuttings conveying with improved drilling fluid recovery, making it suitable for high-flow and high-viscosity drilling fluid applications.

• What spare parts are available for the BEM shale shaker?

  TR supplies shaker screens, vibration motors, screen components, and other wear parts to support equipment maintenance and replacement.
