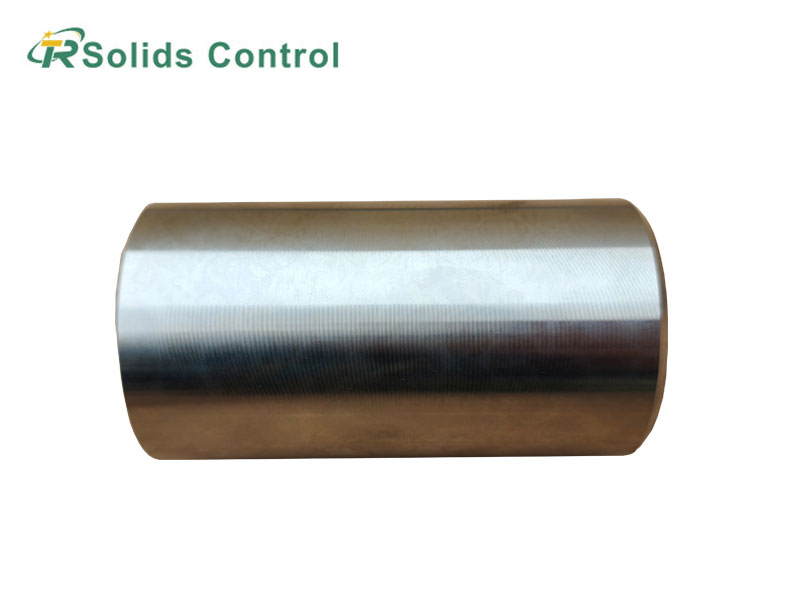

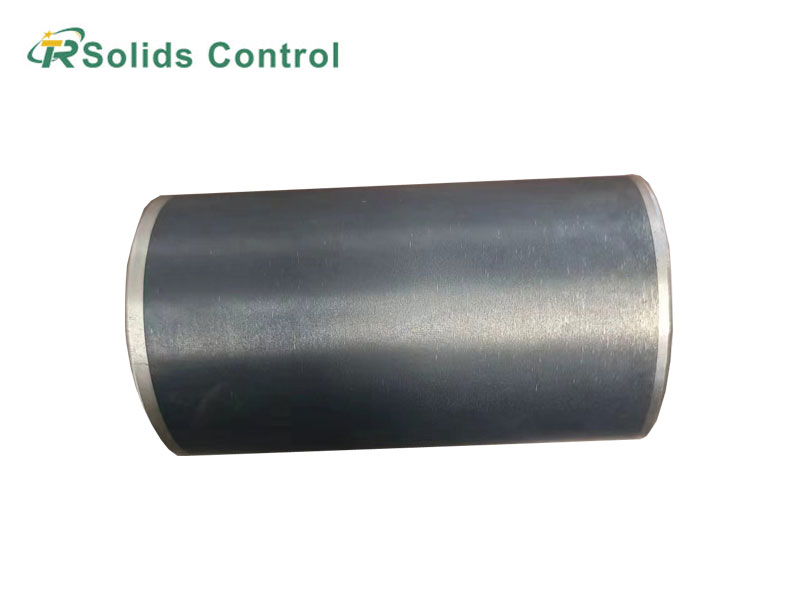

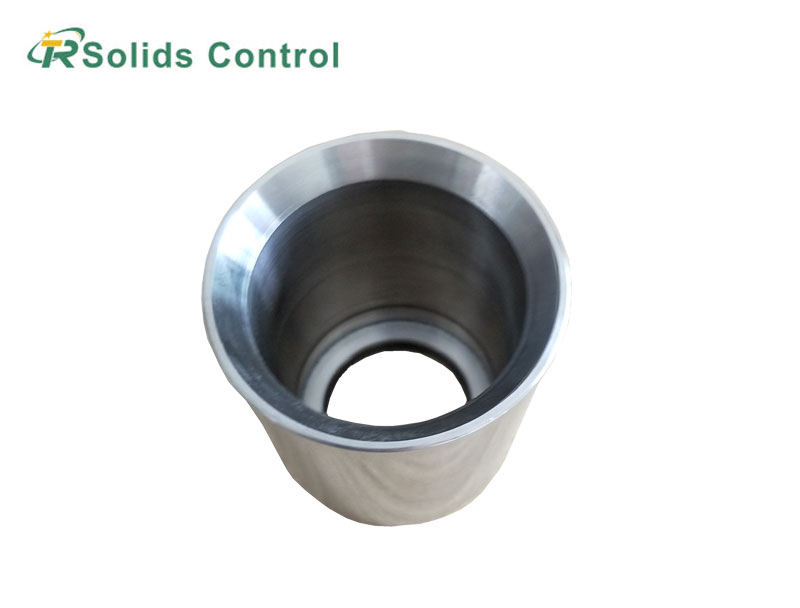

Mission Shaft Sleeve

Wear-Resistant Shaft Sleeve Introduction

The shaft sleeve is the core wear and protection component for centrifugal pumps and sand pumps. It is mainly fitted on the pump shaft journal, mechanical seals and packing areas, and rotates synchronously with the shaft.

Wear-Resistant Shaft Sleeve Introduction

The shaft sleeve is the core wear and protection component for centrifugal pumps and sand pumps. It is mainly fitted on the pump shaft journal, mechanical seals and packing areas, and rotates synchronously with the shaft.

MAGNUM CENTRIFUGAL Centrifugal Pump Shaft Sleeve Part list

2500 SUPREME Centrifugal Pump Shaft Sleeve Part list

Functions of Wear-Resistant Shaft Sleeve

1. Protects the main shaft: Prevents shaft journal from direct friction, corrosion and erosion caused by mechanical seals/packing. Only the shaft sleeve needs replacement when damaged, avoiding costly shaft repair.

2. Positioning & sealing fit: Provides an accurate mounting surface for mechanical seals and controls axial positioning. Some designs are equipped with seal grooves or coatings for enhanced sealing performance.

3. Wear resistance & friction reduction: Adapts to highly abrasive working conditions such as drilling fluid and slurry, reducing frictional heat and energy consumption during operation.

Application & Maintenance

Mainly used in oilfield mixing pumps, drilling fluid sand pumps and mining slurry pumps, commonly applied in oil & gas drilling, fracturing and mine tailings transportation.

Xi’an Tianrui Solid Control adopts advanced technology and mechanized production to manufacture Tianrui-brand replacement parts for Mission MAGNUM CENTRIFUGAL and 2500 SUPREME sand pumps. Our sand pump parts are fully interchangeable with original equipment, comparable in appearance and quality, compliant with API standards and certified with API certificates.
