Explosion-Proof Mud Agitator: Technical Features & Shipping

In the fields of oil drilling, Horizontal Directional Drilling (HDD), and trenchless engineering, the stable operation of solids control equipment is the key to ensuring smooth operations. Among these, the explosion-proof mud agitator undertakes the critical task of preventing solid particle deposition and maintaining mud uniformity. Recently, the batch of customized explosion-proof mud agitators completed assembly and testing at the Xi'an Tianrui (TR) Solids Control workshop. Fully assembled and ready to go, they are about to depart for drilling project sites. Let's dive deep into the technical features of this key equipment and take you directly to the shipping scene.

Explosion-proof mud agitators are essential solids control equipment in oil drilling fluid systems, designed to keep drilling fluid homogeneous and solid particles suspended, preventing sedimentation in circulating tanks and stabilizing drilling fluid performance.

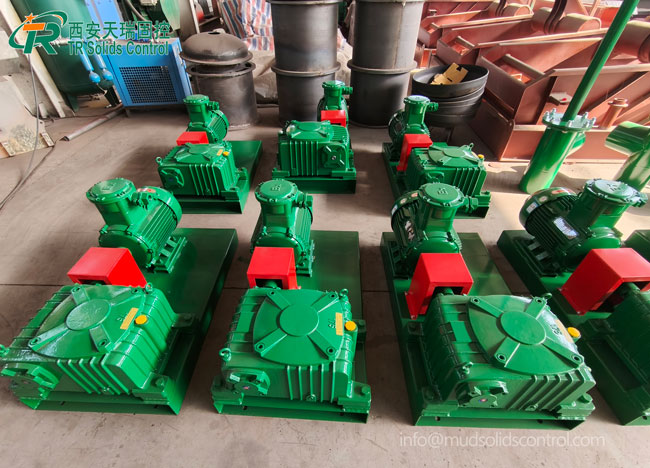

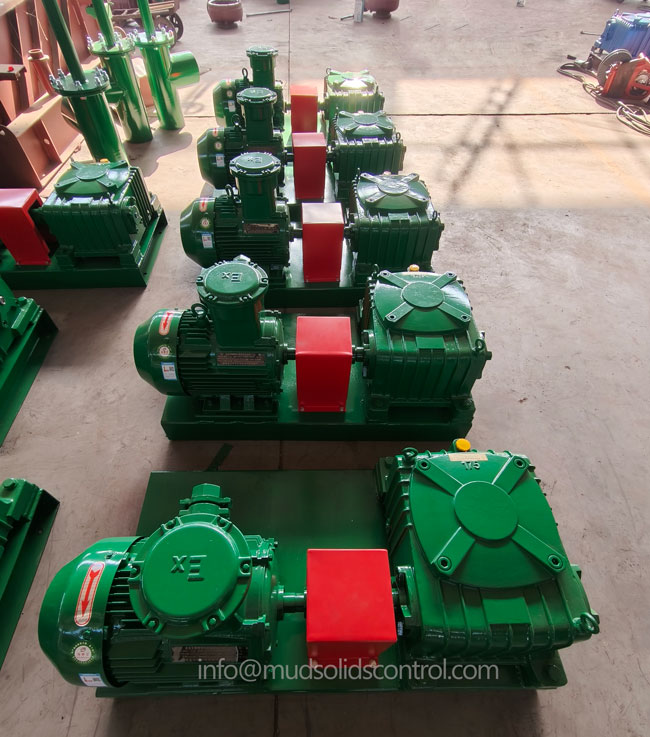

The equipment shipped this time features distinctive green coating, equipped with explosion-proof motors and gear reducers. They are connected via rigid couplings to drive the impeller assembly, generating a vortex motion that enhances the mixing effect. Specific models, such as the TRJBQ15, utilize the worm gear horizontal coupling structure, making them highly suitable for the continuous agitation of high-viscosity mud.

Equipment Structure and Core Components

1. Explosion-proof Motor

   Vertical/horizontal explosion-proof motors, certified to meet oilfield explosion-proof standards (marked with "Ex"), specially engineered for flammable and explosive drilling sites to provide reliable power.

2. Gear Reducer

   Heavy-duty gear reducers, connected to motors via couplings (protected by red safety guards), reduce rotational speed and increase torque to deliver sufficient mixing force for impellers.

3. Base Skid

   One-piece steel base skids secure the agitator to the top of mud tanks, ensuring stable, vibration-free operation during field use.

Equipment Function and Application Scenarios

1. Core Function: Installed on drilling mud tanks, the agitator continuously mixes drilling fluid to prevent settlement of barite, cuttings and other solid particles, ensuring uniform mud performance to meet drilling process requirements.

2. Application Scenarios: Widely used in oil/gas drilling, horizontal directional drilling (HDD), trenchless engineering, CBM drilling and other projects requiring mud circulation in solids control systems.

3. TR Solids Control Advantage: As the qualified supplier to CNPC, all our mud agitators comply with API/ISO international standards and hold explosion-proof certifications. We offer customized solutions for various tank types and mud systems, making us a leading global supplier of solids control equipment.

Analysis of Technical Features

1. Explosion-Proof Safety Design

   Since drilling sites often contain flammable and explosive gases, safety is the primary consideration. Our explosion-proof mud agitators are equipped with high-standard explosion-proof motors that meet relevant certification levels. This design ensures the equipment can operate safely and stably in hazardous environments, eliminating safety risks.

2. High-Efficiency Mixing Structure

   The equipment adopts the horizontal reducer and impeller assembly connection. Optimized impeller design generates strong vortex motion in mud tanks, significantly improving mixing efficiency. It ensures solid particles remain suspended, preventing sedimentation for both high-viscosity weighted mud and standard drilling fluids.

3. Robust and Durable Manufacturing

   To adapt to harsh field environments, the main body of the equipment is made of high-strength steel, treated with anti-corrosion coatings for exceptional wear and corrosion resistance. The direct-drive transmission method not only makes the structure compact but also significantly reduces failure rates and maintenance costs.

4. Strict Quality Inspection and Shipping Process

   Before shipment, we execute a rigorous ex-factory quality inspection process:

   Appearance Inspection: Ensuring the paint is intact, free of transport damage, and nameplate information is clear.

   Operation Test: Conducting no-load test runs on each unit to monitor vibration, noise, and temperature rise, ensuring mechanical performance meets standards.

   Packaging Protection: For long-distance transport, key parts such as motor junction boxes and reducers are wrapped in waterproof and dustproof packaging, then securely fastened to pallets.

As a professional manufacturer of solids control equipment and an approved CNPC supplier, TR Solids Control's explosion-proof mud agitators comply with international API/ISO certifications. They are not only widely used in domestic oil and gas field projects but are also exported to global markets including the United States, the Middle East, and Africa, becoming a mainstream choice for overseas drilling solids control systems. From R&D to production and shipping, every step reflects our commitment to quality.

Selecting the right agitator requires matching parameters such as mud tank volume, mud density, and processing capacity. TR Solids Control provides the full series of customized solutions with different power ratings and reduction ratios. If you are looking for an efficient and safe drilling fluid agitation solution, please feel free to contact us at any time.
