Cyclone Elbow

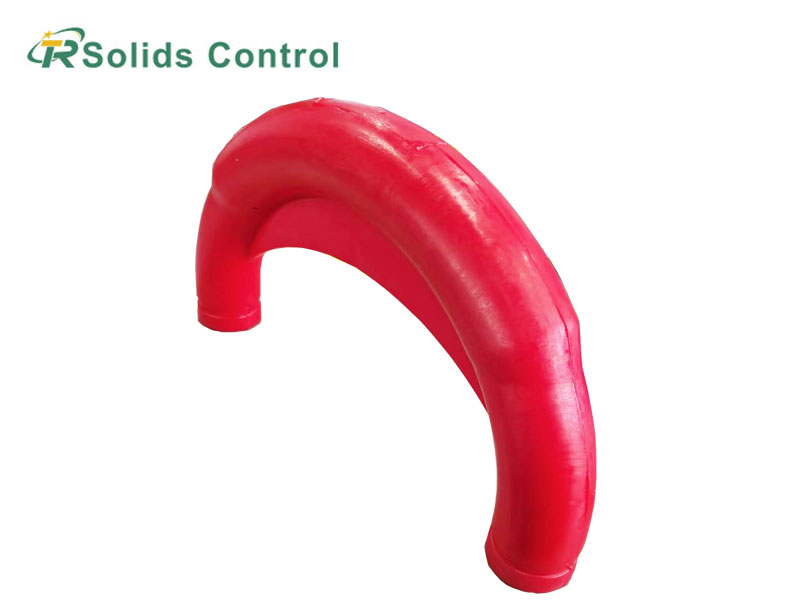

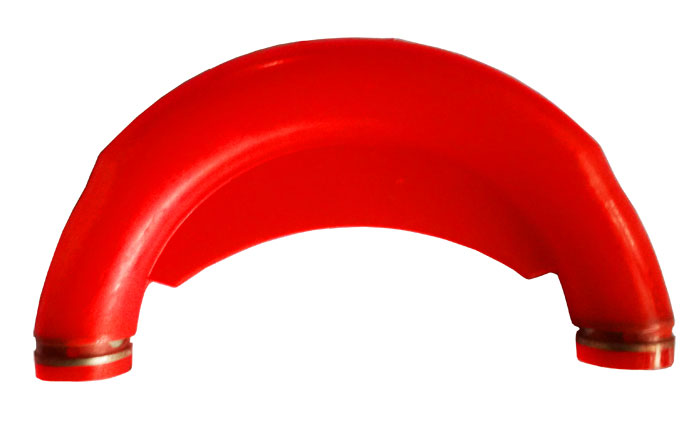

The 6431-00 Urethane Elbow is a 180-degree pipe fitting used to connect hydrocyclones in oilfield solids control systems, often used in mud cleaners. With a 4-inch diameter, smooth interior walls, and reinforced sidewalls, it handles high-abrasion drilling mud without the wear issues associated with steel fittings.

Structure Features

1. One-piece molded urethane construction with no seams or weak points

2. Smooth interior surface reduces turbulence and abrasion from drilling mud

3. Reinforced sidewalls hold up under pressure

4. Symmetrical design allows installation in any orientation

5. Thick urethane wall resists erosive drilling fluids

Applications

1. Desilter Systems: Connects 4-inch hydrocyclones in Derrick desilter units

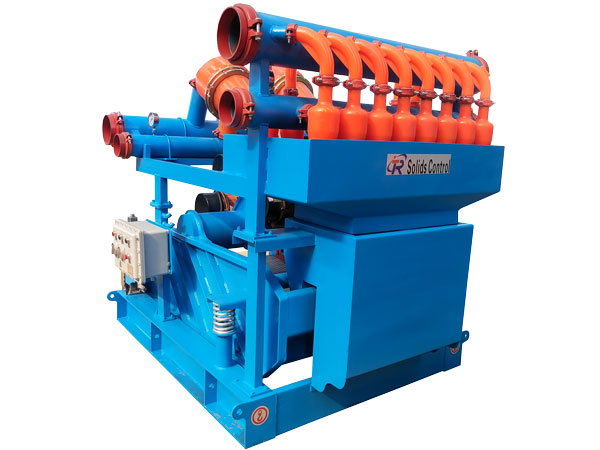

2. Mud Cleaner Units: Hydrocyclone elbow connection in Derrick mud cleaner systems

3. Multi-stage Separation: Used in series-connected cyclone banks for solids removal

4. Mud Recycling Systems: Routes mud from cyclone outlets back to shakers or other processing equipment

5. Solids Control Equipment: Used in drilling rig solids control manifold systems

Advantages

1. Abrasion Resistance: Urethane construction outlasts steel elbows in abrasive mud applications

2. Vibration Dampening: Reduces system vibrations, improving stability and equipment life

3. Corrosion Resistance: Non-reactive to acidic drilling fluids

4. Easy Installation: Lightweight, quick to replace with standard tools

5. Lower Maintenance Costs: Extended service intervals reduce downtime and replacement frequency

About TR Solids Control

Xi'an TR Solids Control manufactures Tianrui-brand replacement parts for oilfield solids control equipment, including Derrick shale shakers, mud cleaners, and desilter units. All components meet US API standards and are API-certified, ensuring reliable fit and consistent performance across field operations.
