Jack Assy Ratchet

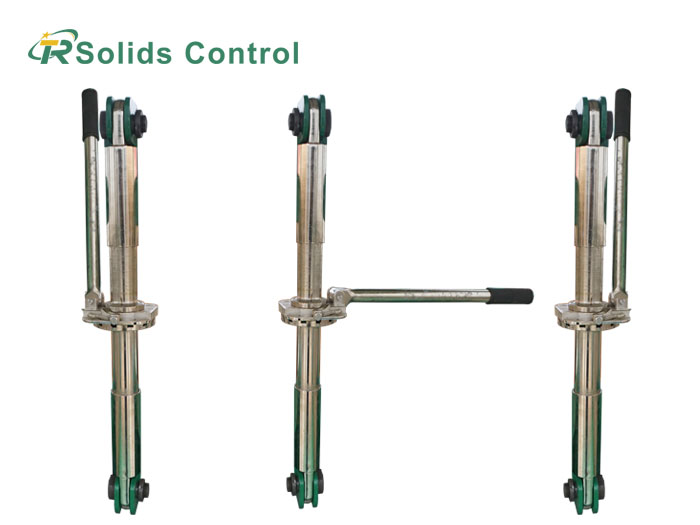

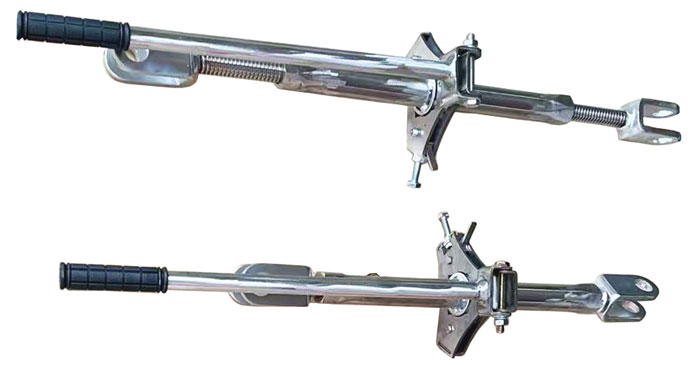

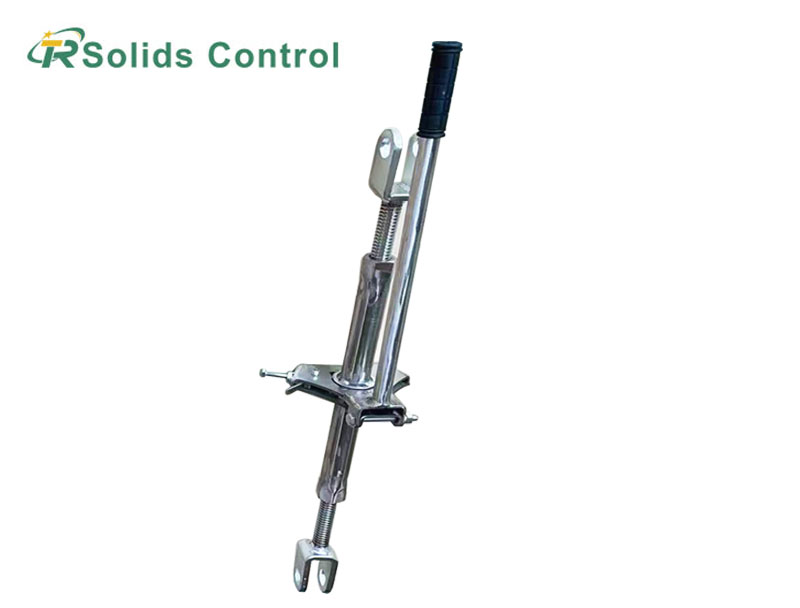

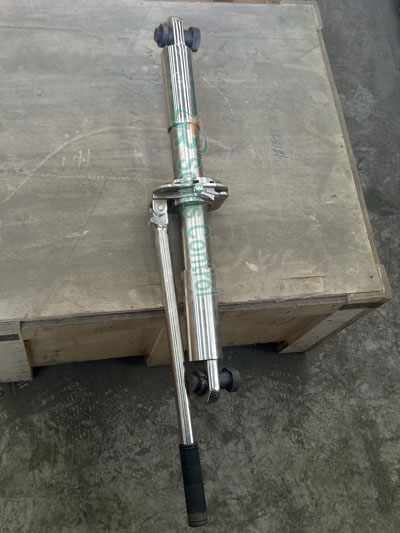

The Derrick G0005848 Jack Assembly Ratchet is a manual angle adjustment component for the Derrick FLC-504 shale shaker. Using a ratchet-pawl mechanism, it allows operators to fine-tune the screen deck angle during drilling operations, optimizing solids separation and extending screen life. The handle is cast aluminum, and the assembly is also compatible with TR shale shakers.

Features

1. Ratchet-pawl mechanism: Enables incremental angle adjustment with positive locking at each position

2. Manual aluminum handle: Provides sufficient leverage for angle adjustment without additional tools

3. Extension rod: Connects to the screen frame for precise angle modification

4. Multi-tooth locking design: Prevents accidental angle changes under vibration

Applications

1. Derrick FLC-504 Shale Shaker: Screen angle optimization during active drilling operations

2. Solids Control Systems: Allows angle adjustment to match changing drilling conditions, improving separation efficiency

Advantages

1. Precision Adjustment: Fine-tunes screen angle across varying drilling conditions

2. Vibration Resistance: Holds the set angle securely under high-frequency shaker vibration

3. Durable Construction: Heavy-duty build withstands continuous oilfield operations

4. Simple Operation: No hydraulic lines or external power required, reducing maintenance points

About TR Solids Control

Xi'an TR Solids Control manufactures Tianrui-brand replacement parts compatible with Derrick shale shakers and mud cleaners. All components meet US API standards and are API-certified, ensuring reliable fit and consistent performance across field operations.
