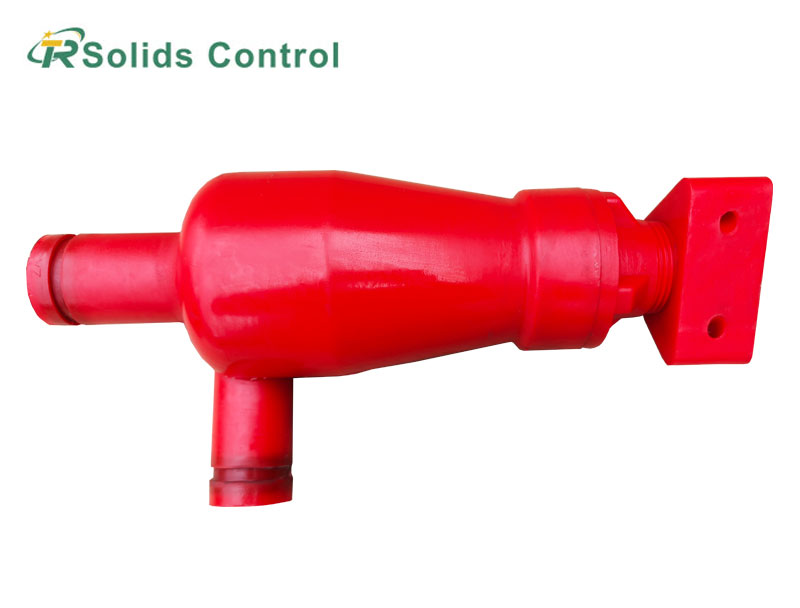

4" Cyclone Assembly

Hydrocyclone For Solids Control

TR Solids Control's 4-inch hydrocyclone is direct replacement for the Derrick 10523-12. It matches the original in mounting dimensions, performance parameters, and maintenance compatibility.

Derrick 4" Desilter Hydrocyclone Parts List

No.	Part Name	Part No.	Part photo

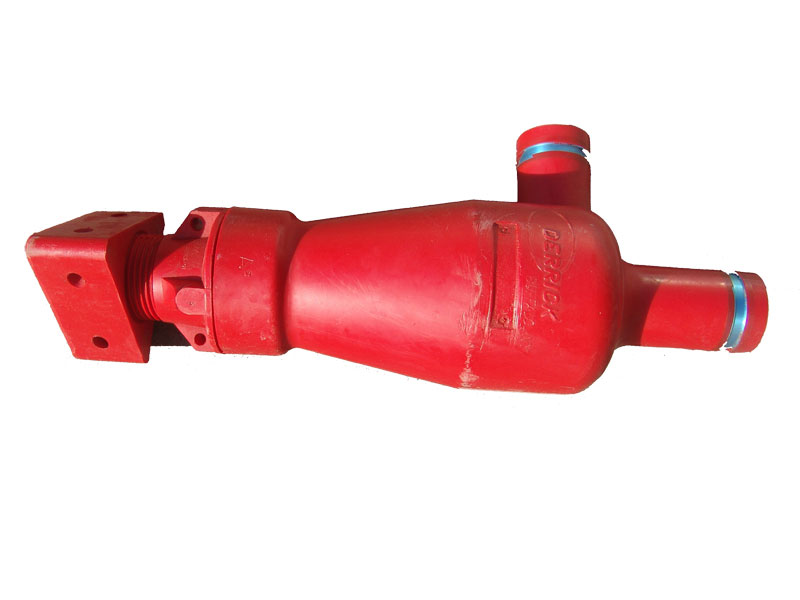

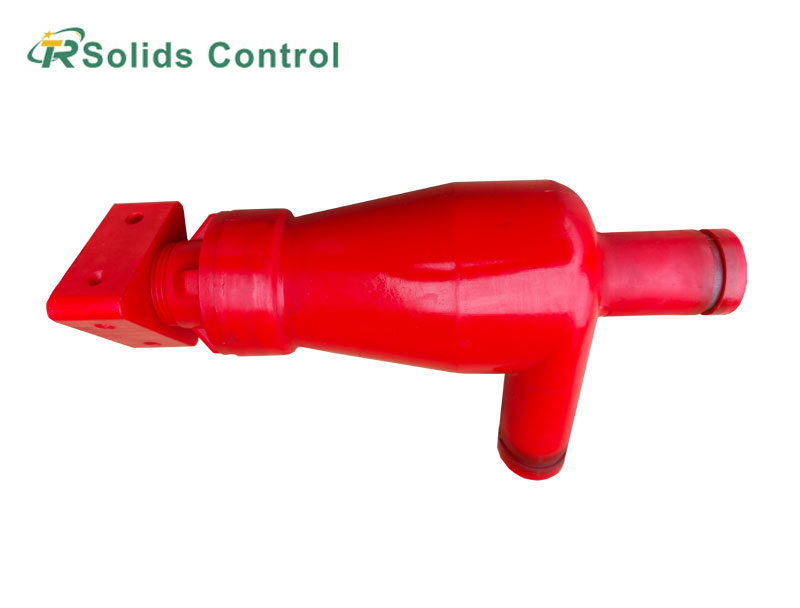

1	4″ URETHANE CONE	10523-12

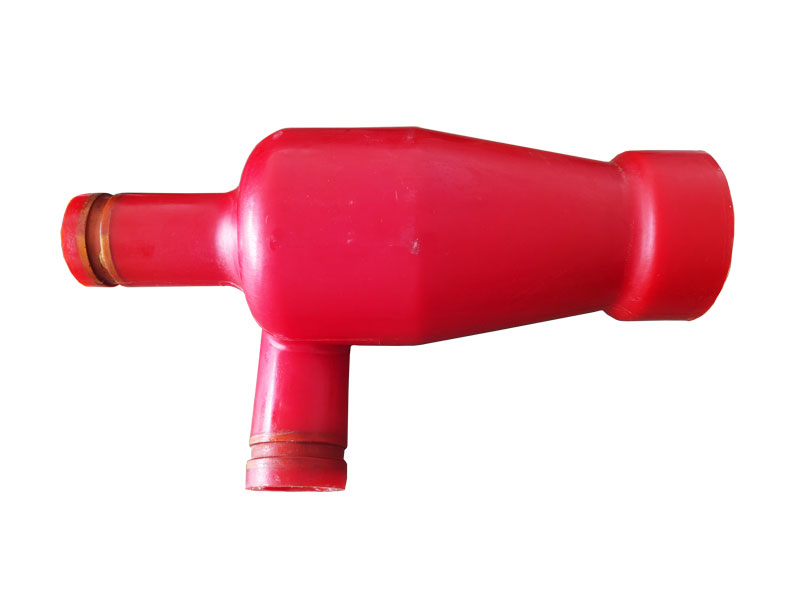

2	4"HYDROCYCONE BODY(B836 URETHANE)	10523-00

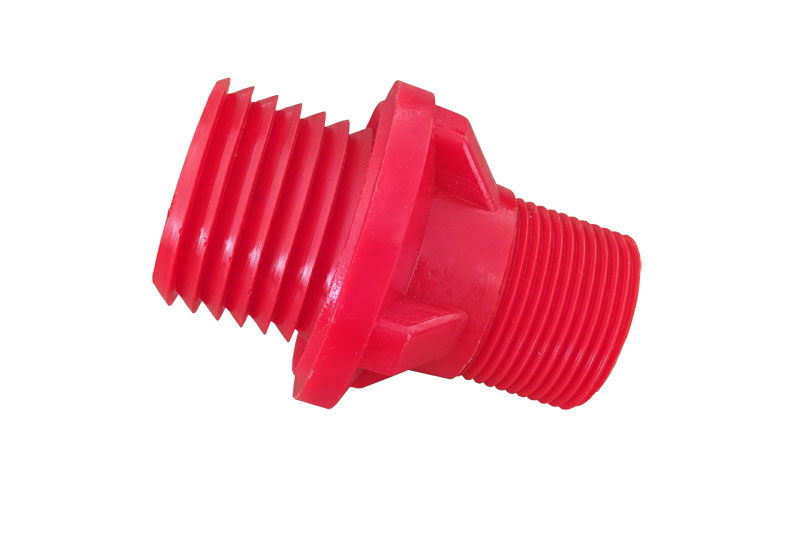

3	THREAD ON CONE TIP	10523-01

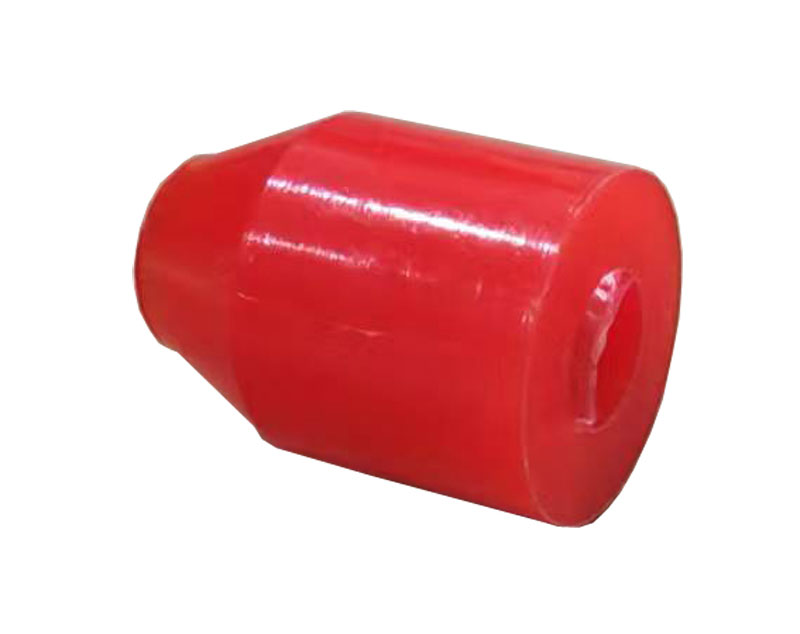

4	DROP IN APEX	10523-02

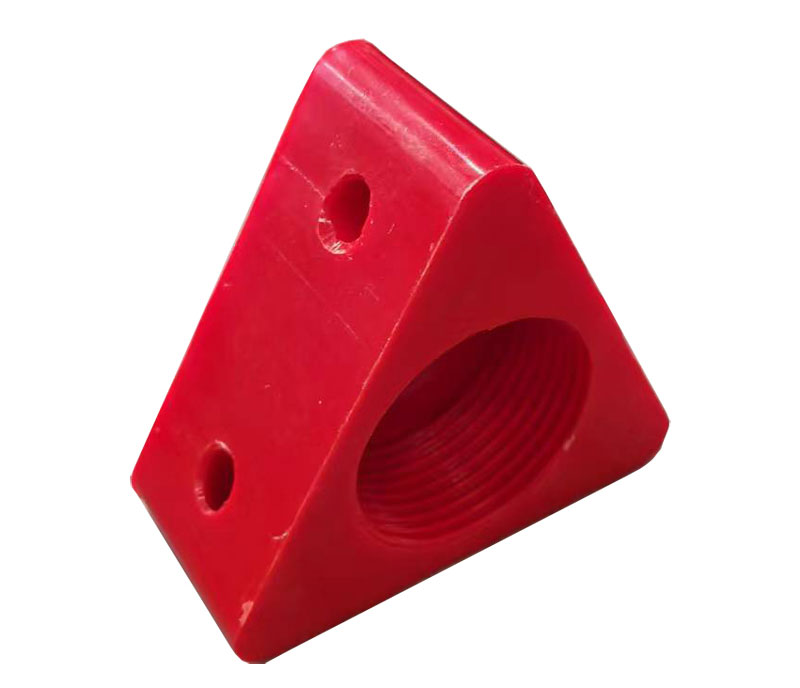

5	TRIANGULAR NUT	10523-04

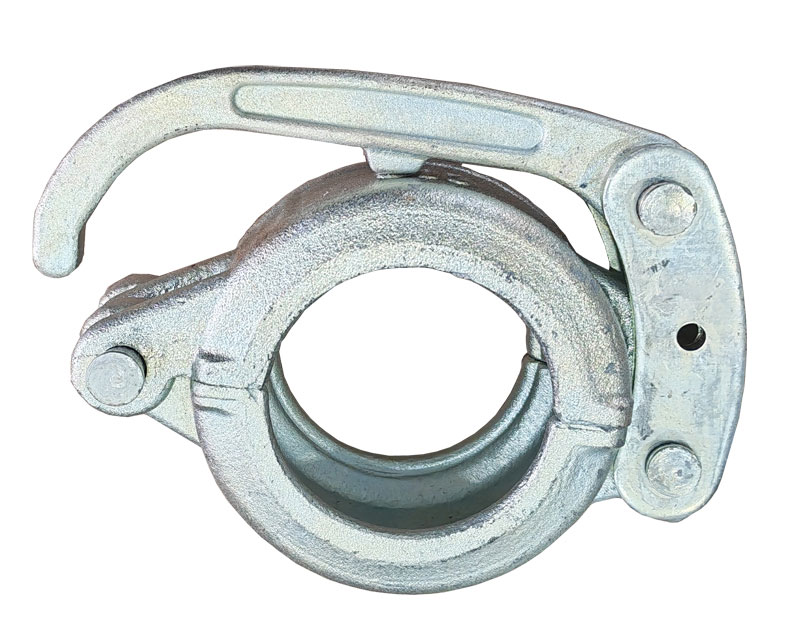

6	2″VICTAULIC SNAP COUPLING	VIC-2-78

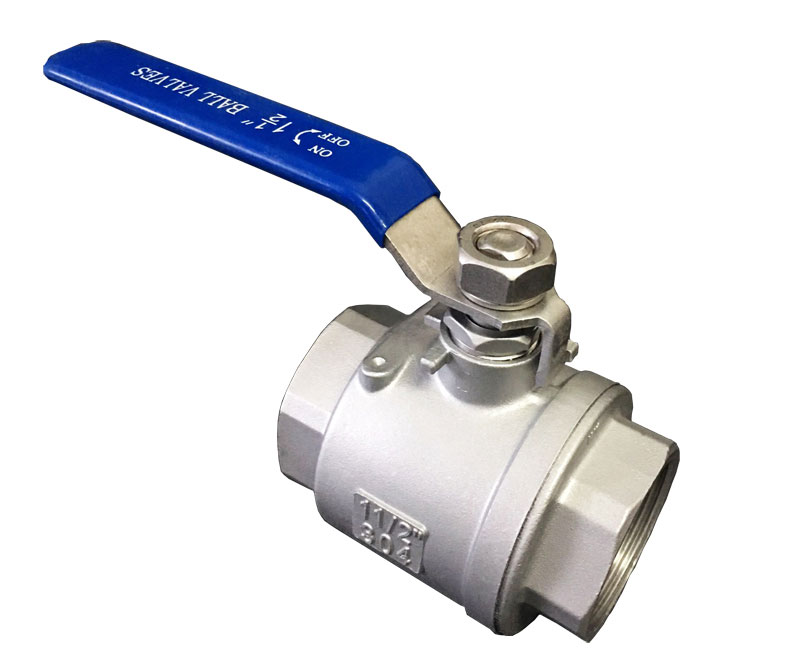

7	2″VCTAULIC BALL VALVE	G0002077

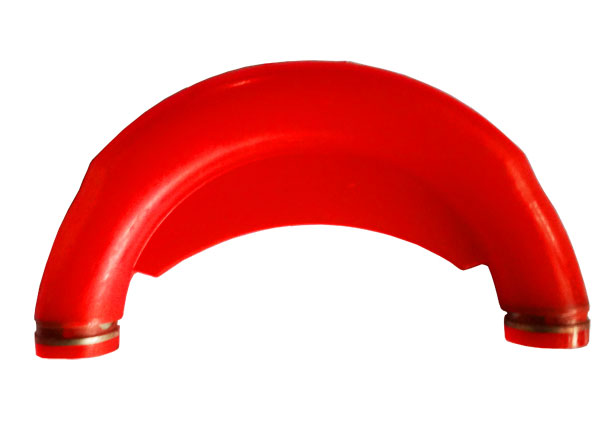

8	180° VCTAULIC URETHANE ELBOW	6431-00

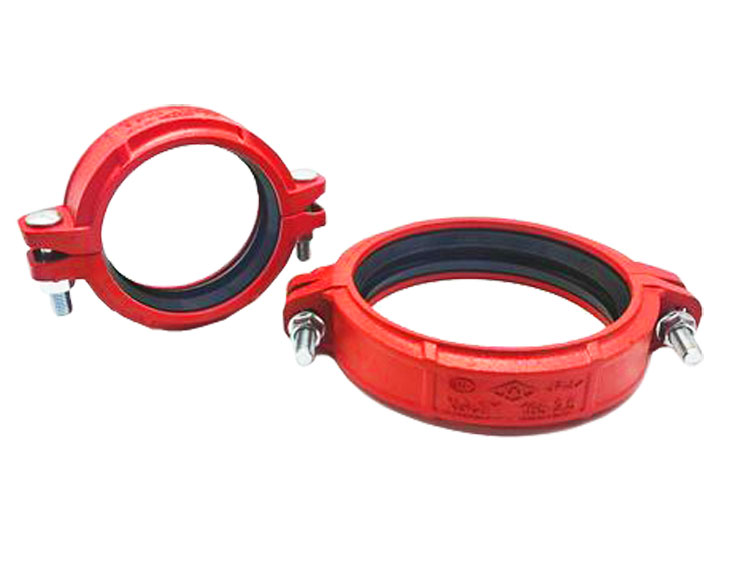

9	2" VCTAULIC ZERO-FLEX COUPLING	VIC-2-07

Interchange Assurance

Precise Dimensional Match

TR's 4-inch hydrocyclone replicates the Derrick cyclone unit's core structural parameters: inlet and outlet specifications, mounting hole locations, external dimensions, and coupling type. Existing pipework, support brackets, and walkway structures need no alteration. The cone installs as a single-unit replacement or as part of a multi-cone manifold assembly, fully compatible with Derrick shaker-mounted configurations.

Material and Performance Parity

The cone body is manufactured from high-wear-resistant polyurethane, consistent with Derrick's material specification: low weight, strong abrasion resistance, and extended service life. Cut point range, throughput capacity, and working pressure all meet Derrick standards. The underflow outlet uses the same nozzle-style design as Derrick, reducing nozzle clogging. Variable nozzle sizing allows separation cut point adjustment to suit changing process conditions. Wear parts and nozzles are interchangeable with Derrick equivalents.

Cross-Application Compatibility

TR hydrocyclones comply with API and ISO standards, covering the same application scope as Derrick units. Whether replacing a standalone Derrick hydrocyclone or fitting into an inclined multi-cone system, overall equipment efficiency is preserved with no changes to process parameters or operating procedures.

Applications

1. Primary Desilting — Removes silt-sized particles from drilling mud in desilter units

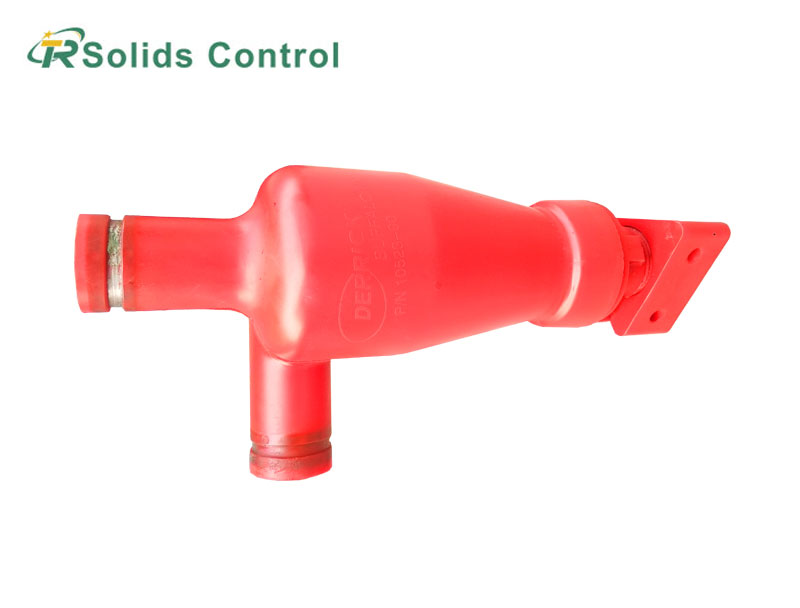

2. Mud Cleaners — Mounted over shale shakers in mud cleaning systems

3. HDD & CBM Operations — Suited for compact mud systems in horizontal directional drilling and coalbed methane extraction

4. Mining & Water Well Drilling — Effective in drilling applications requiring solids removal

About TR Solids Control

Xi'an TR Solids Control manufactures polyurethane hydrocyclones in 4″–12″ sizes for desander and desilter units, and iron cyclones in 12″–20″ for desander plants. All products meet US API standards and are API-certified, ensuring reliable fit and consistent performance across field operations.
