4" Desilter Cone Assy

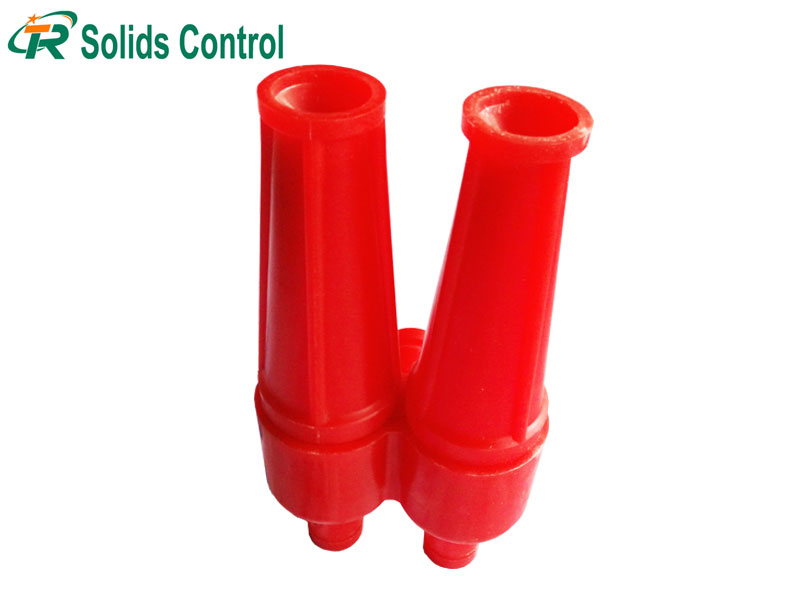

9622220 4" Dual-Cone Hydrocyclone

This 4‑inch twin‑cone hydrocyclone is designed as a direct replacement for the desilter cyclones used on Swaco Mongoose cleaner assemblies. It operates on centrifugal force to separate solids in the 15‑ to 25‑micron range from drilling fluid, protecting downstream pumps and equipment from erosive wear.

The cone is cast from high‑grade polyurethane with excellent resistance to heat, abrasion, corrosion, oil and water. Its dual‑cone profile and optimised feed inlet geometry generate higher centrifugal forces for efficient removal of cuttings, sand and silt. A ceramic lining is available as an option. This construction ensures long service life and stable separation performance even in demanding drilling environments.

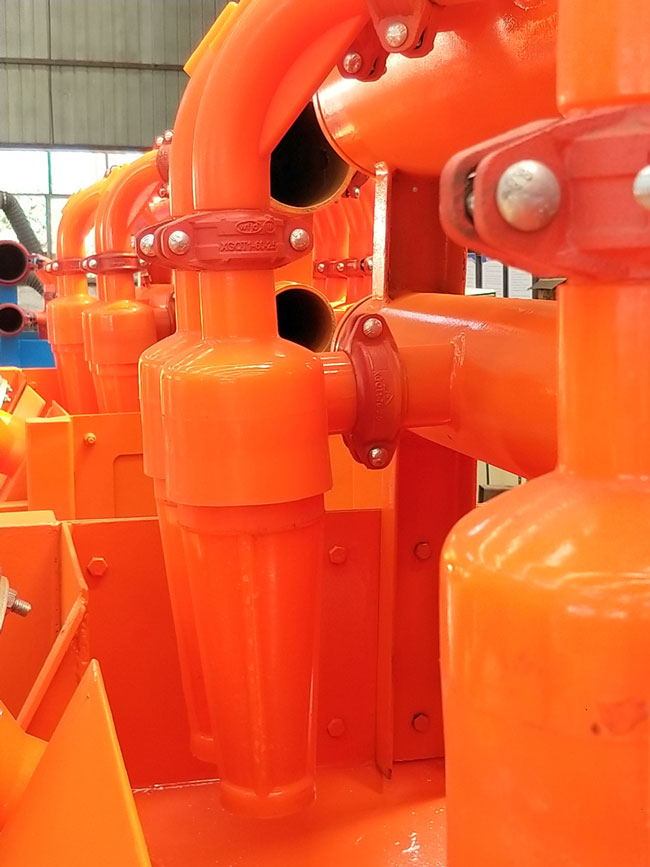

When installed in drilling desilter, the 4‑in cone provides high throughput. The polyurethane material offers excellent resistance to heat, abrasion, corrosion, oil and water. The feed inlet angle is carefully designed to generate higher centrifugal forces, which effectively remove drilled cuttings, sand and silt from the mud stream.

Application of desilter cyclone

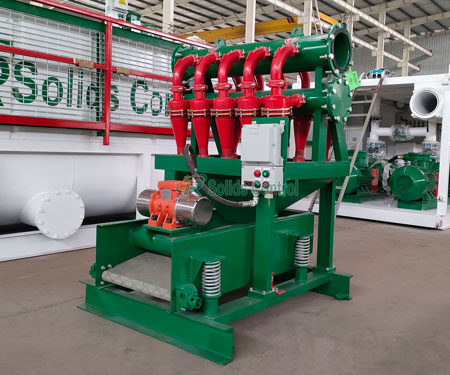

4-inch cone is used in mud desilter. This unit delivers high throughput while maintaining sharp cut‑point performance. It is a critical component in solids control systems, helping to improve mud properties, prolong equipment life, and enhance drilling efficiency.

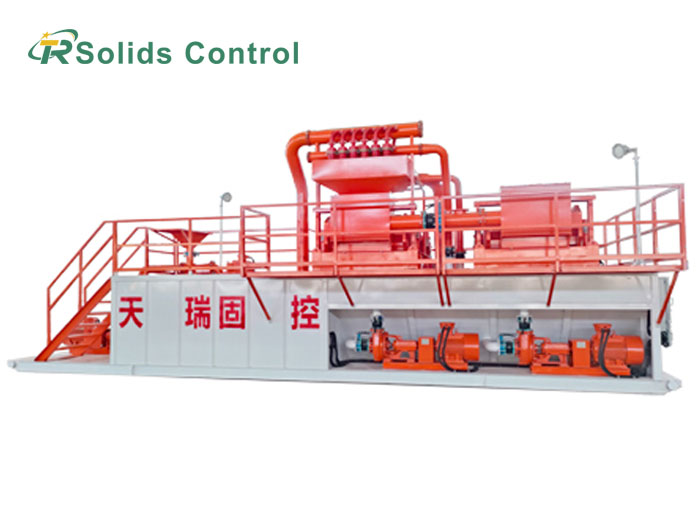

This equipment is widely applied in oilfield mud cleaning, mud circulation, mining tailings management, and industrial wastewater treatment.

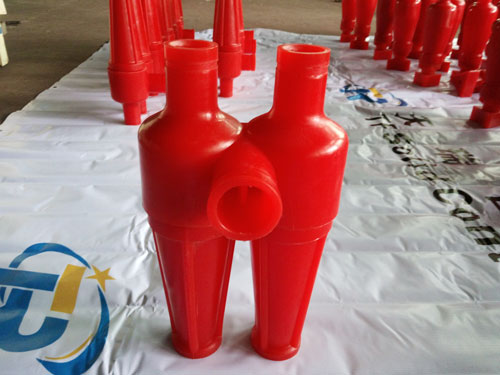

The Swaco desilter cyclone is designed to perform reliably under diverse combinations of drilling pump and sand conditions. In normal service, it reduces sand content in conventional water‑based and oil‑based muds to negligible levels. Manufactured from premium polyurethane, it offers exceptional durability and a long projected service life.

As both supplier and manufacturer, We can supply cyclones, liners, and other components to match the original specs, which makes our 4-inch Swaco 9622220 go-to desilter for drilling jobs.
