500 Flat Shaker Screen

API certified FLC500 flat shaker screens for Derrick FLC500 series shale shakers. Stainless steel 304/316, 2–3 layers, 20–325 mesh. Supplied by TR Solids Control.

Product PDF Product Catalogue Inquiry

Description

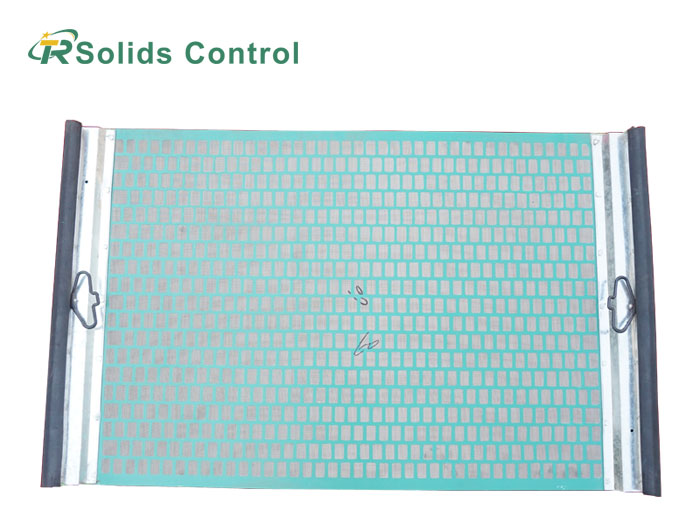

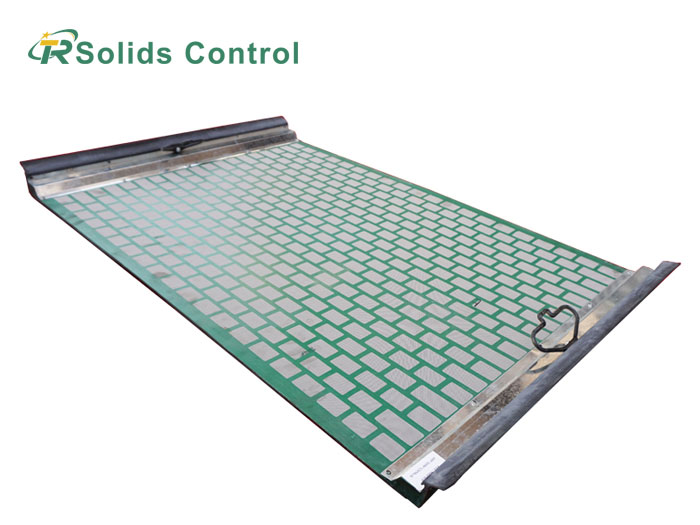

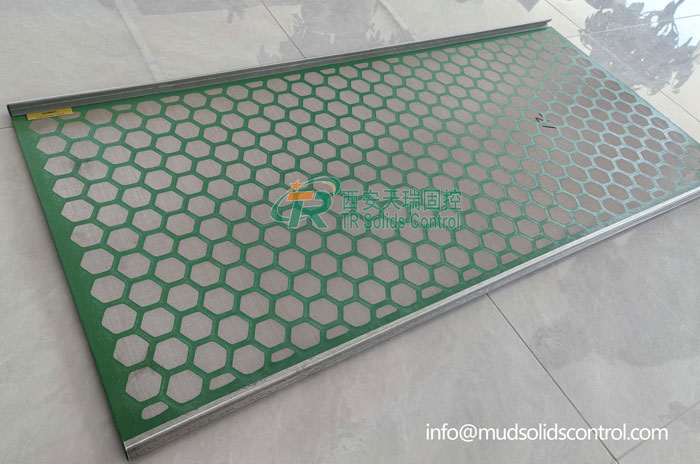

The FLC500 Flat Shaker Screen is a replacement screen for Derrick FLC500 series shale shakers. Each screen is constructed with two or three layers of stainless steel wire cloth (304/316 grade) bonded to a steel backing plate. The backing plate is available in hexagonal, rectangular, or square perforation patterns, dividing the screen surface into independent sections that limit local expansion and prevent panel damage, extending overall screen life.

The upper layer uses finer wire cloth over a coarser middle and bottom layer, combining filtration precision with structural strength. This layered construction maximizes effective screening area while maintaining flow capacity under operating conditions.

FLC500 Flat Shaker Screen Parameters

Name	FLC500 PWP Screen
Screen type	Hook strip
Wire cloth material	Stainless steel 304 or 316
Wire cloth layers	2～3
Mesh size	20～400
Dimensions	1070 x 570 mm
Weight	7kg

Advantages

Wear-resistant wire cloth extends screen service life
Higher flow rate compared to single-layer screens
Fine solids removal down to the mesh cut point
Resists blinding under continuous drilling fluid exposure
Quick installation and removal without tools
Backing plate perforation pattern limits panel expansion and reduces screen failure

About TR Solids Control

Xi'an TR Solids Control manufactures and exports Tianrui-brand FLC500 flat shaker screens compatible with Derrick FLC500 series shale shakers. All products meet API standards and are API-certified, ensuring reliable fit and consistent performance across field operations.
