Pump Impeller

TR pump impellers are replacement parts for Magnum centrifugal sand pumps. Open and semi-open designs with hard iron or high chrome construction resist wear in abrasive drilling fluids.

Product PDF Product Catalogue Inquiry

Description

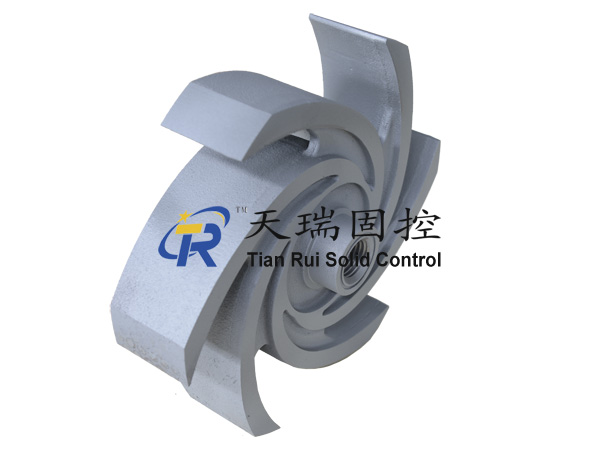

Pump Impeller for Centrifugal Sand Pumps

Pump impeller is one of the key hydraulic components of a centrifugal sand pump. During operation, the rotating impeller generates the flow and pressure required for drilling fluid circulation and slurry transfer.

TR replacement pump impellers are designed for Mission MAGNUM CENTRIFUGAL and 2500 SUPREME sand pumps. The impellers feature a wide-blade design and larger suction eye to improve solids passage and maintain smooth fluid flow when handling abrasive drilling fluids.

Manufactured from alloy cast iron or high chrome alloy, TR pump impellers are suitable for oilfield drilling, solids control systems, and abrasive fluid applications.

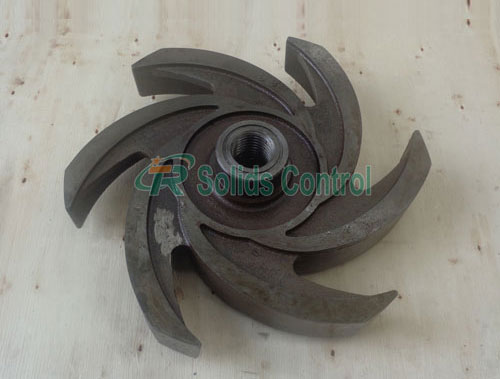

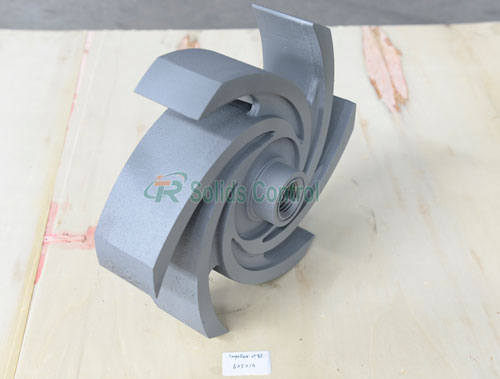

Pump impeller for drilling mud and solids control systems Pump impeller for centrifugal sand pump replacement

Mission MAGNUM CENTRIFUGAL Pump Impeller Replacement Parts List

Number	Mision Impeller Part No.	Description	Material
1	19204-XX-30	Impeller 3x2x13	Alloy Cast Iron
2	19206-XX-30	Impeller 4x3x13	Alloy Cast Iron
3	19224-XX-30	Impeller 5x4x14	Alloy Cast Iron
4	19121-XX-30	Impeller 6x5x11	Alloy Cast Iron
5	19121-XX-30	Impeller 6x5x14	Alloy Cast Iron
6	19121-XX-30	Impeller 8x6x11	Alloy Cast Iron
7	19116-A0-30	Impeller 8x6x14	Alloy Cast Iron

2500 SUPREME Series Sand Pump Impeller Parts List

Number	Mision Impeller Part No.	Description	Material
1	H19204-XX-30	Impeller	Alloy Cast Iron
2	H19206-XX-30	Impeller	Alloy Cast Iron
3	H2523-XX-30	Impeller	Alloy Cast Iron
4	H2524-XX-30	Impeller	Alloy Cast Iron
5	H2524-XX-30	Impeller	Alloy Cast Iron
6	H2524-XX-30	Impeller	Alloy Cast Iron
7	H2525-A0-30	Impeller	Alloy Cast Iron

Features of Impeller

High Chrome Wear-Resistant Material
The pump impeller is made from high chrome material to provide wear resistance and mechanical strength when handling abrasive drilling fluids.
High Hardness for Abrasive Applications
With a hardness of 450 HB, the impeller provides better wear and corrosion resistance than standard cast iron. It is suitable for drilling fluids containing sand and solid particles.
Heavy-Duty Solid Structure
The thick-wall solid construction improves durability during continuous operation in demanding drilling conditions.
Wide Blade Design for Smooth Fluid Flow
The wide blade design and larger suction eye improve fluid passage and support smooth pumping when transferring drilling mud with solid particles.
Mission Pump Replacement Compatibility
Designed to match Mission MAGNUM CENTRIFUGAL and 2500 SUPREME pump specifications, TR impellers allow convenient replacement during maintenance.

Applications of Centrifugal Pump Impeller

TR pump impellers are used in centrifugal sand pump applications, including:

Oilfield drilling fluid systems
Solids control systems
Drilling mud circulation
Sand and slurry transfer
Abrasive fluid handling

They are suitable for pumping fluids containing sand, drilled cuttings, and other solid particles generated during drilling operations.

Why Choose TR Pump Impellers?

TR Solids Control manufactures replacement pump parts with in-house machining and production capabilities for oilfield applications.

With accurate dimensions and consistent material selection, TR replacement impellers provide a practical option for Mission pump maintenance and field replacement.

FAQ

How do I know when a pump impeller needs to be replaced?
A worn impeller may reduce pump flow, lower discharge pressure, or increase vibration during operation. Regular inspection helps identify wear before it affects normal pumping.
What causes pump impeller wear?
Pump impeller wear is mainly affected by abrasive solids, sand concentration, fluid properties, pump speed, and operating conditions. Selecting suitable materials can reduce wear and extend the impeller's service interval.
How can I choose the right pump impeller?
Impeller selection depends on the pump model, fluid type, solids content, and operating conditions. Providing the pump information or existing part details helps identify the suitable replacement.
Can TR provide replacement impellers based on samples or drawings?
Yes. TR can manufacture replacement impellers from customer samples, drawings, or part numbers to meet various pump maintenance needs.
How can I improve pump impeller service life?
Selecting suitable materials and operating the pump under recommended conditions can help reduce impeller wear and extend service life.
