Vertical Flare Ignition Device

The Vertical Flare Ignition Device ignites combustible gas separated from drilling fluid by a mud gas separator and burns it at the flare.

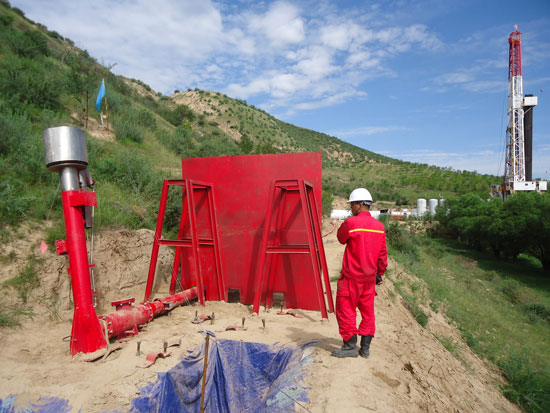

The unit consists of a vertical flare torch, fixed control cabinet, and portable ignition control box. A 50 m five-core armored cable connects the two control units. The fixed control cabinet is installed at the rig site, while the portable control box enables operators to initiate ignition from a safe distance.

Key Advantages

1. Manual and remote electronic ignition with a 100–150 m remote control range.

2. AC/DC power switching, with solar charging available on the TRYPD-20/3T.

3. PLC control and high-voltage ignition for fast startup.

4. 304 stainless steel weatherproof structure for outdoor operation.

5. ATEX-compliant configurations for hazardous-area installation.

Flare Ignition Parameters

Working Principle

Combustible gas from the mud gas separator enters the flare through the gas discharge line.

When the ignition system is activated, the ignition unit generates a high-voltage spark at the flare torch.

The spark ignites the gas at the flare tip, starting combustion.

Application

• Oil & Gas Drilling

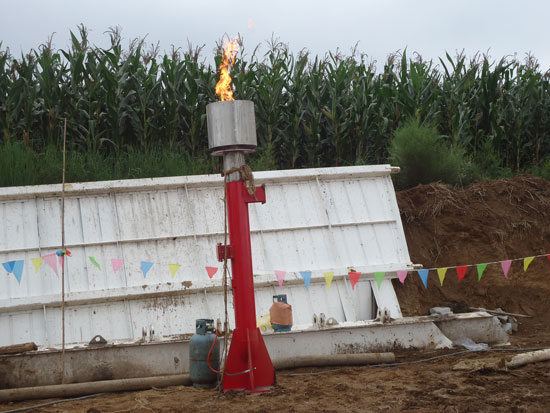

  Matched with mud gas separators to ignite combustible gas separated from drilling fluid during drilling operations.

• Refineries

  Applicable for controlled ignition and combustion of waste combustible gas in refinery flare systems.

• Gas Transmission Facilities

  The device is suitable for ignition applications at gas transmission facilities where combustible gas is routed to a flare.

Certifications & Factory Testing

ATEX-compliant configurations are available for hazardous-area installation.

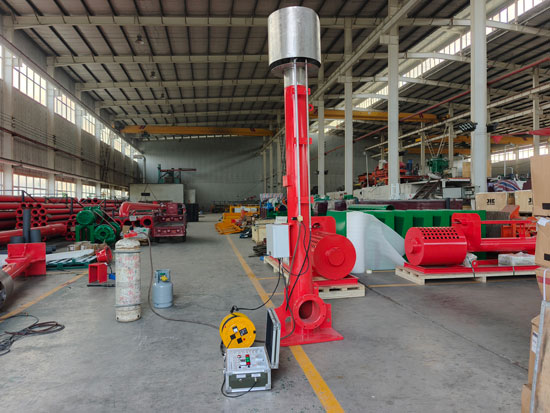

Before shipment, each unit undergoes assembly, electrical checks, and functional testing to verify the ignition system and overall operation.
