Drilling Mud Treatment System: Tech, Optimization & Outlook

Overview of the Drilling Mud Treatment System

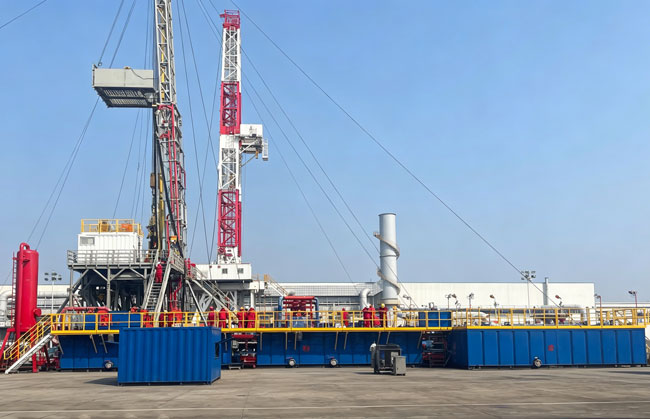

The Drilling Mud Treatment System is a core supporting equipment in the modern oil and gas drilling industry, known as the "lifeblood" of drilling operations. Also called drilling fluid purification system or drilling waste management system, this integrated system combines solid-liquid separation, mud purification, resource recycling, and harmless waste treatment. The Drilling Mud Treatment System ensures stable drilling fluid performance, addresses environmental pollution and resource waste from drilling mud discharge, and adapts to the rising performance requirements driven by offshore drilling, shale gas exploration, and other high-difficulty drilling technologies.

Optimized Core Components of Drilling Mud Treatment System

High-performance drilling mud treatment systems rely on optimized core components to form an efficient closed-loop operation. As a professional manufacturer, TR Solids Control takes these components as key R&D priorities, whose performance directly decides system efficiency and stability. The main optimized components of the Drilling Mud System include:

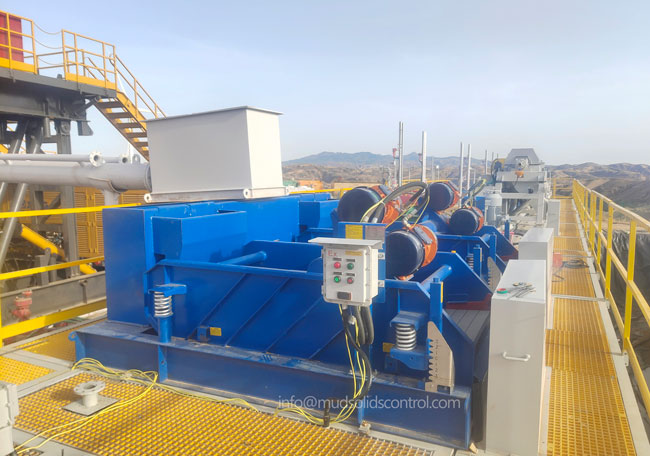

1. High-Efficiency Shale Shaker

As the primary purification unit of the mud treatment system, the shale shaker acts as the first defense to remove drill cuttings over 74 microns from returned drilling mud.

Optimized with 800-1600 RPM adjustable high-frequency vibration and high-strength wear-resistant screens, it adapts to diverse drilling conditions for higher separation efficiency.

It separates solids from mud via vibration and gravity: purified mud proceeds to secondary treatment while large cuttings are collected for harmless disposal, lowering downstream load and boosting overall mud system performance.

2. Enhanced Desander and Desilter

After primary purification by the shale shaker,  the Mud Treatment System uses enhanced desanders and desilters remove medium and fine solid particles. The optimized desander adopts an upgraded cyclone structure to separate 40–74 micron solids by centrifugal force. A high-pressure sand pump feeds mud into the cyclone; solids are pushed to the wall and discharged, while purified mud flows into the desilter. Equipped with small-diameter cyclones, the desilter eliminates 15–40 micron particles to further improve mud purification quality.

3. Intelligent Decanter Centrifuge

Fine purification core equipment for drilling mud treatment systems.

It removes ultra-fine solids under 5 microns such as colloids and clay particles. Featuring intelligent automatic control, it adjusts rotating speed (1600-3800 RPM) and feed rate in real time for stable unmanned operation. High centrifugal force settles solids on the drum wall, which are discharged by the screw conveyor, while clarified mud is recycled. It effectively recovers barite and weighting materials, cutting resource waste and drilling costs.

4. Integrated Auxiliary Equipment System

Auxiliary equipment for drilling mud treatment systems includes vacuum degassers, intelligent mud agitators, sealed screw conveyors and corrosion-resistant mud tanks.

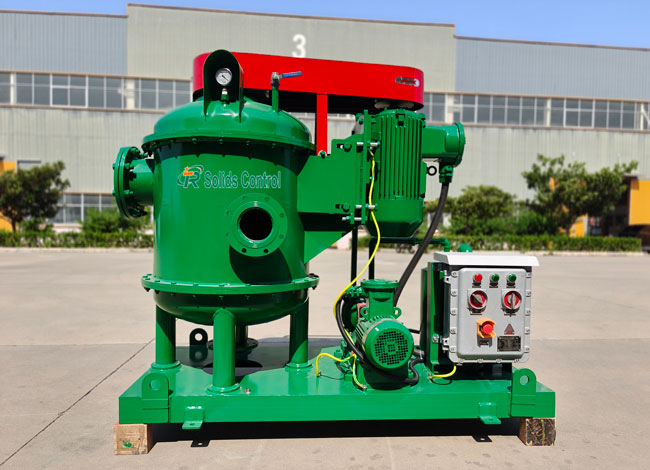

The vacuum degasser removes harmful gases (methane, H₂S) to ensure well control safety and stable mud performance. The mud agitator prevents solid settlement and maintains mud uniformity; the sealed screw conveyor avoids secondary pollution; the corrosion-resistant mud tank extends service life. All work together to form complete system circulation.

Working Mechanism of the Optimized Drilling Mud Treatment System

The optimized Drilling Mud System uses a multi-stage progressive purification mechanism to remove different-sized solids from drilling mud, achieving mud recycling and harmless waste treatment.

The Mud System workflow is: 1) Drilling mud with drill cuttings returns to the surface and enters the shale shaker for primary purification. 2) Primarily purified mud passes through desander and desilter for secondary purification. 3) Mud enters the decanter centrifuge for fine purification, adjusting density and viscosity. 4) Vacuum degasser removes entrained gases, and auxiliary equipment ensures stability. Purified mud is reused, while solid waste is harmlessly treated, making the Mud Treatment System essential for sustainable drilling.

Practical Value and Industry Impact of the Drilling Mud Treatment System

The Drilling Mud Treatment System delivers significant value to the oil and gas industry by protecting the environment (reducing waste, increasing mud recovery, meeting environmental standards), saving costs (recycling mud and weighting materials), and improving efficiency (stabilizing mud performance, reducing tool wear/accidents, boosting drilling speed and safety).

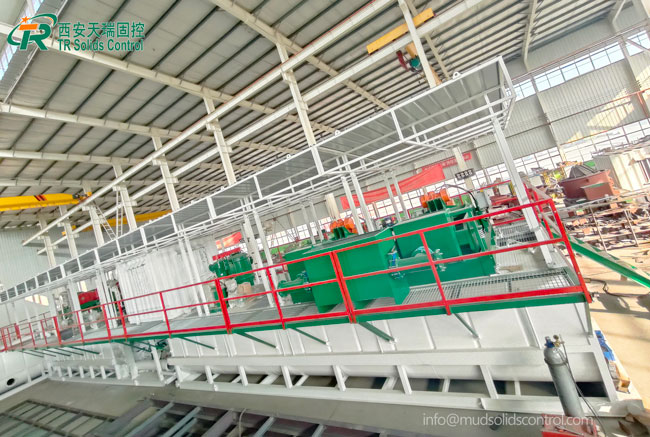

TR Solids Control Equipment Manufacturer is professional provider of Drilling Mud Treatment System solutions, with extensive experience in R&D, production, and customization of Mud Treatment System. Backed by a professional team, TR Solids Control offers integrated services and customized solutions for onshore, offshore and shale gas drilling. TR Mud Treatment System meets API and ISO standards, with high purification efficiency, stable operation, intelligent control, and easy maintenance,helping enterprises reduce costs and improve environmental performance.

Future Development Trends of the Drilling Mud Treatment System

With the oil and gas industry moving toward intelligence, greenization and high efficiency, the Drilling Mud Treatment System will focus on three trends:

1. Intelligent upgrading: The Drilling Mud System will integrate IoT, big data, and AI for real-time monitoring, fault early warning, and automatic parameter adjustment.

2. Green development: The Drilling System will optimize processes to increase mud recovery and solid waste utilization, striving for zero discharge.

3. Modular integration: The Drilling Mud Treatment System will adopt modular design to reduce footprint, improve mobility, and adapt to mobile drilling.

TR Solids Control, a leading solution provider, follows these trends, increases R&D investment and innovates technologies to develop intelligent, green and efficient systems. It is committed to meeting customer needs, promoting industry development and being a reliable partner for global drilling enterprises.

The Drilling Mud Treatment System is key equipment to modern oil and gas drilling, ensuring safety, protecting the environment and reducing costs. Continuous optimization of its components and technology enhances performance, supporting sustainable drilling. Amid stricter environmental demands and advancing drilling tech, high-performance systems have broad market prospects. Professional manufacturers like TR Solids Control will drive innovation, fostering the industry's green, efficient and intelligent development.
