The Role and Application Value of Mud Purification Equipment in Geological Exploration

In geological drilling, rotary piling, horizontal directional drilling (HDD) and other projects, mud is used to carry cuttings, cool the bit, and stabilize the borehole wall. As drilling depth increases, the mud continuously mixes with cuttings and sand grains, causing its performance to deteriorate. Without effective mud purification, light consequences include reduced efficiency and equipment wear, while severe cases can lead to stuck pipe or borehole collapse. This calls for mud purification equipment (commonly known as mud desanding device or piling desander), which is indispensable supporting equipment for geological exploration.

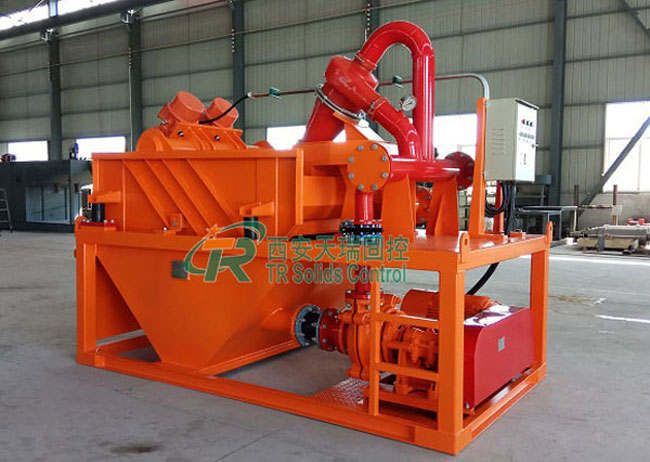

The mud desanding device is a key equipment for mud purification. Through centrifugal separation, shale shaker screening and other technologies, it quickly separates coarse sand and cuttings from the mud, effectively controls the sand content, restores the mud's lubricating, cooling, and wall-stabilizing functions, ensures continuous drilling operation, and reduces bit wear and drilling efficiency decline. The reliable mud purification unit fundamentally solves the problem of rapid mud degradation, enabling mud recycling, lowering construction costs, avoiding safety hazards, and meeting environmental requirements.

The mud purification equipment is responsible for comprehensive mud purification and recycling. It integrates desanding, desilting, dewatering and other functions. Compared with traditional natural settlement methods, the purification efficiency is greatly improved, thoroughly removing fine impurities and harmful solids from the mud. The purified mud can be directly reused in drilling operations, significantly reducing the amount of new mud preparation and waste mud discharge. In high‑altitude and cold regions such as the Qinghai mining area and Muli mining area, mud purification equipment, with its good environmental adaptability, effectively solves the problems of low efficiency and serious resource waste in traditional mud treatment. It saves consumables like bentonite and fresh water, reduces transportation costs, and improves the economics of exploration operations.

In piling construction exploration scenarios, the mud generated during piling has a very high sand content. Direct discharge not only wastes resources but also pollutes soil and water, failing to meet the "zero‑discharge" green exploration requirement. The piling desander through efficient screening and dewatering separates sand from the mud; the separated dry solids can be directly used for backfilling, while the purified mud can be recycled for piling operations, achieving resource recovery. TR Solids Control produces piling mud purification equipment, which, with mature technology and manufacturing strength, has become the preferred equipment for such scenarios. TR Solids Control has deep expertise in the field of mud purification equipment. Its piling mud purification equipment adopts integrated purification technology of “hydrocyclone + high‑frequency fine screen”, combining screening and desanding functions in a compact structure that saves space – the footprint is reduced by 30%‑50% compared with traditional equipment, making it suitable for space‑limited urban piling sites. At the same time, high‑wear‑resistant materials are used for components to adapt to piling exploration in complex formations, effectively solving the problems of high sand content and low treatment efficiency. It not only solves environmental compliance issues but also reduces the cost of waste mud hauling and disposal, aligning with the green and low‑carbon development direction of geological exploration.

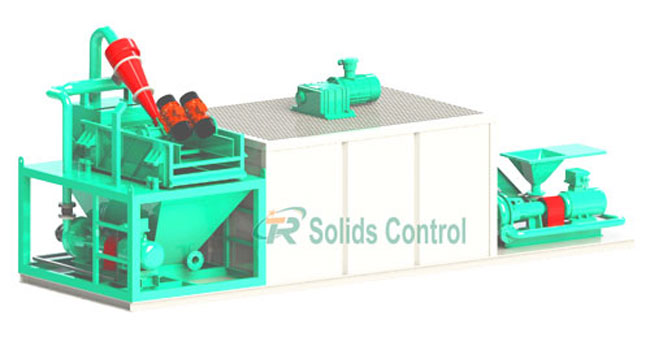

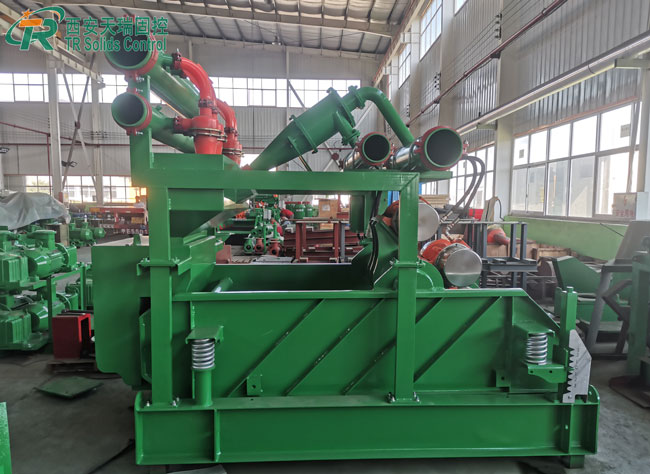

TR Solids Control's piling mud recycling system is also widely used in oil drilling, building piling, trenchless utility installation, and metro shield tunneling. The TRZX series piling desander / desilter is dedicated to building piling. It consists of hydrocyclones, shale shaker,sand pump, electrical control, and mud tank, and can be used as primary or secondary purification equipment. It has a double‑deck shaker screen, with processing capacity ranging from 50 to 200 m³/h and separation size of 25 μm or 50 μm. The TRZX‑50/25 model has a processing capacity of 60 m³/h, removing solid particles ≥25 μm, improving hole quality, shortening hole cleaning time, and reducing stuck‑pipe incidents.

The application of mud purification equipment also improves the accuracy of geological exploration data. Clean mud reduces the interference of cuttings with drilling fluid properties, making observations of underground formations and core sampling more accurate during drilling, avoiding geological judgment deviations caused by excessive impurities in the mud. This provides reliable geological data for subsequent resource evaluation and engineering design. Furthermore, such equipment features modular design for easy transport, quick assembly, and relocation, suitable for both narrow urban sites and remote field work areas. PLC intelligent control system monitors operating parameters in real time, enabling fault early warning and automatic adjustment, reducing manual operation intensity, and further enhancing the convenience and safety of exploration operations. This is particularly evident in the piling mud purification equipment manufactured by TR Solids Control.

With the widespread adoption of green construction concepts, the requirements for environmental protection, high efficiency, and energy saving in the field of geological exploration are constantly increasing. The application value of mud purification units, mud desanders / de‑sanding units, and piling desanders is becoming more prominent. They effectively solve the traditional problems of low treatment efficiency, resource waste, and environmental non‑compliance. Through mud recycling and resource utilization of tailings, they achieve combination of economic, social, and environmental benefits. TR Solids Control's mud purification equipment has passed rigorous quality certifications, and the configuration can be customized according to exploration needs, further improving the efficiency and environmental friendliness of piling exploration and helping contractors reduce operating costs.
