The Replacement Swaco Mud Cleaners Shipped to Ukraine For Rig Solids Control System

In line with the national "Belt and Road" initiative, TR Solids Control is dedicated to expanding trade in countries along the route and boosting overseas cooperation in oil solids control equipment. Recently, the custom made mud cleaner for Ukrainian client has completed production and commissioning, ready for shipment. As complementary device for the drilling rig solids control system, it will empower local drilling mud purification operations.

The Tianrui mud cleaner is engineered for high-efficiency mud purification in drilling. Integrated with desander, desilter and shale shaker, it works downstream of the drilling fluid shale shaker in solids control system. Its superior purification performance, stability and adaptability effectively remove solid particles from drilling mud, maintain stable mud properties, and improve drilling efficiency and quality.

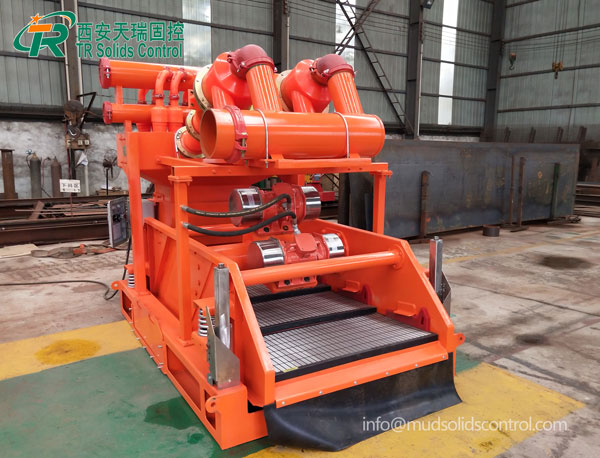

Structurally, the mud cleaner consists of inlet/outlet pipes, hydrocyclones and shale shaker. The hydrocyclone is an integrated unit, with its top cover, upper cone and lower cone connected via flanges and clamps. Equipped with flower cap low flow sand discharge port at the bottom, it ensures excellent sealing and stability. Targeting pre-treated mud from the shale shaker, the mud cleaner precisely removes 15 - 60μm solid particles, significantly reduces mud solid content, recycles useful solids and enables mud recycling. This not only cuts production costs but also alleviates environmental pressure.

Tianrui mud cleaner offers high cost - effectiveness and is perfect replacement for Swaco mud cleaner, with multiple advantages in performance and design. Integrated into single processing module, it features compact structure, small footprint and powerful functions, with processing capacity ranging from 120 to 360 m³/h to adapt to diverse drilling conditions. The hydrocyclone unit is equipped with 4 - inch desilter hydrocyclones and 10 - inch desander hydrocyclones, all made of polyurethane for outstanding wear and corrosion resistance, thus extending equipment service life. The shale shaker is driven by international brand vibration motors (Martin or Oli), providing strong excitation force for stable and reliable operation to support high-efficiency purification.

Tianrui mud cleaner strictly complies with API standards and relevant ISO specifications, meeting international drilling equipment quality requirements and adapting to complex drilling geological conditions in Ukraine.

1. Overall heat treatment of the shaker box to release welding stress, suitable for high - intensity excitation work

2. Mechanical ratchet wrench gear fast - clamping for shaker screen installation, enabling easy disassembly and long - term use

3. High - temperature, corrosion and wear - resistant shaker screen clamping wedges

4. Premium Italian OLI vibration motors

5. Polyurethane sealing between the shaker frame and shaker screen for long service life and easy replacement

6. Stainless - steel support strips at the bottom of the shale shaker for strong corrosion resistance

7. Explosion - proof aluminum alloy/stainless - steel electric control box with excellent sealing and corrosion resistance

8. Pre - tensioned shaker screen for quick disassembly and replacement

9. Switchable bottom and side slurry discharge modes for flexible on - site installation

10. Synchronized mechanical adjustment of shaker box angle at both ends without shutdown, adapting to different processing capacities

With 15 years of focus on oil solids control equipment, TR Solids Control provides one - stop solutions covering design, R & D, production, sales and service. Leveraging mature technical experience and rich application expertise, Tianrui manufactures full range of solids control products that can replace international brands like Derrick and Swaco. The replacement technology for Swaco drilling fluid desander - desilter integrated machines is now well - established, with customizable R & D and production services available to meet specific client requirements.

This shipment to Ukraine marks another key achievement for TR Solids Control in expanding the "Belt and Road" market. Going forward, Tianrui will continue to focus on technological innovation in solids control equipment, delivering high - standard, high - quality products to drive green and efficient development of the global drilling industry.
