Shale Shaker Parts Manufacturer & Professional Shaker Screens Factory

Mud Shaker Screens are the first line of defense for solids control in oilfield drilling fluids, and the quality of shaker screens directly determines drilling efficiency, drilling fluid recovery, and operational costs. Xi'an TR Solids Control, an API-certified manufacturer with 26 years of industry experience, is not only a leader in solids control equipment but also shaker screen factory, capable of covering the complete range of accessories and replacement screens for its own equipment and mainstream international brands (Derrick, SWACO, Brandt).

I. Core Shaker Screen Products

1. Wave Shaker Screens (3D/Pyramid Type): Tianrui's star product, with a wavy undulating mesh surface. The effective filtering area is 30%-40% higher than that of traditional flat shaker screens, the processing capacity is increased by 25%, and the anti-clogging performance is improved by 70%. Made of 304/316 stainless steel, the mesh size ranges from API20 to API325, suitable for TRZS full series, Derrick 500 PMD, Hyperpool and other models, supporting frame-type and hook-edge quick installation. It is especially suitable for high-load working conditions of oil-based/water-based mud.

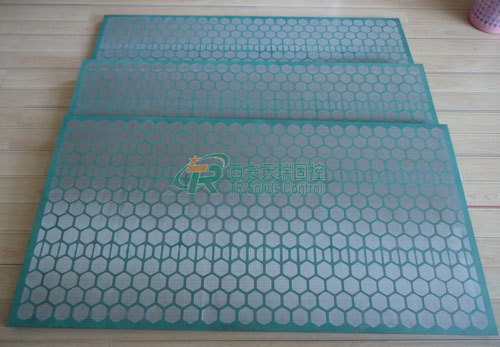

2. Flat Screens: Simple structure and cost-effective, suitable for upper-layer coarse screening and large-particle cuttings pretreatment. Commonly used in small-size shale shakers such as TRZS752, it can be customized with different apertures and tensioning methods.

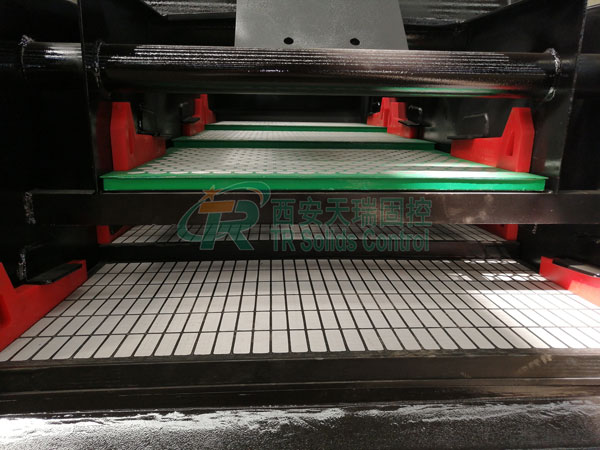

3. Composite Screens (2-3 layers): Multi-stage filtration design, composite of mesh cloth and metal backing plate, with high screening accuracy and long service life, suitable for fine solids control and deep filtration applications.

4. Polyurethane Screens: High elasticity, low noise, fatigue resistance, and its wear resistance life is 3-5 times that of ordinary steel screens, suitable for extreme working conditions with high wear and large processing capacity.

5. Hook Strip & Wedge Block Screens:  Hook-edge shaker screens can be replaced within 3 minutes, suitable for high-frequency maintenance scenarios; wedge-fixed type has uniform tension and resistance to high-G vibration, suitable for strong excitation equipment such as dry shale shakers.

II. Full-Series Shale Shaker Parts Supply

Beyond screens, TR Solids Control provides a full range of shaker wear parts and components:

1. Vibration motors, spring sets, shaker box frames, seals, tension bolts, quick locking devices;

2. Customized shaker screen pressure strips, support beams, vibration shafts;

3. Cyclones, polyurethane liners supporting desanders and desilters, realizing one-stop procurement of solids control system parts.

III. International Brand Replacement Solutions & Quality Assurance

To solve the pain points of long procurement cycle and high cost of imported equipment parts, TR Solids Control has launched precision replacement shaker screens and parts for brands such as Derrick, such as wave shaker screens for Derrick 500 PMD and Hyperpool. The size of 1053×697mm is fully matched, and the performance indicators meet or exceed the original factory standards, with better price and shorter delivery time. All products comply with API RP 13C standard, pass ISO quality system certification, and undergo strict tension, corrosion resistance and vibration tests before leaving the factory.

IV. Customization & Full-Process Services

1. Customization Capacity: Can customize shaker screens and parts with special materials (316L stainless steel), non-standard sizes and special mesh sizes according to customer working conditions (temperature, corrosion, mud type, processing capacity);

2. Technical Support: Provide shaker screen selection guidance, on-site installation and commissioning, fault diagnosis and service life optimization solutions;

3. Delivery & After-Sales: Domestic spot supply with 24-hour response, international orders are quickly shipped through Xi'an Port, providing long-term quality assurance and spare parts reserve services.

V. Selection & Procurement Suggestions

1. Select Material by Mud Type: stainless steel/composite shaker screens are preferred for oil-based mud; polyurethane shaker screens can be selected for water-based mud to reduce costs;

2. Select Fixing Method by Vibration Intensity: wedge-fixed type is used for high-G dry shale shakers; hook-edge or frame-type is used for conventional drilling;

3. Prioritize suppliers with API certification, own factories and alternative solutions to avoid operation impact caused by mismatched parts or long-term stockouts.

Xi'an Tianrui Petroleum Machinery Equipment Co., Ltd. (TR Solids Control) is a manufacturer integrating R&D, production, and sales of solid control equipment. As a specialized shaker screen factory, we produce screens for our own shakers and provide fully interchangeable screens for major brands like Derrick, SWACO, and Brandt. We supply screens ranging from API 20 to API 400 mesh, catering to various particle size separation needs.

Contact: Phone: 029-86332919 Email: info@mudsolidscontrol.com Website: www.xatrsy.com
