TRZS703 Drilling Shale Shaker and Spare Parts Delivered to Large Oilfield

A batch of TRZS703 drilling shale shakers and matching spare parts from TR Solids Control have been delivered to large oilfield after strict quality inspection, boosting efficient oilfield drilling operations.

As core component of oil drilling solids control systems, the TRZS series shale shakers are designed for separating large drill cuttings from drilling fluids. They maintain stable drilling fluid performance, laying solid foundation for the operational efficiency and service life of subsequent solids control equipment, and serve as indispensable first-stage solids control devices in oil drilling.

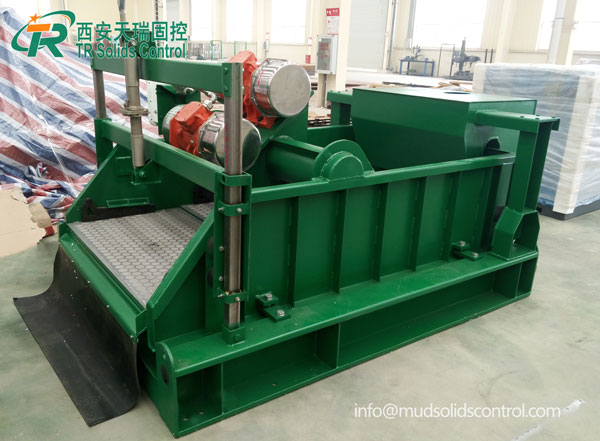

The TRZS703 is linear shale shaker, widely recognized and applied in oilfield drilling mud treatment for its stable performance and strong adaptability.

Core Parameters of TRZS703 Shale Shaker：

1. Processing Capacity: 120m³/h

2. Vibration Amplitude: 6mm

3. Shaker Screen Area: 2.6㎡

4. Vibration Motor: 1.5×2kw

5. Exciting Force: 7G

In terms of product craftsmanship, the TRZS703 shale shaker undergoes sandblasting and pickling before being coated with marine-grade heavy-duty anti-corrosion paint, ensuring excellent corrosion resistance and significantly extending service life. Integrated with advanced design and processing technologies of domestic and foreign counterparts, the TRZS703 is widely used for solids-liquid separation in oil drilling, chemical engineering, metallurgy, mining and other fields. Customized single, double and triple shale shaker configurations are available upon customer requests.

Advantages of TRZS703 Drilling Shale Shaker

● Shock absorption springs adopt metal-rubber composite materials, effectively reducing vibration impact and prolonging the service life of the shale shaker.

● Vibration motors: Equipped with international brand motors (Martin or OLI), with IEC EX and ATEX explosion-proof standards available to adapt to hazardous oilfield working conditions.

● Screen box material: Made of high-strength alloy with excellent sealing performance; the bottom frame of screen box adopts stainless steel, enhancing corrosion resistance and extending the service life of the drilling shale shaker.

● Overall heat treatment of screen box to withstand long-term operation under high excitation intensity

● Convenient and reliable angle adjustment of the screen box, allowing flexible adaptation to different screening requirements.

● Electrical components: Adopt branded products from Siemens and Schneider to ensure stable and safe operation of the shale shaker.

● Frame-type shale shaker screen with wedge-type compression device for quick screen replacement

● Multiple feeding modes (rear-mounted mud tank, top-mounted mud tank, funnel-type feeding box) for diverse application scenarios

As the first-stage treatment device in mud solids control system, the shale shaker's screening effect directly impacts the efficiency and service life of subsequent solids control equipment. The TRZS703 shale shaker from TR Solids Control boasts low energy consumption, high screening precision, low operating noise, easy installation and simple maintenance. It excels not only in oil drilling but also in solids-liquid separation across metallurgy, building materials, chemicals, cement, ceramics, grain and food industries.

TR Solids Control is professional manufacturer of oil drilling shale shakers, with years of focused experience in oilfield solids control equipment sector and mature R&D, production and sales system. Our company provides cost-effective, high-quality equipment, along with professional after-sales technical service team offering full-process support including equipment installation guidance, commissioning, maintenance and repair, effectively resolving customer concerns and helping clients across industries improve operational efficiency and reduce production costs.
