TR mud non-landing system is applied in Daqing Oilfield

The mud non-landing system refers to system in process of oil drilling that collects and treats waste mud through a series of equipment and processes, preventing it from being directly discharged into the environment, thereby achieving environmentally friendly production.

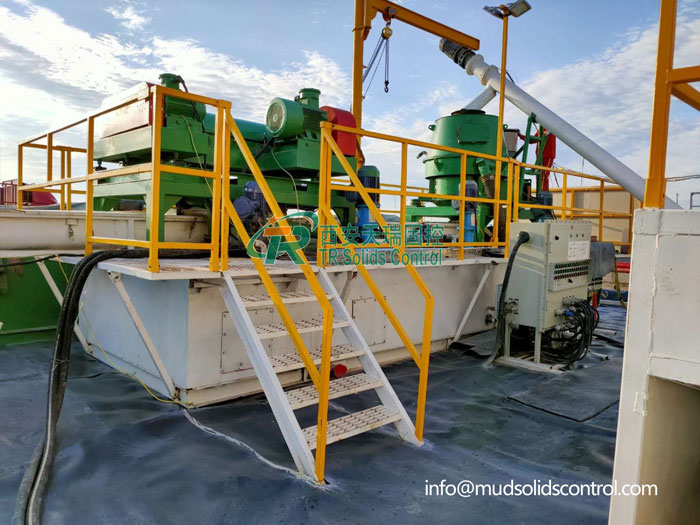

TR Solids Control's customized mud non-landing system is used in Daqing Oilfield. The solids control equipment includes: high-speed centrifuges, sand pumps, vertical drill cuttings dryers, screw conveyors, drying shale shakers, etc., to treat waste mud and collect it in mud tanks.

Automated drilling rigs are equipped with mud non-landing device

The environmental protection system in Daqing Oilfield collects and treats the waste mud generated during the drilling process to prevent it from being directly discharged into the environment, achieving the clean operation goal of "no well fluid leaving the well, no well fluid falling on the ground, and no pollution on the ground".

Application of energy-saving and environmental protection circulation devices

Daqing Drilling has achieved "no mud falling to the ground" for small drilling rigs in oilfields and has also successfully solved the problem of "difficulty in removing sand from mud tanks". The system saves the team more than 5 hours of sand removal time per well, and the use of mud system has greatly saved costs for drilling teams. It has been promoted by Daqing Drilling.

Operation of oil-based mud and rock cuttings treatment system

TR Solids Control's oil-based drilling mud cuttings treatment system has been put into operation at the Daqing Oilfield drilling site. After the waste drilling mud cuttings are returned from the wellhead, they are conveyed to the cuttings dryer by screw conveyor. After processing, most of the dried cuttings are discharged, while the remaining liquid mud is pumped into a centrifuge for further separation. The separated fine cuttings are discharged, and the treated mud is reinjected into the mud tank for reuse.

Daqing Oilfield's mud non-landing system improves the recycling rate of mud and the utilization rate of drilling waste through the full-process control of "collection - separation - treatment - recycling".

TR Solid Control is a manufacturer of mud recovery systems, specializing in the design and development of solid control equipment for oilfield exploitation. It ensures that mud does not fall to the ground through dehydration and recycling.
