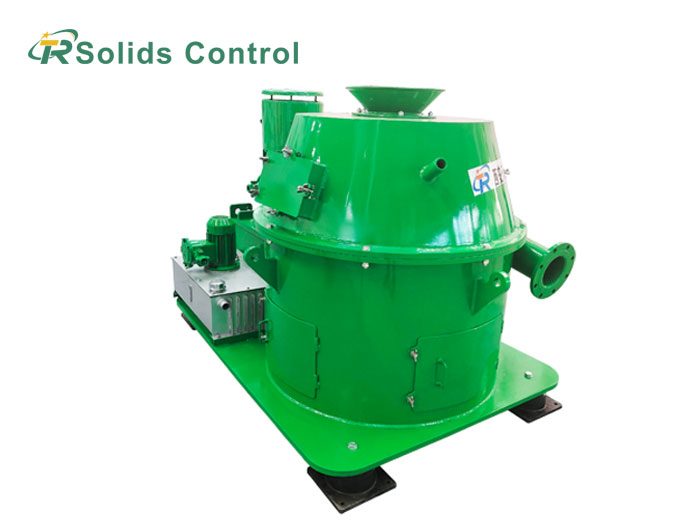

Vertical Cutting Dryer

Vertical cuttings dryers dry drilling cuttings via centrifugal force. Reduce oil content, realize waste recycling, meet drilling protection standards.

Product PDF Product Catalogue Inquiry

Decription

Drill cuttings dryer (also called mud dryer) is a type of centrifuge, designed to separate solids from suspensions by centrifugal filtration.

Its drum features many holes and is lined with filter media on the inner surface. When fed into the drum, the suspension rotates synchronously, generating immense centrifugal pressure. This pressure forces the liquid phase through the filter media and drum holes, while solids are retained on the media surface—achieving efficient solid-liquid separation.

With centrifugal force hundreds to thousands of times stronger than gravity, the dryer intensifies filtration, accelerates processing speed, and produces low-moisture filter cake. It is ideal for suspensions with solid particles ≥0.03mm, and widely applied in oil-based mud (OBM) zero-discharge systems.

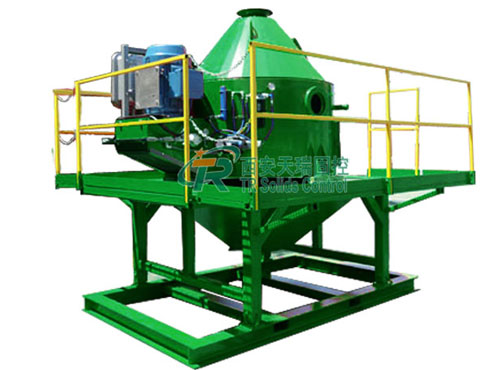

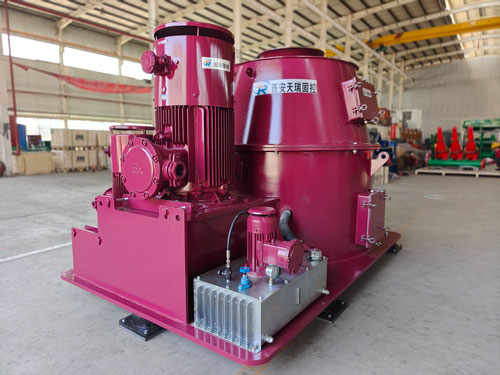

Drilling fluid dryer Drilling Cutting Dryer,Waste Cutting Dryer

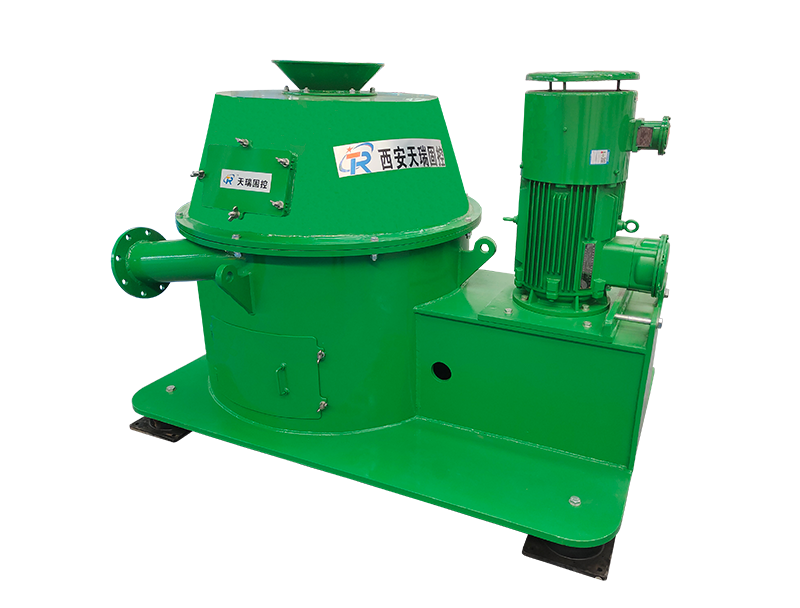

Vertical Cutting Dryer Competitive Advantage

Vertical Cutting Dryer specially designed for drilling cuttings from Oil Based Mud（OBM） and Synthetic-based Mud.

1.G force up to 420 G

TR normal vertical cuttings dryer speed is 900 RPM with G force up to 420 G and VFD drive is optional for adjust the speed.

2.Longer life

The discharge scraper is cast from high-chromium cast iron and has a long service life.

3.Longer life and easy replacement

Specially designed highly precise stainless steel screen to ensure your better separation, longer life and easy replacement. The screen itself is individually balanced for future replacement. And the screen is separated from the frame which allows you to change the screen only, not need to change the frame inside.

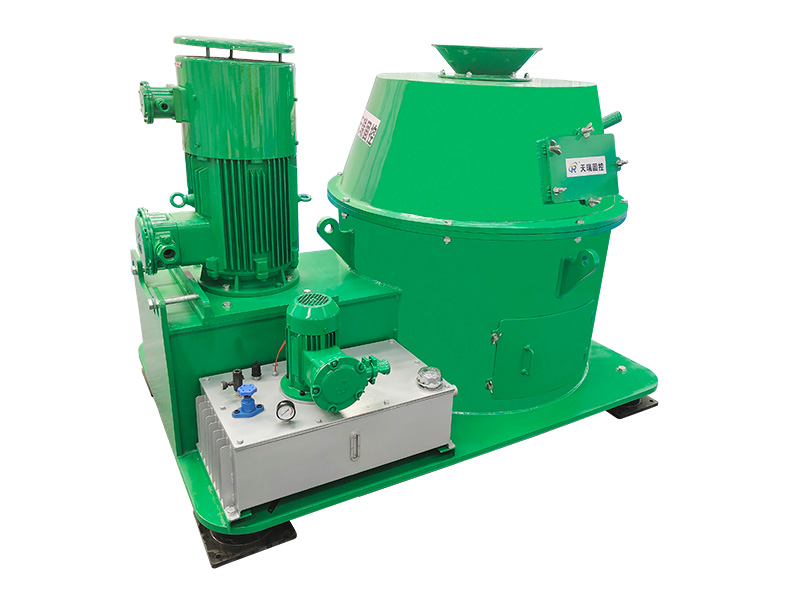

4.Individual oil lubrication system

Individual oil lubrication system with automatic alarm for pressure limit. The main motor and oil pump motor is interlocked with each other for avoiding the start of the main motor prior to the start of the oil pump motor.

5. VFD cuttings dryer control panel

VFD cuttings dryer control panel is made by stainless steel with Pressurized explosion proof. The PLC smart control allows you to adjust the speed and protect the machine more friendly. The air circulation through the cooling tubes allow you to use the VFD cuttings dryer in high temperature environment. The VFD is ABB or SIEMENS Brand, other main electric components are Schneider or SIENMENS Brand.

6.The drum of the spin dryer is made of alloy materials, which can effectively resist wear and corrosion.

7.The assembly of the high-pressure air knife can effectively prevent the screen basket from clogging.

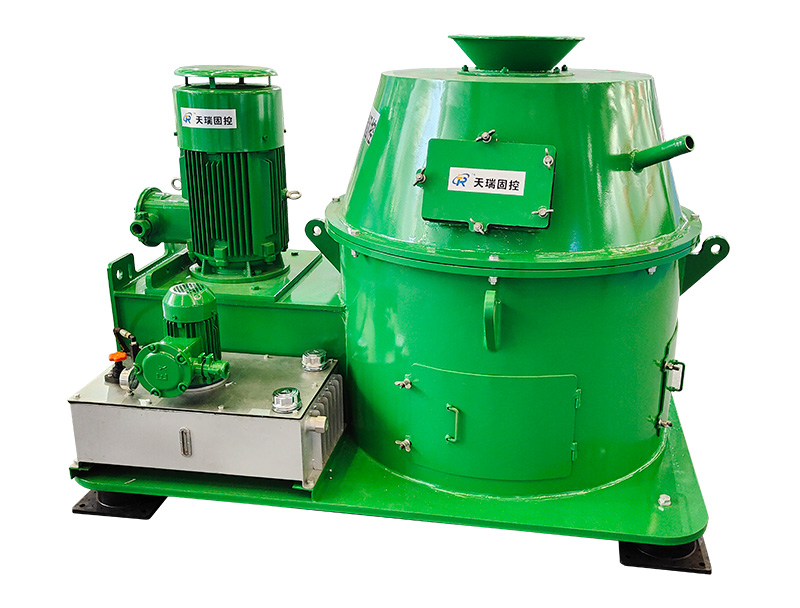

Vertical Cutting Dryer Specifications

Model	TRCD930	TRCD930-VFD	TRCD730	TRCD730-VFD
Treatment Capacity(Ton/h)	30～50	30～50	15～20	15～20
Drying Efficiency	≦5%	≦5%	≦5%	≦5%
G-force	421	421	357	357
Screen Basket Max Diameter(mm)	930	930	790	790
Screen Basket Gap(mm)	0.25～0.5	0.25～0.5	0.25～0.5	0.25～0.5
Rotary Speed(rpm)	900	0~900	900	0~900
Oil tank capacity(L)	60	60	60	60
Main Motor Power(kW)	55	55	22	22
Oil Pump Power(kW)	0.55	0.55	0.55	0.55
Washer Pump Power(kW)	4	4	4	4
Explosive-proof standard	EXdIIBt4/IECEX/A-TEX	EXdIIBt4/IECEX/A-TEX	EXdIIBt4/IECEX/A-TEX	EXdIIBt4/IECEX/A-TEX
Explosive-proof cabinet	STD	EXD	STD	EXD
Weight(kg)	4750	5000	3000	3200
Dimensions(mm)	2500x1650x1800	2500x1650x1800	1950x1370x1550	1950x1370x1550

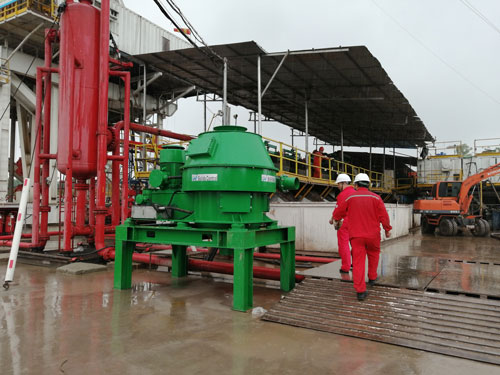

In mud non-landing system, Cutting Dryer is indispensable equipment for drying drill cuttings. The drill cuttings dryer is widely used in the non-landing treatment of oil-based mud, and the drill cuttings processed by cuttings dryer can already be piled up.

Vertical Cutting Dryer and Decanting Centrifuges used in drilling waste management system.Drilling waste management is a common name for drilling cuttings treatment, also known as drilling fluid non-grounding.Drilling Cuttings Waste Management System is used for taking drilling fluids from the drilling cuttings and clean the fluids for resuse. It is to maximize the recycling of drilling fluids, and minimize the drilling waste in order to save cost for operators.The TR Vertical Cutting Dryer uses centrifugal force to dry drilled solids in oil or synthetic base fluids.
