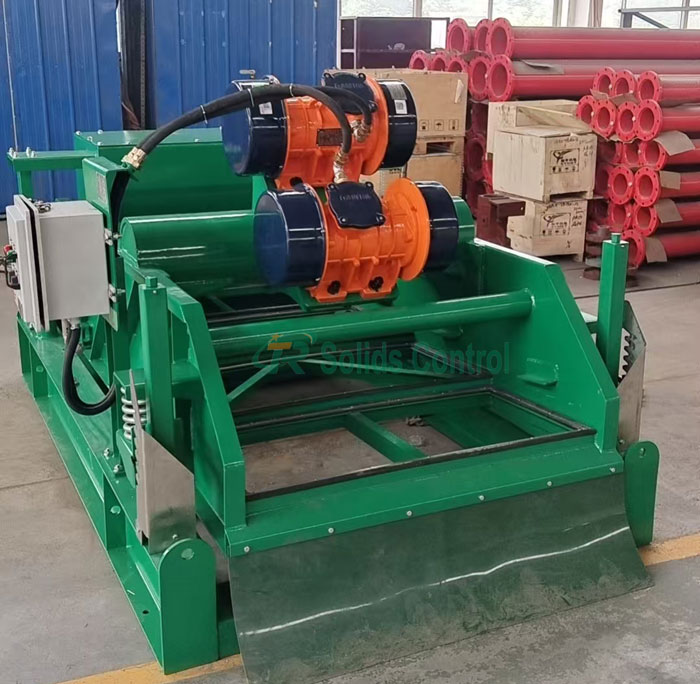

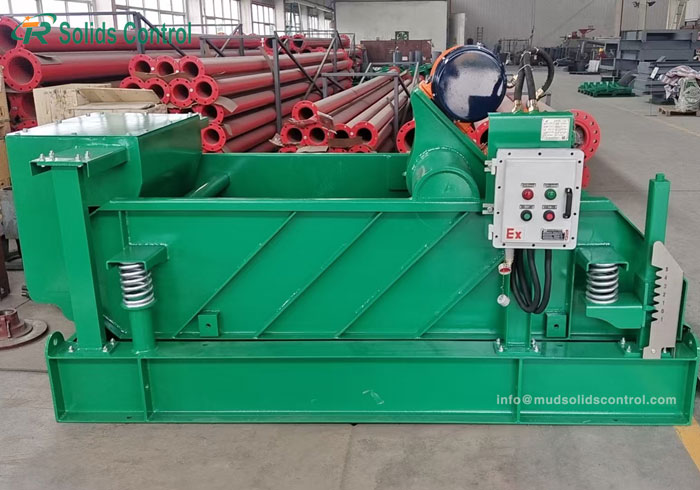

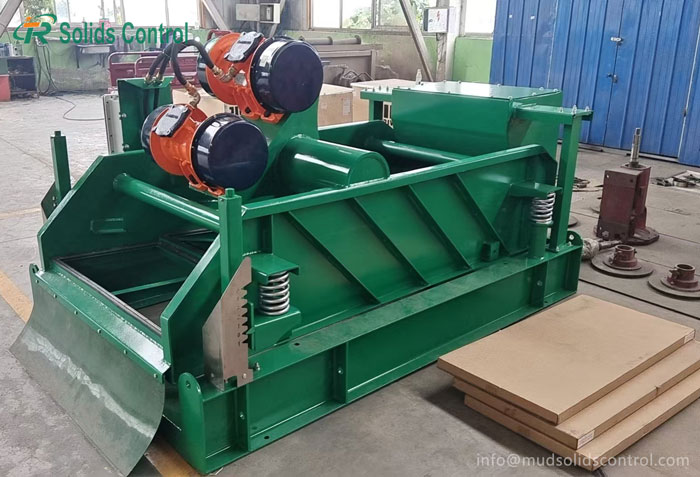

How to Choose TRZS584 Drilling Shale Shaker for HDD Project

Anyone working in Horizontal Directional Drilling knows mud handling is far different from standard vertical drilling. Changing ground conditions, mixed soil and rock cuttings, and thick, high-viscosity drilling fluids always make solids control one of the biggest on-site headaches. Most field crews rely on conventional mud shale shakers and end up fighting the same recurring issues: screen blinding, mud overflow, and inconsistent separation results. These small but persistent problems slow down progress and create unnecessary drilling fluid waste. Designed specifically for real-world HDD job site conditions, the TRZS584 linear motion shale shaker delivers reliable mud treatment where ordinary screens fall short. This guide walks drilling contractors through exactly how to select and configure a TRZS584 drilling shale shaker for common HDD projects.

Key Differences Between HDD Drilling and Conventional Vertical Drilling Conditions

HDD working parameters differ greatly from regular vertical oilfield drilling. These practical differences determine what shale shaker setup works best on actual job sites.

HDD circulating mud carries higher viscosity and finer solid content. Horizontal drills frequently pass through alternating soil, sand and soft rock layers, producing massive fine cuttings that standard screens cannot fully separate. Ordinary shale shakers leave these fine solids suspended in mud, ruining drilling fluid stability and causing unnecessary fluid loss on site.

Most HDD sites have tight working spaces. Projects commonly run along urban roads, municipal corridors and narrow construction zones, requiring compact, movable and low-noise equipment. Conventional heavy-duty oilfield shakers are bulky, loud and difficult to relocate, making them a poor fit for flexible HDD field work.

Effective mud recycling remains a core priority for modern HDD contractors, helping reduce field operating costs and meet local environmental discharge standards. The TRZS584 mud shale shaker solves these common site challenges, delivering consistent solid-liquid separation during long-term horizontal drilling tasks.

Practical Selection Criteria for TRZS584 Shale Shaker in HDD Projects

Match Shaker Capacity with On-Site Mud Circulation Volume

Throughput capacity sits at the top of every site selector’s checklist to avoid mud flooding and construction delays. Built for mid-to-large HDD drilling rigs, the TRZS584 high capacity shale shaker features enlarged effective screening area and steady linear vibration output, sustaining stable handling of high mud flow rates.

Seasoned on-site crews always reserve a 20% to 30% throughput margin for field operations. Even with stable daily mud circulation, the TRZS584 shale shaker’s surplus handling capacity copes well with sudden stratum changes and mud flow spikes, preventing screen overload and onsite mud overflow incidents.

Prioritize Adjustable Vibration Performance for Fine Particle Separation

Fine particle accumulation and screen blockage are the most stubborn issues in HDD mud processing. Unlike generic screens with fixed vibration settings, the TRZS584 linear motion shale shaker supports adjustable G-force and vibration amplitude. Real job site operations confirm that flexible vibration tuning removes fine sand and silt from high-viscosity mud effectively, keeping the whole mud system clean and reducing premature wear on downstream processing gear.

This adaptive vibration structure adjusts automatically to changing underground conditions. The TRZS584 maintains stable, high-efficiency separation results in soft soil zones and mixed hard rock formations alike.

Optimize Screen Mesh and Deck Angle Configuration

Screen setup directly decides overall mud treatment quality, so operators must fully understand TRZS584 shale shaker screen mesh specification before purchase. Most standard HDD jobs with mixed cuttings work best with combined coarse and fine screen layouts. Coarse screens remove bulky rock debris quickly, while fine screens trap tiny contaminants to stabilize mud density and viscosity levels.

Adjustable deck angles stand out as one of the TRZS584 shale shaker’s most practical field advantages. On-site technicians tweak deck angles according to real-time mud viscosity and cutting dryness. Raised deck angles speed up mud penetration for thick, high-viscosity mud, while minor angle adjustments deliver drier, cleaner cuttings when fine particles build up. This flexible tuning greatly improves overall HDD mud recycling performance.

Focus on On-Site Adaptability: Low Noise and Energy-Saving Performance

Urban and suburban HDD construction zones carry strict noise control and power consumption rules. The energy saving TRZS584 shale shaker adopts optimized motor layout and structural upgrades to cut idle power consumption without lowering working throughput. This power-saving design reduces long-term operational expenses for continuous round-the-clock drilling tasks.

This low noise drilling fluid shale shaker minimizes onsite noise pollution, fully meeting urban construction compliance requirements. Its heavy-duty abrasion-resistant frame holds up to continuous field operation and cuts unexpected equipment downtime.

Common Mistakes to Avoid When Selecting TRZS584 Shale Shaker for HDD

Poor separation results on HDD sites rarely come from factory defects. Most performance issues arise from improper model selection and incorrect parameter setup. Three typical errors commonly lower TRZS584 shale shaker working efficiency in HDD applications.

Overusing ultra-fine screen mesh tops the list of common errors. Many buyers believe finer screens produce cleaner mud, yet overly dense mesh slows mud flow, causes particle stacking on screen surfaces, and triggers mud backflow and construction halts. All screen configurations must match actual site stratums and cutting particle features.

Fixed-angle shakers cannot keep up with dynamic HDD working environments. Underground stratums and mud properties shift constantly during drilling, and fixed deck angles fail to adapt, leaving damp cuttings and unstable mud quality.

Many purchasers ignore long-term power consumption costs. Budget generic shale shakers draw excessive power during operation. For medium and long-cycle HDD projects, accumulated electricity costs far exceed the upfront savings of cheap equipment options.

Why TRZS584 Solids Control Vibrating Screen Suits HDD Projects Best

The TRZS584 solids control vibrating screen is purpose-built for directional drilling and continuous mud recycling workflows, unlike general-purpose drilling screens. Its linear motion separation system is precisely tuned for high-viscosity HDD mud and fine cuttings, resolving the persistent screen clogging and low-efficiency flaws of traditional screening devices.

Simplified mechanical layout and fast screen replacement structures reduce daily maintenance workload and spare part spending. Reliable operation and low failure rates allow the unit to serve complex job scenarios, including urban horizontal directional drilling, tunnel mud treatment and coal bed gas directional drilling projects.

The TRZS584 supports full customized configuration. It fits explosion-proof vibration motors for hazardous working zones and tailor-made screen combinations for special stratums, fully matching personalized project demands.

Final Purchase & Application Suggestions

Proper TRZS584 drilling shale shaker selection for HDD jobs depends on three key factors: accurate capacity matching, flexible parameter adjustment, and strong site environment adaptability. Analyze your project's stratum type, mud viscosity range, daily mud circulation volume and site constraints to confirm the best equipment setup before ordering.

Consult experienced solids control equipment suppliers for professional configuration guidance and field debugging if you have no mature setup scheme. A well-configured TRZS584 shale shaker improves mud recycling efficiency, cuts material and maintenance expenses, and creates higher economic returns for all HDD construction operations.
