Oilfield Shaker Screens Manufacturers | Types, Materials & Suppliers

Oilfield shaker screens are indispensable key components in the oil and gas exploration and development process, especially in the drilling fluid solid control system. They are mainly used to separate solid particles (cuttings) from drilling mud, recover valuable drilling fluid, thereby reducing drilling costs, improving drilling efficiency and minimizing environmental pollution.

As a long-term solid control equipment manufacturer, Xi'an TR Solids Control details oilfield shaker screens for you, including types, materials, application scenarios and domestic manufacturers. Shale shakers are the most important application equipment for oilfield shaker screens, responsible for removing large-grain cuttings from drilling fluid; mud cleaners, as secondary or tertiary solid control equipment, use finer shaker screens to remove smaller particles; desanders and desilters sometimes add underflow screens separately.

Classification and Structure of Shale Shaker Screens

Frame Type Shaker Screens (PWP - Pre-tensioned Panel Wire)：

1. Features: Multiple layers of metal wire mesh are tensioned and bonded to a steel frame.

2. Advantages: Easy installation and replacement, high tension, not easy to loosen, and large screening area.

3. Structure: Usually composed of 2-3 layers of wire mesh with different meshes (coarse mesh for support, fine mesh for filtration).

Flat Type Shaker Screens（Flat Type / Hook Strip）：

1. Features: The edge of the shaker screen is equipped with hook strips, which are directly hung on the tension plate of the shale shaker.

2. Advantages: No frame obstruction, larger effective screening area, suitable for working conditions with large throughput and high requirements.

3. Standards: Common specifications comply with API RP 13C standard, such as 700mm×1050mm, 585mm×1165mm, etc.

Composite Shaker Screens：

1. Features: Combined with stainless steel wire mesh and polyurethane (PU) or other polymer materials.

2. Advantages: Extremely high wear resistance, service life is usually 3-5 times that of pure metal shaker screens, especially suitable for formations with strong abrasiveness.

Main Materials of Shaker Screens

Oilfield working conditions are harsh (high temperature, high pressure, strong corrosion, high wear), so the requirements for materials are extremely high:

1. Stainless Steel Wire: The most commonly used material.

2. 304/304L: Suitable for general working conditions.

3. 316/316L: Contains molybdenum, has strong chloride corrosion resistance, suitable for seawater drilling or high-salt environments.

4. Duplex Steel: Higher strength and better corrosion resistance, used in extreme environments.

5. Polyurethane (PU): Often used for the surface layer or frame of composite shaker screens, with excellent wear resistance and tear resistance, and can reduce noise.

6. Carbon Steel Frame: The support frame of the shaker screen is usually made of carbon steel and treated with anti-corrosion spraying.

Oilfield Shaker Screens Manufacturers

In oilfield projects, in addition to the commonly used international brands such as Derrick, Swaco, and Brandt, many domestic manufacturers are also compatible with brand sizes, with more competitive prices and API certification. The following are the major shaker screen manufacturers:

Hebei Hengying Metal Products Co., Ltd.

Anping Haogang Metal Wire Mesh Products Co., Ltd.

Guanneng Petroleum Machinery Manufacturing Co., Ltd.

Tianrui Petroleum Machinery Equipment Co., Ltd.

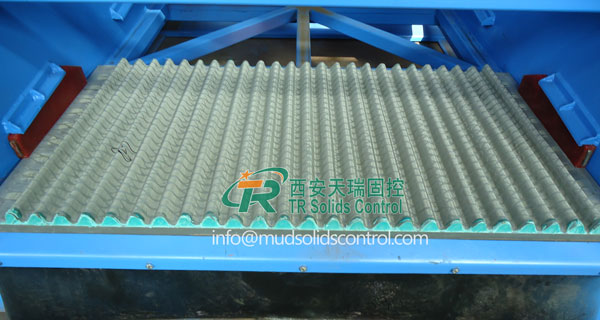

As a supplier of CNPC, Xi'an TR Solids Control has dual API/ISO certification, providing special shaker screens for dry shale shakers, wave shaker screens and shaker screens supporting solid control equipment. It supports customized sizes and meshes, and also has cost-effective alternative solutions for Derrick and NOV.
