Wave-shaped Pyramid Shaker Screen for Oilfield Shale Shakers

In oil exploration and production, Shale Shakers are vital for separating solid particles from drilling fluids. Shaker Screens as core components,directly determine filtration accuracy and efficiency. TR Solids Control's Wave-shaped Pyramid Shaker Screen stands out in oilfield and energy applications with its innovative structural design and superior quality, effectively solving pain points of traditional screens such as low efficiency, frequent clogging, and short service life.

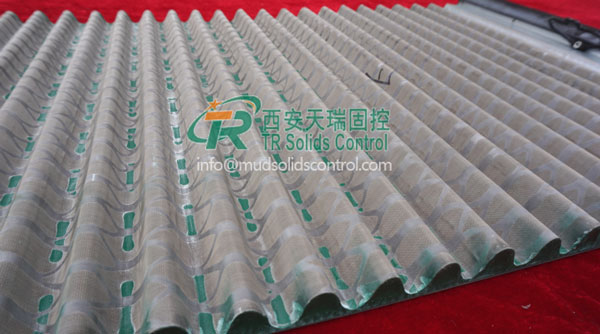

Featuring special wave structure, the screen simulates natural wave motion during vibration, significantly enhancing screening efficiency, minimizing solid particle clogging, and extending service life. Ideal for harsh working conditions like shale gas development and deep well drilling, it accurately filters fine particles, ensures drilling fluid purity, and efficiently separates solid particles larger than 74 microns, safeguarding oil production quality.

Crafted from premium 304/316L stainless steel, Tianrui's Shaker Screen boasts excellent corrosion resistance and mechanical strength to adapt to complex oilfield environments. Manufactured with CNC punching for precise hole-making, it supports customization of square, rectangular and other hole types, with mesh sizes ranging from 20 to 400 mesh to meet diverse operational needs. Each screen undergoes three tension tests; high-strength stainless steel weaving and special heat treatment enhance its fatigue and wear resistance. Combined with trapezoidal wire structure and precision welding, it achieves screening efficiency of over 98%.

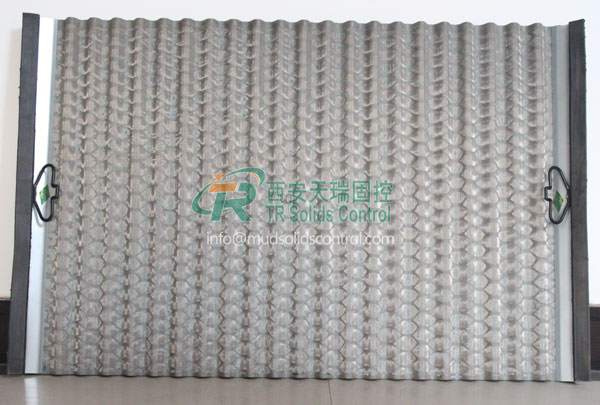

The Wave-shaped Pyramid Shaker Screen adopts unique composite structure: two or three layers of 304/316 stainless steel wire cloth are compounded, bent, and tightly bonded to steel backing plate. Compared with traditional hook-strip flat screens, it increases filtration area by 120% and improves screening performance by 150%. By rationally arranging wire cloth layers of different densities and meshes and matching backing plate opening sizes, it maximizes effective filtration area while ensuring structural strength. The bottom layer uses thick wire and low mesh design, closely integrated with the backing to form a solid whole, further boosting durability.

Key Advantages Of Pyramid Screen

1. Compatible with existing shale shaker equipment to enhance processing capacity

2. Enables precise solid separation with high screening accuracy, ensuring drilling fluid purity

3. Fast screening speed with fine mesh; produces drier cuttings to reduce resource waste

4. High wear and fatigue resistance for harsh conditions; longer service life than standard screens

5. API-compliant, direct replacement for SWACO, Derrick, Brandt and other branded screens

TR Solids Control's Wave-shaped Pyramid Shaker Screen, with its outstanding performance and reliable quality, is widely used in oil, energy, mining and other industries. It delivers stable screening performance in both conventional oilfield operations and harsh scenarios like shale gas development and deep well drilling, helping customers cut costs and improve production efficiency. It is the ideal matching screen for oilfield Shale Shakers.
