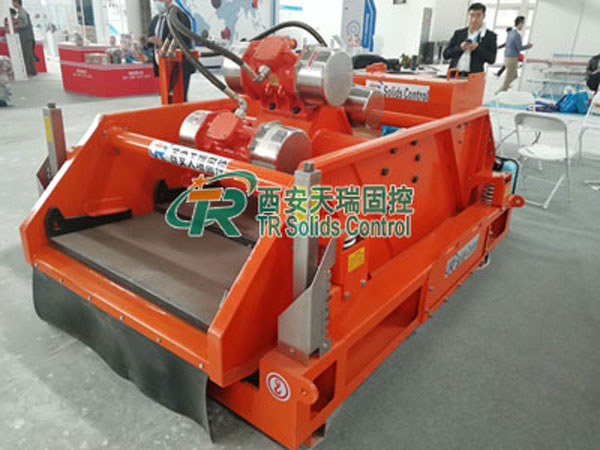

Features and Advantages of Dual Motion Shale Shaker

Dual Motion Shale Shaker is core device that improves the efficiency of drilling fluid solids control through composite vibration mode. Its design combines the advantages of both linear reciprocating and elliptical motion, demonstrating significant application value in oil drilling, mining, and other fields.

TR Solid Control is professional manufacturer for producing drilling mud shale shaker. TR Series Mud Shale Shaker is devided into linear motion and balanced elliptical as per the vibration locus. Different models be named on the basis of the different capacity.

Features and Advantages of Dual Motion Shale Shaker

1.  The control cabinet adopts aluminum alloy shell, and the explosion-proof electric control is equipped with Siemens or Schneider electrical components.

2.  The design adopts three vibration motors, which can flexibly switch between dual tracks according to on-site conditions to reduce losses.

3.  Mechanical screen frame angle adjustment can be performed without stopping the machine, and the operation is stable. The simple and easy-to-use screen box locking design makes it easy to disassemble.

4.  It adopts wedge-shaped blocks for compaction, which makes disassembly and assembly quick, saving replacement time, and making the screen flat and having a long service life.

5.  Heavy-load design and overall heat treatment of screen box can make vibration intensity reach 8.5G, meeting requirements of various working conditions.

6. 6. The pre-tensioned composite frame screen has long service life, which is 2 to 3 times that of ordinary screens.

7. 7. The unique seal between the screen frame and the screen protects the screen and prevents fine sand from penetrating the screen installation gap.

Dual Motion Shale Shaker Technical Parameters
