26 Years Oilfield Shale Shaker Manufacturer | Linear & High Frequency Shakers

Oilfield shale shaker is the first-stage key equipment in the mud solid control system for oil drilling. It is primarily responsible for removing cuttings from drilling fluid and can be understood as the "purification guard" of drilling mud. Its main task is to process the drilling fluid (commonly known as mud) returning from the bottom of the well, separating a large amount of solid particles such as rock cuttings. If it does not work properly, subsequent equipment like desanders and centrifuges will also struggle to function effectively. Therefore, it is the crucial and primary guarantee of the entire solid control system.

With technological advancements, various types of shale shakers have been developed to adapt to different working conditions. TR Solids Control's API-certified linear motion shakers and high-frequency drying shakers are equipped with an adjustable G-force excitation system and wave/compound shaker screen technology, achieving a separation efficiency of over 98%. They can be precisely customized for complex conditions such as deep-layer shale gas drilling on land, high salt spray environments offshore, and low-temperature operations in polar regions. The shaker screens support quick replacement within 5 minutes, significantly reducing downtime.

TR Solids Control Oilfield Shaker Types

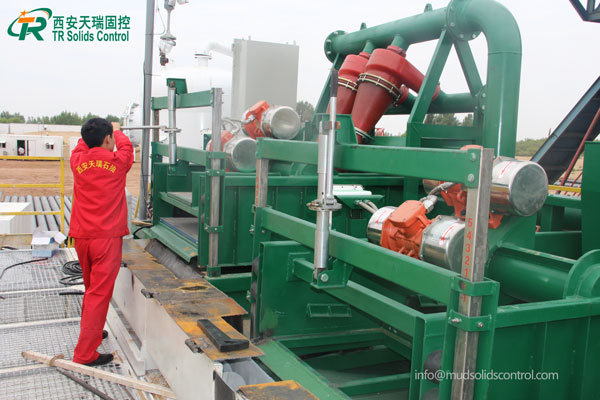

Structure and Components of Oilfield Shale Shaker

1. Base: Supports the entire unit.

2. Shaker Basket: Main body containing shaker screens, where drill cuttings are separated.

3. Exciter / Vibrating Motor: The core component that generates vibration.

4. Shock Absorption Springs: Connect the shaker basket and base, reduce impact on the foundation.

5. Screen Angle Adjustment Mechanism: Adjustable screen angle from -1° to +5° according to working conditions.

6. Electrical Control System: Controls start, stop and operation of the equipment.

Oilfield Shale Shaker is the first core purification equipment in the oil drilling solid control system. It is used to rapidly separate drilled cuttings (solids) from drilling fluid, maintaining stable mud properties and reducing waste discharge and procurement costs.

Modern shale shakers are evolving towards higher efficiency, energy saving, and environmental protection. For example, optimized designs achieve ultra-wide multi-layer screen decks, increasing processing capacity and saving floor space. Energy-saving control technologies, which alternately power vibrating motors on and off, can achieve energy savings of up to 58%. Simultaneously, continuous dynamic characteristic analysis optimizes screen basket structures to combat fatigue failure under harsh operating conditions, enhancing equipment lifespan.

Xi’an Tianrui Petroleum Machinery Co., Ltd. (TR Solids Control) is a modern professional manufacturer of solid control equipment integrating R&D, production, sales and technical services. The company focuses on the fields of oil drilling solid control equipment and oilfield waste management equipment, possessing deep industry experience.

Why Choose TR Solids Control?

26 Years of Industry Experience: Long-term focus on the solid control field with a profound understanding of oil drilling conditions.

Full-Service Support: Has a professional after-sales technical service team providing full-process services from equipment installation guidance and commissioning to maintenance, solving customer after-sales concerns.

Customization Capability: Can customize single, dual, and triple shale shakers according to customer requirements, as well as complete solid control systems and mud purification solutions.
