Drilling Mud Tank System Sold To Offshore Drilling Company

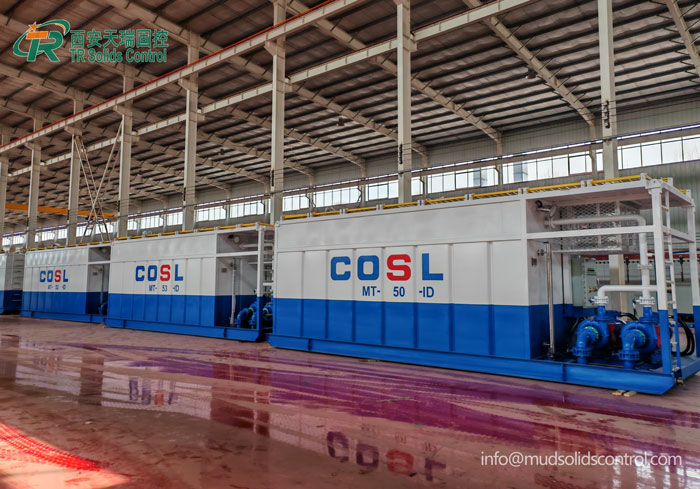

The offshore oil mud tanks and supporting equipment manufactured by TR Solids Control for a well-known offshore drilling company have completed system assembly and commissioning at the factory and been delivered to the client’s drilling site.This set of equipment will be used for drilling mud treatment on offshore drilling platforms, providing key equipment support for the efficient execution of offshore oil drilling operations.

The Offshore Drilling Mud Tank System is essential equipment for drilling mud treatment.  Depending on working conditions, different equipment is used to separate impurities of different particle sizes in drilling mud.

TR Solid Control's offshore mud system is fully equipped, including TRFG mud tanks, TRJBQ15L mud agitators, TRHPQ mixing skid, TRSB8X6-14 (75KW) sand pump, TRJQB6X5-12 (55KW) shear pump, TRSLD150-50 mixing funnel, electrical control system, and related accessories, forming closed-loop mud treatment system.

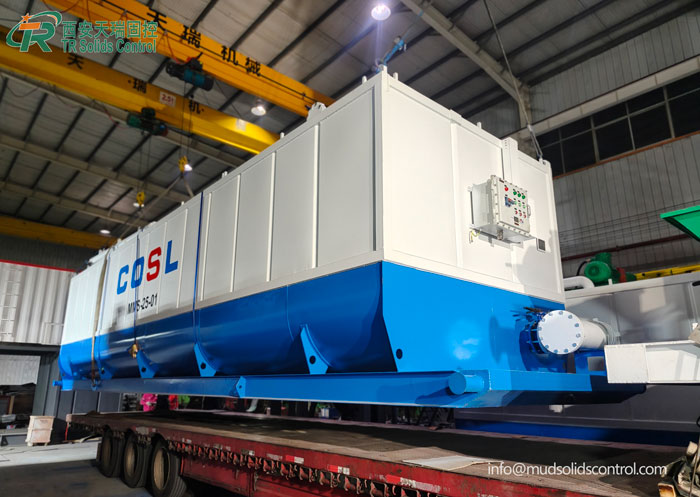

Offshore platforms have limited space for equipment, requiring compact mud tank system design with comprehensive mud treatment capabilities.  TR Solids Control's mud tanks adopt self-tilting bottom design, allowing for easier removal of settled solids through the sand discharge gate and improving cleaning efficiency within the tank. The inner and outer walls are coated with an epoxy zinc-rich primer and acrylic polyurethane anti-corrosion coating, resulting in fewer micropores and excellent corrosion resistance.

The function of Mud Tank is to hold the mud from wellhead to mud pump. Mud tanks are used in conjunction with mud treatment equipment and serve as treatment tanks (also known as transition tanks or grit chambers, etc.), mixing tanks, storage tanks and supply tanks in solid control systems.

From structural perspective, the mud tank circulation system can be classified into self-cleaning type and square tank based on shape of the tank bottom. The tank body mostly adopts flat conical structure or corrugated structure, and the structural strength is ensured through the welding process of steel plates and section steel.

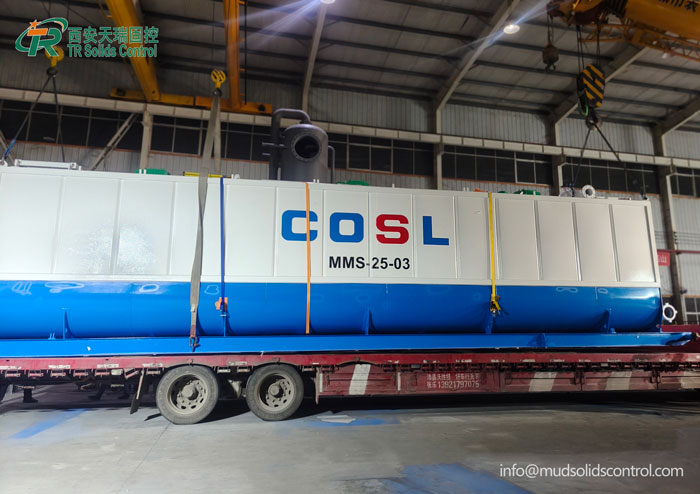

The offshore oil mud tanks are steel container system designed for offshore oil drilling platforms, used for storing, preparing and processing drilling fluid (mud). it is the core hub of the entire drilling fluid circulation system.

Storage: Holds all the mud required for drilling

Preparation: Add chemical agents to adjust the performance of drilling mud (such as density and viscosity).

Circulation: The mud is transported to the wellhead by the pump unit and then returned for treatment and reuse

Purification: Cooperate with solid control equipment to separate drilling cuttings, gases and harmful solid phases

With rich experience accumulated in design and manufacture of mud systems, TR Solid Control can provide customized equipment specifications and system solutions according to the individualized needs of different customers. This time, the equipment supply for a well-known offshore drilling company once again demonstrates its technical strength and service capabilities in the field of Marine solid control equipment.
