What are the commonly used solids control equipment?

Solids control equipment is a key equipment used to separate and remove solid particles from drilling fluid during drilling operations.

Solids control equipment typically includes the following types:

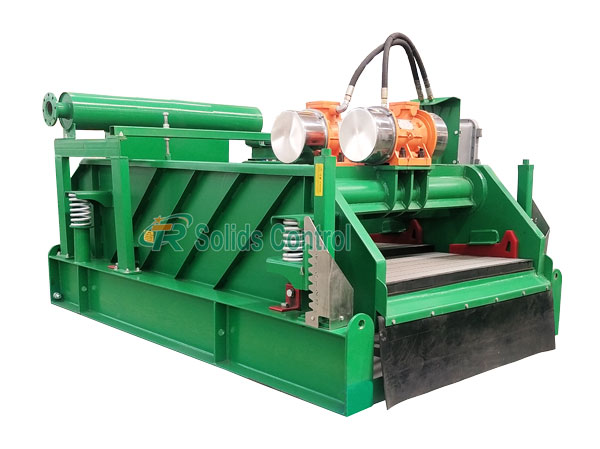

1. Shale Shaker: The first stage of solids control, used to separate large solids (typically above 100 microns or even 200 microns) from drilling fluids through vibration. It is crucial for removing coarse drill cuttings and protecting downstream equipment.

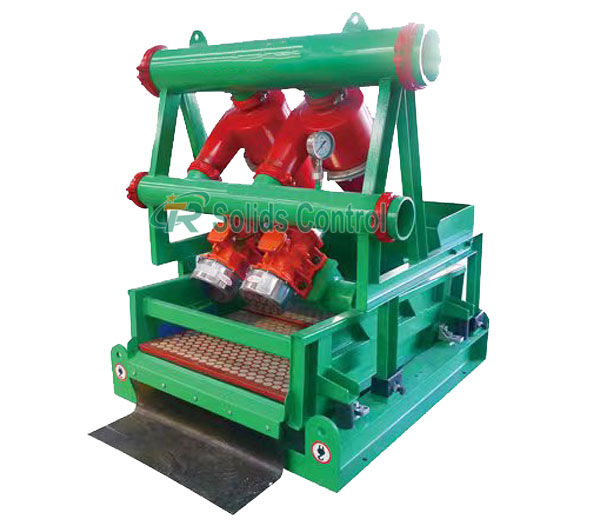

2. Desander: A hydrocyclone-based device that separates solids in the range of 40-74 microns. It is usually the second stage in the solids control system, following the shale shaker, and helps in further purifying the drilling fluid by removing medium-sized sand particles.




3. Desilter: Another hydrocyclone device, but designed to separate smaller solids, typically in the range of 15-47 microns or even down to 20 microns. It is the third stage in the solids control process and is effective in removing fine silt particles from the drilling fluid.

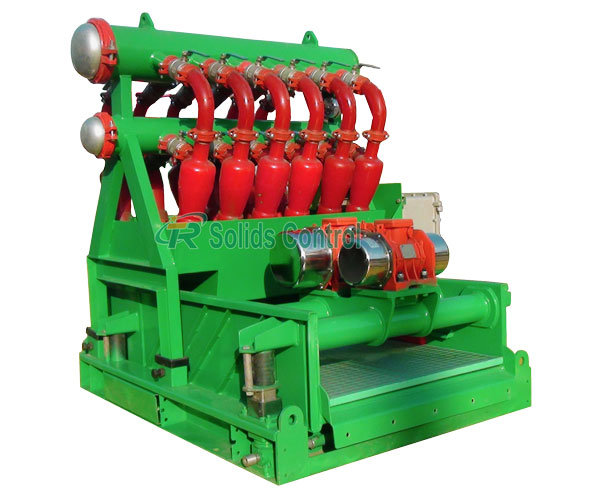

4. Mud Cleaner: A combination of a shale shaker and desilter (or sometimes desander and desilter), providing a more comprehensive solids removal solution. It is particularly useful in situations where a high degree of fluid purification is required.

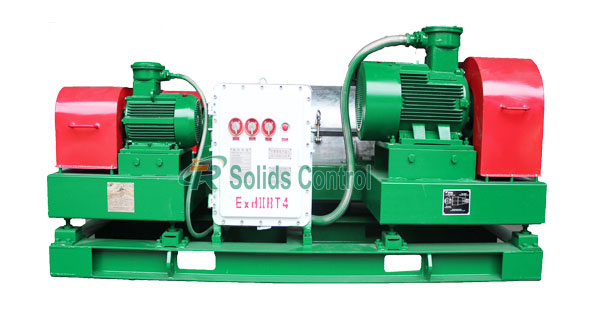

5. Decanter Centrifuge: The fourth stage in the solids control system, used to separate colloidal solids and fine particles down to 2-7 microns. It employs centrifugal force to achieve high-efficiency separation, making it essential for maintaining the quality of drilling fluids in deep drilling operations.

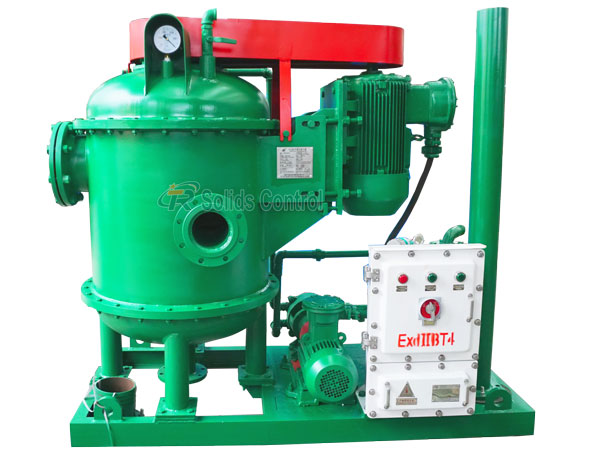

6. Vacuum Degasser: Used to remove entrapped gas (such as air or methane) from the drilling fluid, which can affect the fluid's properties and drilling efficiency. It helps in maintaining the stability and performance of the drilling fluid.

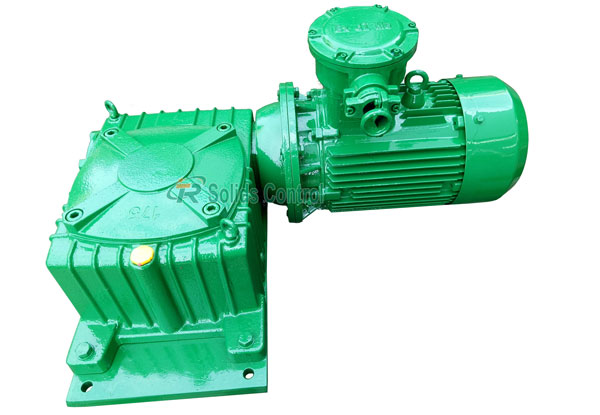

7. Mud Agitator: Keeps the drilling fluid in a homogeneous state by continuously mixing it, preventing solids from settling at the bottom of the mud tanks. This ensures consistent fluid properties and improves the overall efficiency of the solids control system.




8. Centrifugal Pump: Storage containers for drilling fluids, equipped with various solids control equipment. They come in different configurations, such as horizontal, vertical, or trailer-mounted, to suit different drilling conditions and space requirements.




9. Mud Gas Separator: Storage containers for drilling fluids, equipped with various solids control equipment. They come in different configurations, such as horizontal, vertical, or trailer-mounted, to suit different drilling conditions and space requirements.

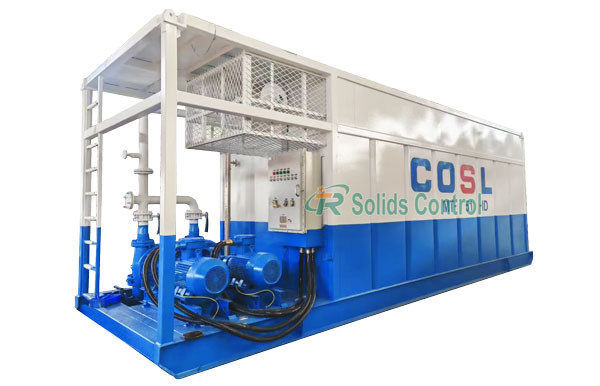

10. Mud Tanks: Storage containers for drilling fluids, equipped with various solids control equipment. They come in different configurations, such as horizontal, vertical, or trailer-mounted, to suit different drilling conditions and space requirements.
