Jet Hopper Shear Mud Mixing Device Improves Drilling Fluid Mixing Efficiency

As a highly efficient and energy-saving new mixer, the jet mud mixer produced by TR Solids Control is a key supporting equipment in the oilfield drilling solid control system.

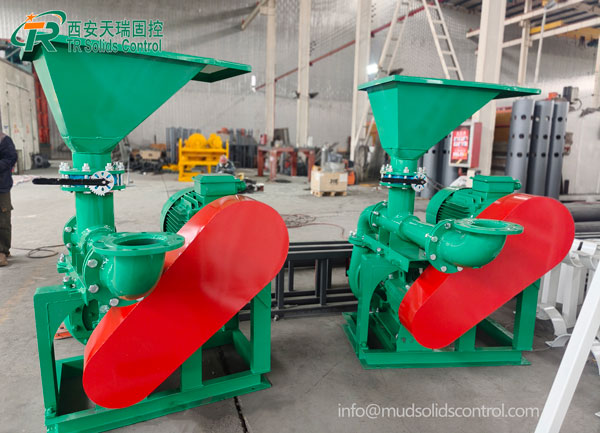

The shear mud mixing device mainly consists of two parts: a shear pump and a jet mixing hopper, connected by manifold valves and mounted on a single base. This design ensures continuous shearing force during mixing, achieving ideal mixing results.

Jet Mud Mixer Functions

It is mainly used for rapid preparation and weighting of drilling fluid at drilling sites. Based on the jet principle, it uniformly mixes powder materials such as bentonite and barite with drilling fluid, ensuring stable drilling fluid properties to meet downhole operation requirements.

Structural Features

Power Unit: The motor on the right provides power to drive the centrifugal pump and generate high-speed jet flow.

Mixing Unit: The funnel-type feeding port on the left is used for adding powder materials. Negative pressure is formed in the jet pipe to suck in powder and fully mix it with liquid.

Integrated Design: Skid-mounted structure for easy installation and flexible movement, suitable for mud circulation systems of various land drilling rigs.

Application Value

This device significantly improves drilling fluid preparation efficiency, reduces manual mixing time and cost, and ensures uniform mixing. It is critical for efficient and safe drilling operations.

1. Shear Pump: As a core component, the shear pump generates strong shear force through the high-speed rotating rotor and stationary stator, breaking down solid particles or viscous substances and mixing them uniformly. Adjustable speed adapts to different material viscosities.

2. Jet Mixing Hopper: It realizes sufficient shearing and mixing via high-pressure fluid jetting, avoiding dead zones and fluid retention to ensure full flow and uniformity.

3. Manifold Valves & Base: Manifold valves regulate flow rate and pressure. The base supports the whole unit, ensuring stability and reliability of the shear pump and jet mixing hopper.
