Drilling Fluid Separation Equipment: Shale Shaker Practical Applications

Solid Control in the Petroleum Drilling Industry: The Critical Role of Shale Shakers

Shale shaker technology is the core method for separating solid-liquid mixtures. Its basic principle is to effectively separate solid particles from the liquid phase through high-frequency vibration of the screen surface. During the vibration process, the movement law of particles on the screen surface is mainly affected by screening parameters (such as amplitude, frequency and screen surface inclination) and material properties (such as particle size, shape and bonding effect).

TR Solids Control, as a leader in the field of drilling fluid solid control equipment, has occupied an important position in the domestic and foreign markets with its advanced technology and excellent product performance. It has always focused on the R&D and innovation of drilling fluid solid control technology, and gradually formed an integrated solid control solution with shale shakers as the core. By continuously optimizing product design and improving manufacturing processes, TR Solids Control has successfully developed a variety of high-efficiency and environment-friendly shale shakers to meet the needs of different drilling conditions.

In the drilling fluid circulation process, the shale shaker makes the solid particles in the drilling fluid pass through the screen quickly through high-frequency vibration, thereby realizing solid-liquid separation and effectively reducing the solid content in the drilling fluid. The vibration generation mechanism of the shale shaker is one of the key technologies to achieve efficient screening, and its core lies in generating periodic vibration with specific frequency and amplitude through the power device. TR Solids Control shale shakers usually adopt vibration motors or hydraulic systems as power sources. Among them, vibration motors are widely used in small and medium-sized shale shakers due to their simple structure and convenient maintenance. The vibration motor generates centrifugal force through the rotation of the unbalanced mass on the rotor, and then transmits periodic excitation to the screen box, making the screen surface vibrate in a linear or elliptical trajectory.

The flow of drilling fluid on the screen surface and the separation process of solid particles are the core links of the shale shaker's work, and its efficiency is affected by many factors. When the drilling fluid enters the screen surface, under the action of vibration, the liquid phase quickly passes through the screen, while the solid particles show different movement states according to their particle sizes. Larger particles are retained on the screen surface because they cannot pass through the screen holes, and migrate to the discharge end with the movement of the screen surface; smaller particles pass through the screen under the carrying of the liquid phase to complete solid-liquid separation.

The screening accuracy of the shale shaker is affected by many factors, including screen material, pore size distribution, vibration frequency and the bonding effect of solid particles in the drilling fluid. TR Solids Control shale shakers effectively reduce the occurrence of particle agglomeration by introducing a translational elliptical vibration mode design, thereby improving the transmittance of fine particles. In addition, the high-performance screen material used in the equipment has the characteristics of wear resistance and corrosion resistance, which can maintain the stability of the screen hole size during long-term operation, further ensuring the reliability of screening accuracy.

Shale shaker screening precision is affected by various factors, including screen mesh material, aperture distribution, vibration frequency, and the cohesive effects of solid particles in the drilling fluid. Tianrui shale shakers incorporate a linear-elliptical motion design, effectively reducing particle agglomeration and thereby improving the passage rate of fine particles. Furthermore, the high-performance screen materials employed feature wear-resistant and corrosion-resistant characteristics, maintaining screen opening size stability during prolonged operation, which further ensures the reliability of screening precision.

Regarding drilling fluid types, whether water-based or oil-based, Tianrui shale shakers demonstrate excellent adaptability. Especially in conditions with strong particle cohesion, adjusting vibration parameters effectively enhances screening efficiency. Under different well depths and formation conditions, the adaptability of Tianrui shale shakers is primarily reflected in their flexible operating modes and efficient solid removal capabilities.

Application Scenarios

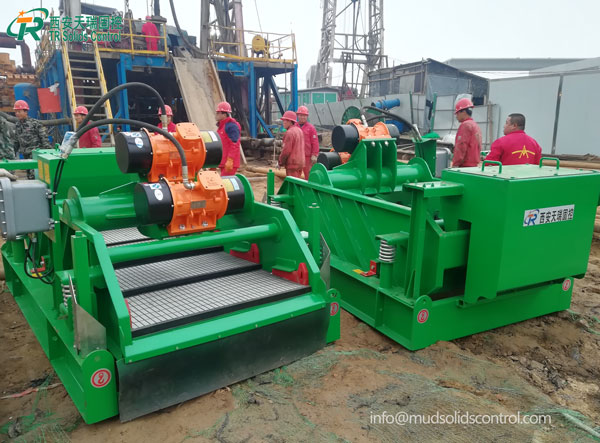

1. Land/Offshore Oilfield Drilling: The TRZS703 is used for conventional mud purification, while the TR585 is paired with drill cutting treatment systems.

2. Shield Tunneling Engineering：Shale shaker + integrated desanding and desilting machine (mud cleaner) to treat high-sand-content mud;

3. Environmental Drill Cutting Treatment： High-frequency drying shale shakers linked with centrifuges and filter presses to achieve compliant discharge standards for drill cutting moisture content.

As a professional manufacturer with 26 years of deep engagement in oilfield solid control and a qualified supplier to CNPC (China National Petroleum Corporation), Xi'an TR Solids Control offers a full series of shale shakers. Backed by mature technology, API/ISO dual certifications, and customization capabilities, their equipment is extensively applied in drilling fluid purification and drill cutting treatment projects across diverse sectors including oil & gas drilling, shield tunneling, pile foundation engineering, and mining.
