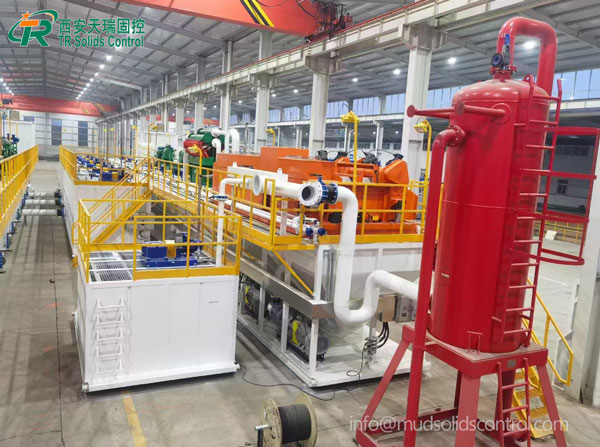

Integrated Drilling Mud Solids Control System:Efficient Oilfield Operation Equipment

In modern oil and gas drilling, the reliable mud solid control system is the cornerstone of maintaining wellbore stability, protecting drilling tools and optimizing drilling efficiency. TR Solids Control's integrated mud system delivers the complete drilling fluid treatment solution, enabling continuous and efficient mud purification through the coordinated operation of multiple core equipment units.

Mud Gas Separator

The mud gas separator achieves high-efficiency separation via centrifugal force to deeply purify drilling mud, safeguarding downstream key equipment such as desanders and mud pumps. Featuring wear-resistant liners and optimized flow channels, it ensures high separation efficiency while significantly extending service life.

Shale Shaker

As the first line of defense for solid-liquid separation, the shale shaker rapidly removes large-sized cuttings and coarse solid phases from drilling mud using high-G vibration, preventing impurities from entering downstream equipment and reducing abrasion. The robust structure and replaceable shaker screens ensure stable operation even under harsh drilling conditions, making it the primary defense line of the entire mud system.

Desander Desilter Hydrocyclone

Following the shale shaker is the desander and desilter hydrocyclone, which further separates fine sand and silt particles ranging from 40 to 100 microns in mud. By means of centrifugal force, the desilter efficiently removes fine solid phases for deep mud purification, protecting subsequent equipment including centrifuges and mud pumps. Equipped with wear-resistant liners and optimized flow paths, it enhances separation efficiency and prolongs service life.

Mud Agitator

Mud agitators installed on the mud tank are indispensable. Driven by the coupling-connected impeller, they maintain uniform drilling fluid distribution in the mud tank, prevent solid settlement, and ensure consistent mud performance throughout circulation, critical for well control safety and operational efficiency.

System Advantages

The entire system adopts the modular skid-mounted design with guardrails and integrated pipelines, facilitating on-site installation, operation and maintenance. Compliant with API and ISO international standards, it adapts to various onshore and offshore drilling platforms worldwide.

This integrated mud solids control solution combines shale shakers, desilters, mud agitators, centrifuges and large-capacity mud tanks into one unified system. It simplifies workflows, reduces footprint, and lowers operating costs.  It not only improves mud quality but also extends the lifespan of drilling tools, making it an essential investment for oilfield operators seeking reliable, efficient and cost-effective mud processing.
