How TR Solids Control Enhances Drilling Fluid Solids Control Efficiency with Premium Pyramid Shaker Screens

In oil drilling operations, the performance of solids control equipment directly impacts drilling efficiency and cost management. As the core component of shale shakers, pyramid shaker screens (also known as wave screens) have become the preferred choice for oilfield solids control systems due to their unique three-dimensional structure. TR Solids Control, an API-certified manufacturer, has accumulated deep technical expertise in the R&D and production of pyramid shaker screens.

What Are Pyramid Shaker Screens?

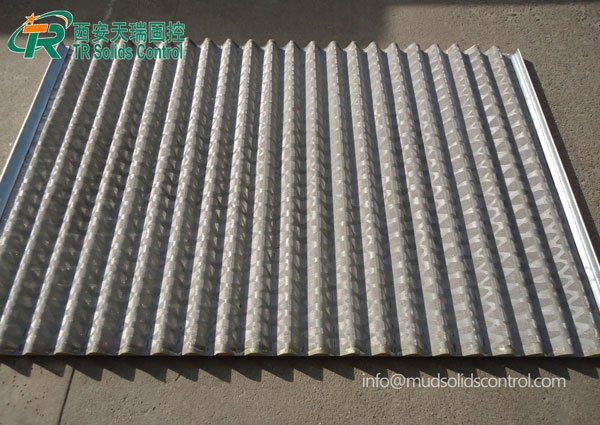

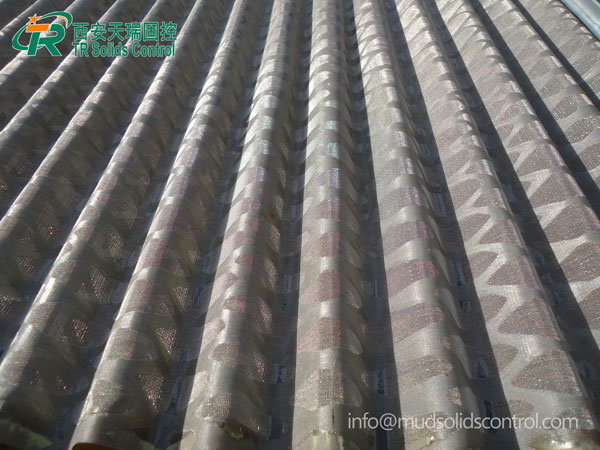

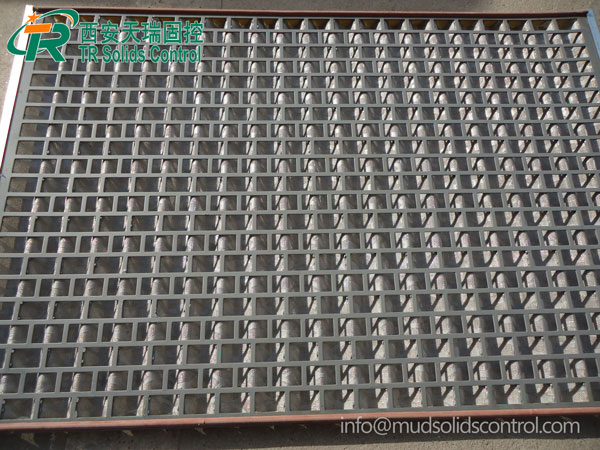

Pyramid shaker screens are drilling fluid shaker screens featuring a wave-shaped or pyramid-structured surface. Unlike traditional flat screens, the screen surface features a continuous, undulating wave structure. They are constructed by bending two or three layers of 304/316L stainless steel wire cloth and bonding them tightly to a steel back plate, which enhances overall strength. This innovative design significantly increases the effective filtration area and processing capacity, while improving anti-clogging performance by up to 70%.

The wave shaker screens of TR Solids Control are compatible with various models of shale shakers such as Derrick, and can be directly replaced without modifying existing equipment.

Technical Advantages & Application Value

Tianrui’s pyramid shaker screens are manufactured in strict accordance with the API RP 13C standard, with mesh sizes ranging from API 20 to API 325, meeting the requirements of various working conditions from coarse screening to fine filtration. Its core advantages include:

1. High-Efficiency Separation：The three-dimensional structure simulates wave motion, providing an effective filtration area that is 125%-150% that of traditional flat screens, with processing capacity increased by over 40%. In high-viscosity mud operations such as deep well drilling and shale gas development, they efficiently separate solid particles larger than 74 microns.

2. Anti-Clogging & Durability：The unique wave-shaped design ensures more uniform material distribution, significantly reducing "screen blinding" and extending screen service life by 2-3 times. Manufactured with high-strength stainless steel weaving and specialized heat treatment, these screens offer excellent fatigue resistance and wear resistance.

3. Strong Compatibility：Tianrui’s pyramid shaker screens not only fit their own TRZS series shale shakers but also serve as high-cost-performance alternatives, perfectly replacing screen products from major international brands such as Derrick, SWACO, and Brandt.

Applications & Selection Recommendations

Pyramid shaker screens are widely used in high-load applications such as offshore drilling platforms, horizontal wells, and cuttings drying systems. For oil-based mud systems, 316L stainless steel screens are recommended; for water-based mud systems, polyurethane screens can be considered to reduce costs. For high G-force vibration applications, frame-type screens are recommended to ensure stability; for conventional drilling operations, hook-strip screens can be chosen, allowing for replacement within 3 minutes.

As a leading domestic solids control equipment manufacturer, TR Solids Control provides efficient and reliable pyramid shaker screen solutions for oilfield customers, backed by API-certified quality, full-process customized services, and responsive after-sales support. Whether for reducing operating costs or improving drilling efficiency, choosing Tianrui Solids Control means choosing professionalism and reliability.
