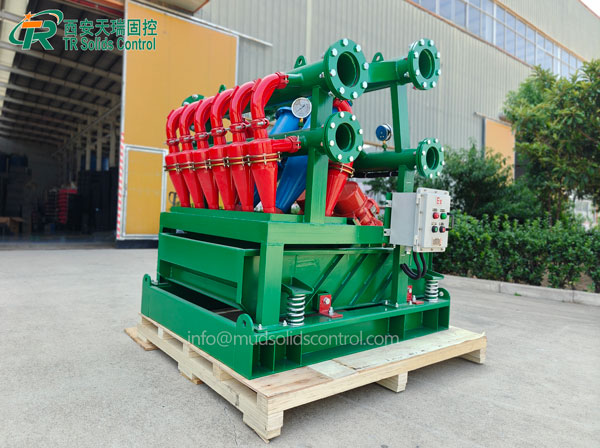

Mud Cleaning & Purification Integrated Machine

The mud cleaning, purification and separation integrated machine is mud treatment equipment integrating desanding, desilting and screening functions. It is widely used in oil drilling, trenchless engineering, shield construction, mining, construction piling and other fields.

Working Principle of Mud Cleaner

After weighted drilling fluid passes through the shale shaker, desander and desilter, the cuttings particle size removed decreases successively. Some small solid particles still remain in the drilling fluid.

While the hydrocyclone removes unwanted solids from weighted drilling fluid, considerable barite remains in the underflow. The fine screen under the hydrocyclone underflow removes large cuttings particles, while barite passes through the screen mesh back to the circulating tank. This is the basic working principle of the mud cleaner.

The mud cleaning, purification and separation integrated machine achieves solid-liquid separation through a multi-stage purification process:

1. Primary Screening: Mud enters the shale shaker to separate large cuttings, stones and other impurities via high-frequency vibration, reducing the load of subsequent equipment.

2. Hydrocyclone Separation: Primarily screened mud flows into the hydrocyclones (desander + desilter), which stratifies particles of different sizes by density using centrifugal force. The desander separates sand particles of 45–74 μm, and the desilter separates silt particles of 15–44 μm.

3. Fine Filtration: The separated mud is further filtered by an underflow shale shaker or dewatering screen to ensure thorough removal of solid particles and stable mud performance.

4. Recycling: Purified mud can be reused, reducing waste mud discharge and meeting environmental protection requirements.

The drilling desander-desilter integrated machine is a new type of 3rd & 4th-stage solids control equipment developed for the development trend of oil drilling. It integrates hydrocyclone desander, desilter hydrocyclone and underflow shale shaker in one unit. Featuring compact structure, small footprint and powerful functions, it is an ideal choice for drilling mud solids control.

Advantages of TR Solids Control Mud Cleaner

1. High-Efficiency Purification：

   Integrated “hydrocyclone + high-frequency fine screen” technology removes 20–74 μm sand and silt particles in drilling fluid with obvious purification effect.

   Double-layer screen design improves purification efficiency by more than 50% compared with single-layer screens, effectively controls mud performance and reduces pipe sticking accidents.

2. Cost Saving：

   Recovers useful solids and reduces mud material consumption (reduced by 40% in a bridge pile project).

   Lowers waste transportation cost, reduces drilling fluid loss and extends the service life of drill bits and tools.

3. Environmental & Energy Saving：

   Closed-circuit circulation system reduces mud discharge and avoids soil and water pollution.

   Physical separation requires no heating, with low energy consumption, conforming to energy-saving and emission-reduction standards.

4. Easy Operation：

   High degree of automation; operators can master the process after simple training.

   Compact structure, small footprint, easy installation and maintenance.

5. High Durability：

   Hydrocyclones are made of wear-resistant materials such as polyurethane, high-chromium cast iron or ceramics for long service life.

   Equipped with famous brand motors (Martin, Oli) to ensure strong and stable vibration.

Xi'an TR Solids Control mud cleaners integrate advanced domestic and foreign technologies with modular design, suitable for mud desanding and desilting operations, and are well received in global markets.

As a professional manufacturer and supplier of desander-desilter integrated machines, TR Solids Control provides the complete TRQJ series mud cleaners for mud treatment in oil drilling, trenchless, shield tunneling and other industries.
