Why Choose Integrated Solids Control System for Drilling Operations

Why Choose Integrated Solids Control System for Drilling

In modern drilling operations, drilling fluid management and solids control directly determine construction cost, operational efficiency and environmental compliance. As oil and gas exploration expands to deep formations, complex strata and deep sea, traditional decentralized solids control setups can no longer satisfy stringent engineering demands. Hence, integrated solids control systems have become the industry standard for oilfield services.

What Is an Integrated Solids Control System？

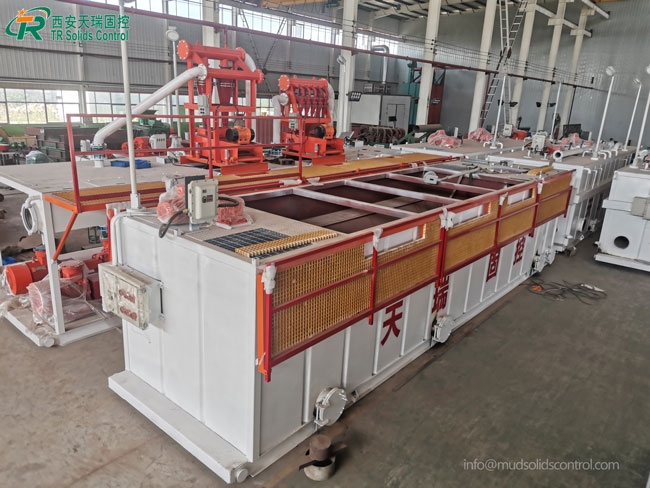

An integrated solids control system is a comprehensive solution designed to treat and manage drilling fluids during the drilling process. It separates solids from drilling mud, cleans the fluid, and ensures it is continually recycled for reuse. A typical system consists of cascade of multiple specialized units: shale shaker for coarse solids, desander for medium particles, desilter for fine silt, and decanter centrifuge for ultra-fine particles. This multi-stage process ensures drilling fluid is cleaned to high standard, allowing it to be recirculated with optimal properties, minimizing waste and reducing fluid costs.

Integrated Solids Control System vs. Conventional Solids Control

When comparing an integrated solids control system with traditional mud treatment equipment, several key differences stand out:

1. Separation Efficiency: Integrated systems achieve 95–98% solids removal for particles larger than 10 microns, maintaining this efficiency under varying flow rates and mud weights.


2. Energy Consumption: Variable frequency drives reduce power usage by 15–30% compared to fixed-speed alternatives.

3. Maintenance: Quick-change screens and wear-resistant components reduce downtime by 20–40%.

4. Automation Level: Traditional setups rely on manual monitoring, leading to fluid fluctuations and accelerated wear. Integrated systems offer automated flow distribution and centrifuge operation, improving consistency and reducing labor.

5. Waste Minimization: Integrated systems maximize fluid reuse, lowering disposal expenses and reducing environmental footprint.

Key Advantages of Integrated Solids Control System

1. Cutting-Edge Separation Technology

Progressive multi-stage separation is the core advantage. Primary separation via shale shakers removes large cuttings; secondary using hydrocyclones targets medium to fine particles; tertiary with high-speed centrifuges handles ultra-fine solids down to 2–7 microns.

2. Cost-Effectiveness Through Fluid Reuse

While the initial investment may be higher, the return is quickly realized through substantial savings on mud and disposal costs, combined with improved drilling efficiency. Superior quality of cleaned fluid also leads to better lubrication, higher rate of penetration, and reduced wear on bits and pumps.

3. Operational Efficiency Gains

Intelligent systems with embedded sensors and cloud-based management can boost operational efficiency by approximately 25%, reduce labor costs by around 40%, and cut unplanned downtime by up to 60% through predictive maintenance.

4. Environmental Compliance & HSE Benefits

Efficient integrated solids control systems minimize waste generation through superior solids removal, often incorporating closed-loop fluid handling to meet stringent discharge standards. Safety is also enhanced: enclosed designs reduce hazardous hydrocarbon mist exposure, lower vibrations, and protect personnel with proper guarding and fail-safe mechanisms.

Technical Standards and Certifications

A reliable integrated solids control system must comply with API and ISO guidelines. API RP13C remains the internationally recognized specification for evaluating solids control equipment performance. System processing capacity should reach 1.2–1.5 times the drilling fluid circulation volume to maintain stable operation under peak conditions.

TR Solids Control: Your Trusted Partner

Established in 2010 and headquartered in Xi'an, China, TR Solids Control (Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.) holds API and ISO 9001 certifications, with products exported to over 60 countries.

Solids Control System Components

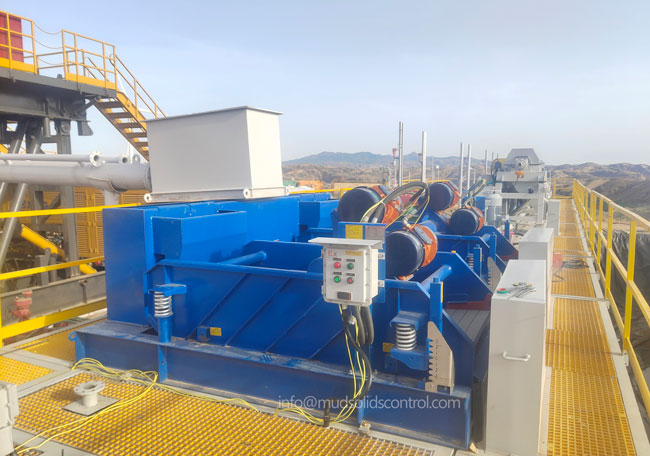

1. Shale Shakers: Dual-motion design, G-force 0.5–6.5 adjustable, capacity 200–500 m³/h. TRZS series features three-layer polyurethane composite screens (API 20–325 mesh) with longer service life.

2. Desanders: 6–12 inch hydrocyclone, capacity 150–300 m³/h, separation 44–74 μm, silicon carbide lining for 2,000+ hours life.

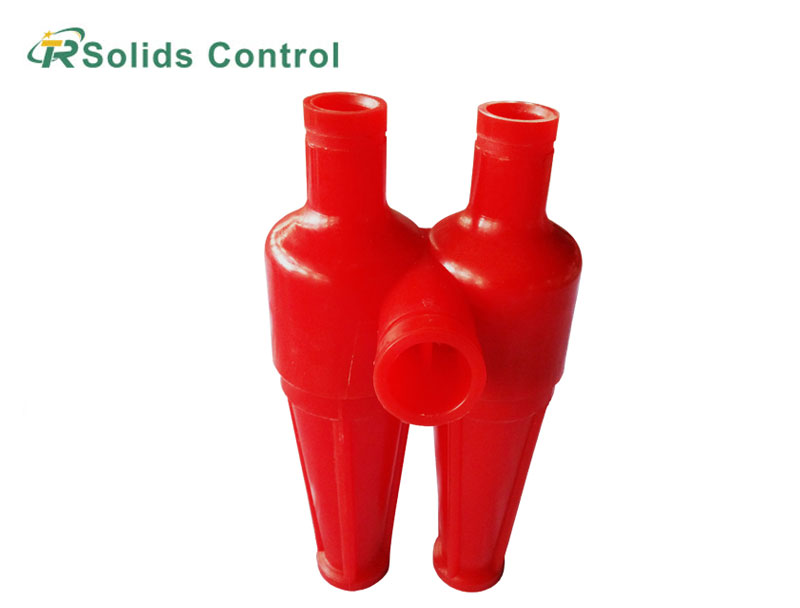

3. Desilters: 2–5 inch hydrocyclone, capacity 50–150 m³/h, separation 15–44 μm.

4. Decanter Centrifuges: Medium-speed (TRLW355–450) achieve 95% recovery; high-speed (TRLW600) separate down to 2–7 μm.

5. Vacuum Degassers: TRZCQ series, capacity 240–360 m³/h, removes >95% free gas.

6. Mud Agitators & Jet Mixing Units: Direct-drive agitators with variable frequency control; jet mixing units achieve three times higher mixing efficiency than traditional agitation.

Modular Design for Diverse Applications

TR Solids Control supports modular design for both onshore and offshore operations. The mud recycling system removes solids down to below 25 microns, significantly reducing drilling fluid consumption costs. Systems can be configured for rigs from 350 HP to 1,500 HP, supporting drilling depths from 500 to 9,000 meters.

Future Trends in Integrated Solids Control Systems

The industry is moving toward intelligent, modular, and green development. IoT sensors and AI prediction algorithms will enable real-time monitoring and automatic parameter adjustment. Standardized modular designs will enhance flexibility and deployment efficiency. Combined with zero-discharge drilling processes, integrated solids control systems will deliver greater value in environmental compliance.

In modern challenging drilling environments including deepwater offshore and remote onshore basins, an integrated solids control system is a strategic necessity. For drilling contractors seeking reliable partner, TR Solids Control offers engineered systems backed by international certifications and a proven track record in delivering customized solutions.
