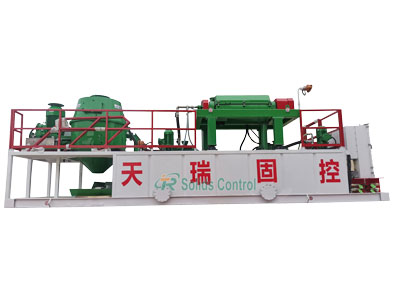

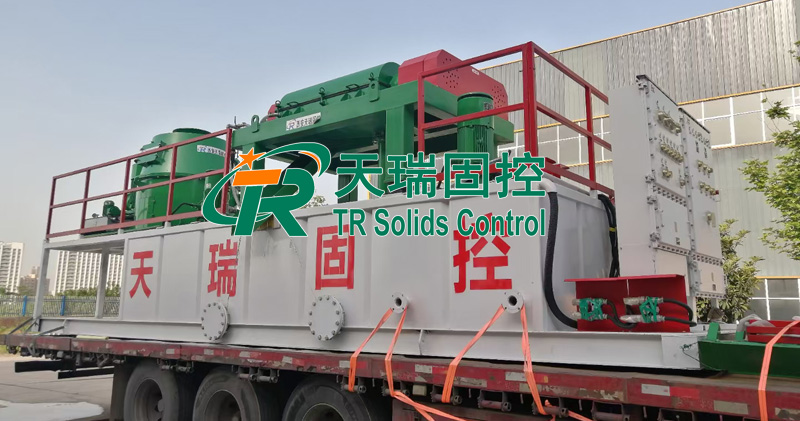

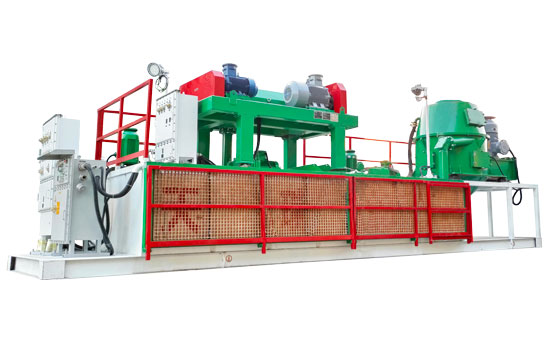

Mud Pitless System

A Mud Pitless System is a closed system for collecting, transferring and treating drill cuttings and other drilling waste without open mud pits.

It connects the solids control process with downstream equipment that separates the waste, recovers usable fluid and handles the remaining solids, with additional dewatering where required. A typical package may include sealed screw conveyors, drying units, pumps, tanks, centrifuges and filter presses.

TR selects the equipment and layout to match the drilling fluid, waste characteristics and site footprint.

Key Advantages

1. Closed waste handling: Drill cuttings stay within the collection and treatment process instead of going to open pits.

2. Fluid recovery: Recover drilling fluid for reuse or further processing.

3. Less waste to transport: Removing excess liquid reduces the volume of material requiring off-site handling.

4. Enclosed transfer: Sealed conveying reduces spills during cuttings transfer.

5. Flexible layout: The system can be arranged around the available site and process flow.

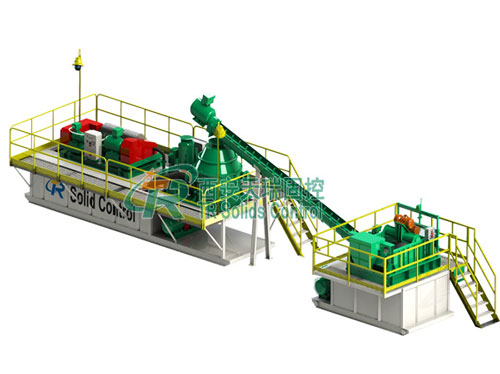

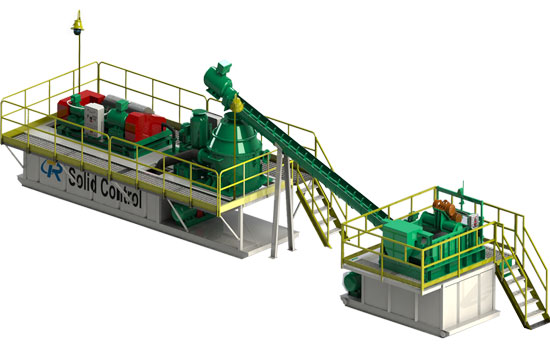

System Configuration

A Mud Pitless System typically brings together waste collection, separation, fluid recovery and solids handling in one treatment line.

1. Waste Collection & Transfer

   Drill cuttings and waste enter from upstream equipment. Sealed conveyors move the material between treatment units.

2. Drying & Separation

   Free liquid is removed from wet solids before further treatment. Depending on the material and process requirements, the system may use a drying shaker, vertical cuttings dryer or other separation units.

3. Fluid Recovery

   Recovered fluid is collected in a tank for reuse or further treatment. Additional separation may be added to remove fine solids.

4. Dewatering & Solids Handling

   Where further dewatering is needed, the waste passes through mechanical dewatering equipment. The treated solids are then collected for transport.

How the Mud Pitless System Works

Drill cuttings and other waste enter the system from the solids control section or upstream slurry handling equipment. A sealed screw conveyor transfers the material to the drying or separation stage.

The recovered liquid flows to a recovery tank. It can then return for reuse or move to further treatment. Separated solids move to collection.

Waste Input → Conveying → Drying / Separation → Fluid Recovery → Dewatering → Solids Discharge

Applications

• Oil & Gas Drilling

  For closed handling of drill cuttings and drilling waste generated during drilling operations.

• HDD & Trenchless Construction

  Handles returned drilling slurry and separated cuttings from trenchless construction..

• Piling

  Collects and dewaters piling slurry before transport or further disposal.

• Tunneling & Underground Construction

  Suitable for slurry handling in pipe jacking, shield tunneling and related underground construction.

Mud Pitless System Selection Guide

• Waste Source

  Identify the waste source, such as oilfield drilling, HDD, piling or tunneling.

• Waste Characteristics

  Review the drilling fluid type, solids loading, liquid content, particle characteristics and expected waste flow.

• Treatment Objective

  Define the required level of drying, fluid recovery, dewatering, solids handling or a combination of these functions.

• Site Layout

  Check the available footprint, waste discharge point, tank arrangement, transfer distance, solids discharge area and truck access.

TR Manufacturing & Engineering

TR manufactures solids control and drilling waste treatment equipment and handles system assembly and electrical integration for packaged projects.

TR can provide individual equipment or complete Mud Pitless Systems for oilfield drilling, HDD, piling and other drilling waste applications.
