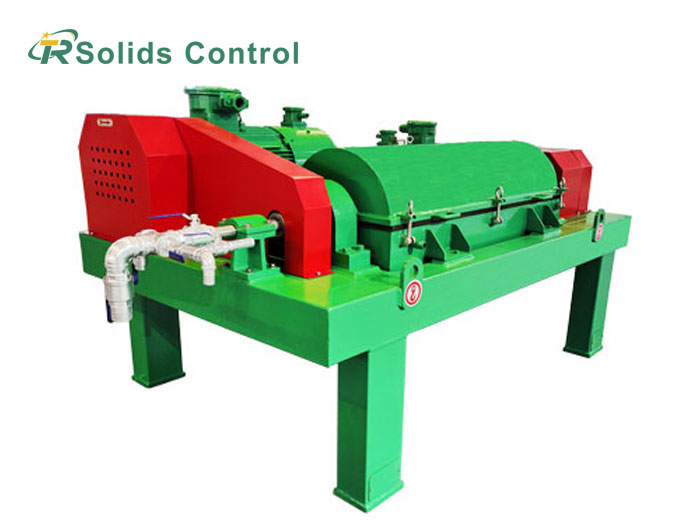

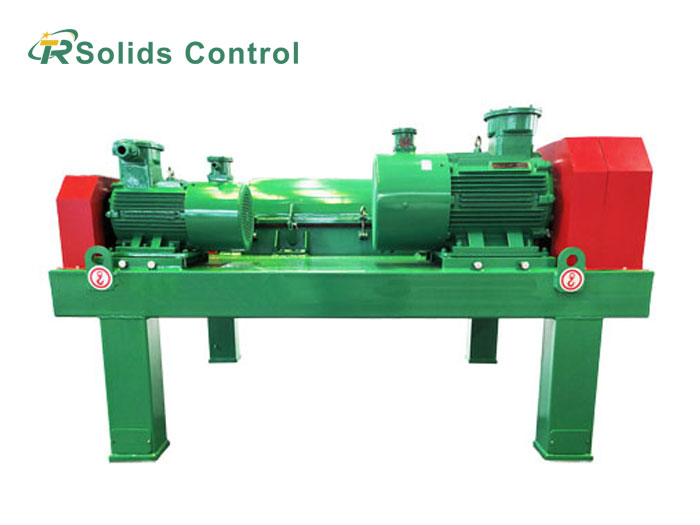

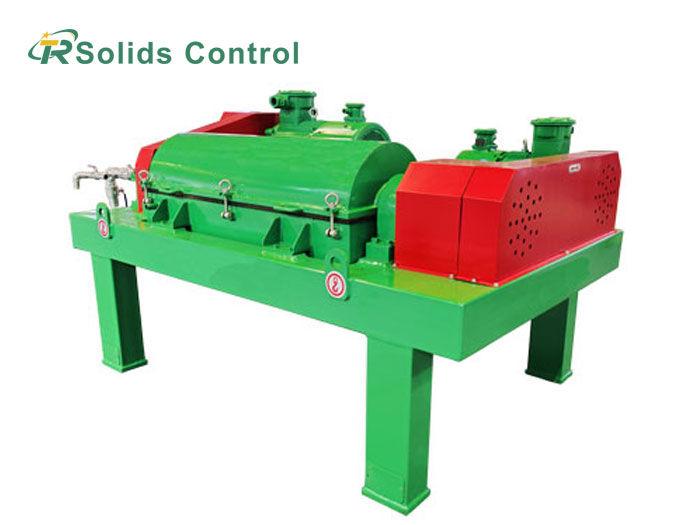

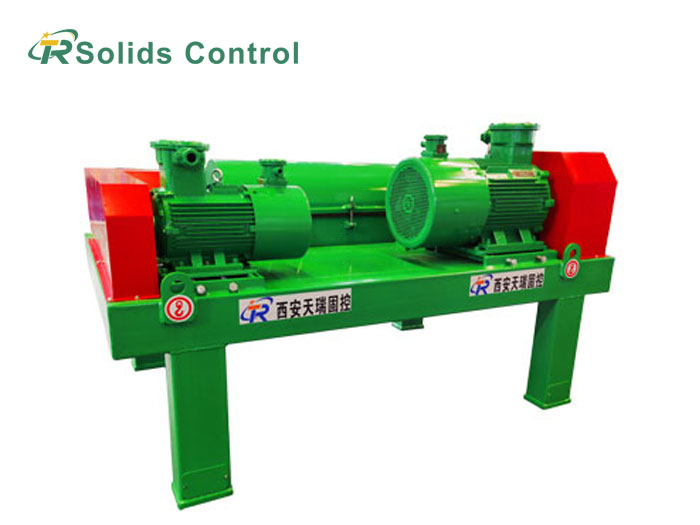

Frequency centrifuge

TRLW series variable frequency mud centrifuge, also known as horizontal spiral unloading sedimentation centrifuge, mud centrifuge, drilling fluid variable frequency centrifuge is a special solid-liquid separation equipment designed according to the characteristics of petroleum mud waste management. It can complete the feeding, centrifugal sedimentation, unloading and other processes at full speed. It is mainly used to purify solid particles in mud drilling fluid to ensure that the mud drilling f

Product PDF Product Catalogue Inquiry

Decription

A variable frequency mud centrifuge is a type of variable frequency centrifuge. Drilling fluid variable frequency centrifuges are also known as variable frequency mud centrifuges. The TRLW series variable frequency mud centrifuges, also known as horizontal spiral unloading sedimentation centrifuges or mud centrifuges, are specialized solid-liquid separation equipment designed specifically for the unique characteristics of petroleum mud waste management. They can complete all steps of the feeding, centrifugal sedimentation, and unloading processes at full speed. They are primarily used to purify solid particles from drilling mud fluids, ensuring that the mud meets discharge standards.

The variable frequency mud centrifuge uses the principle of centrifugal sedimentation to separate drilling fluid suspensions. The suspension enters the drum through the outlet of the spiral pusher via a feed pipe. Centrifugal force pushes solid particles toward the inner wall of the drum. The solid particles are then pushed by the vanes of the spiral pusher to the small end of the drum for discharge, while the liquid overflows through the overflow hole at the large end. This cycle continues, achieving continuous separation. The variable frequency mud centrifuge belongs to the category of horizontal spiral centrifuges, and its full name is drilling fluid variable frequency centrifuge. Tianrui Solids Control's variable frequency mud centrifuges are widely used in the oil drilling industry.

Advantages of variable frequency mud centrifuge

The straight and tapered sections of the drum are constructed from 2205 duplex stainless steel using a centrifugal casting process.
The remaining components of the drum assembly are constructed from SS316L stainless steel.
The auger is protected with YG6 wear-resistant alloy sheets, ensuring long service life and easy maintenance and replacement.
The auger's diversion port and the drum's slag discharge port are protected with easily replaceable wear-resistant alloy sleeves, extending service life and maintenance intervals.
The drum assembly is protected during transportation by a removable support frame to prevent damage to the bearings during transportation.
Genuine imported SKF and NSK bearings are used to enhance equipment stability and bearing life.
Variable frequency control allows customers to adjust the speed at any time to meet diverse operating conditions.
Electrical components are from Schneider or Siemens, with dual protection features including overload protection and mechanical limit switches.
The variable frequency slurry centrifuge can automatically adjust the centrifuge speed based on site requirements.

Centrifuge parameters

Model	TRGLW355N-1V	TRGLW450N-2V	TRGLW450N-3V	TRGLW550N-1V
Drum diameter	355mm (inch)	450mm (17.7inch)	450mm (17.7inch)	550mm (22inch)
Drum length	1250mm(49.2inch)	1250mm(49.2inch)	1600(64inch)	1800mm(71inch)
Capacity	40m³/h	60m³/h	70m³/h	90m³/h
Speed	3800r/min	3200r/min	3200r/min	3000r/min
Frequency conversion range	0～3200r/min	0～3000r/min	0～2800r/min	0～2600r/min
G-Force	3018	2578	2578	2711
Separation point	2~5μm	2~5μm	2~5μm	2~5μm
Main motor	30kW-4p	30kW-4p	45kW-4p	55kW-4p
Auxiliary motor	7.5kW-4p	7.5kW-4p	15kW-4p	22kW-4p
Weight	2950kg	3200kg	4500kg	5800kg
Dimensions	2550×1860×1250	2600×1860×1250	2950×1860×1250	3250×1960×1350

Xi'an TR Solids Control is a manufacturer of variable frequency centrifuges for drilling fluids. We welcome customers to visit us and discuss our variable frequency mud centrifuge business. We will provide you with variable frequency centrifuge equipment and after-sales service for drilling fluid centrifuges. If you are looking for a qualified supplier of variable frequency mud centrifuges, Xi'an Tianrui Solids Control is your ideal choice.

Xi'an Tianrui Petroleum is a manufacturer of mud solids control equipment. In addition to mud centrifuges, the company also manufactures integrated sand and mud removers, drilling fluid centrifuges, screw pumps, centrifugal sand pumps, jet mixers, and mud shear pumps. We also offer oil and gas drilling mud purification systems, construction mud treatment systems, and trenchless mud recovery systems. We can provide you with mud desilter services.
