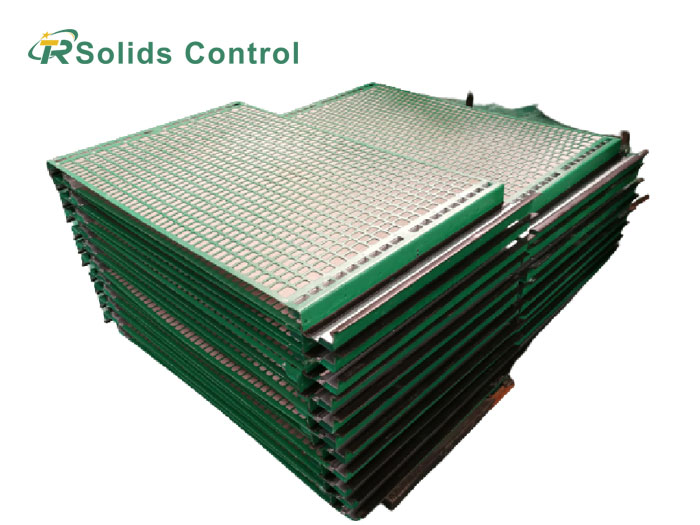

500 PWP Shaker Screen

FLC500 PMD Shaker Screen made in China by TR Solids Control, available in API 20–400 mesh.

Product PDF Product Catalogue Inquiry

Description

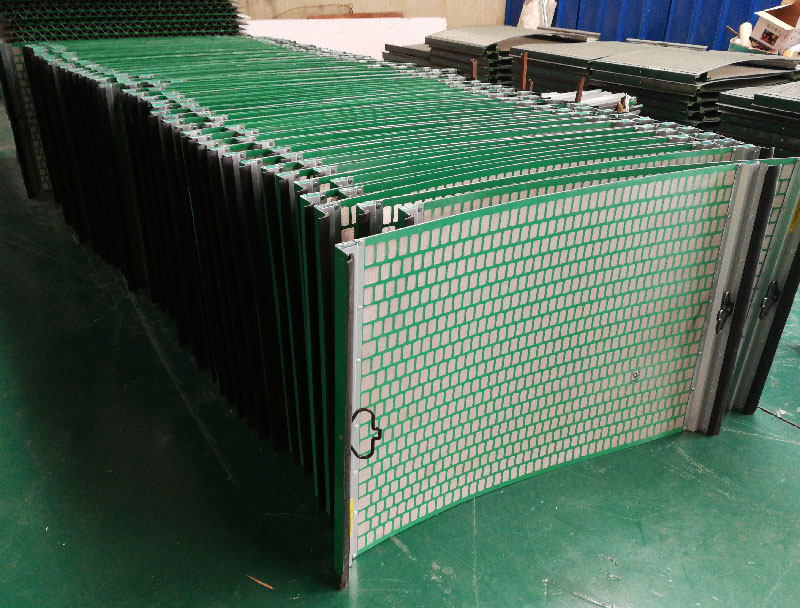

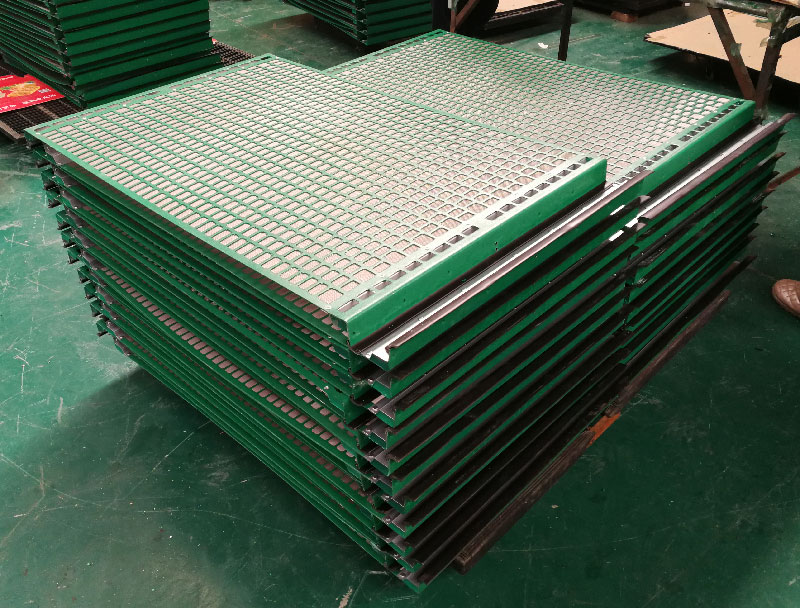

The FLC500 PWP Shaker Screen is a replacement screen for Derrick FLC500 series shale shakers. Each screen is built with two or three layers of stainless steel wire cloth (304/316 grade) bonded to a steel backing plate. The single-side quick-lock tension system cuts panel replacement time compared to conventional tensioning methods.

The upper layer uses finer wire cloth over a coarser middle and bottom layer, combining filtration precision with structural strength. Backing plates are available in hexagonal, rectangular, or square perforation patterns, dividing the screen surface into independent sections that limit local expansion and reduce the risk of panel damage.

FLC500 PWP Screen Parameters

Name	FLC500 PWP Screen
Screen type	Hook strip
Wire cloth material	Stainless steel 304 or 316
Wire cloth layers	2～3
Mesh size	20～400
Dimensions	1050 x 697 mm
Weight	7kg

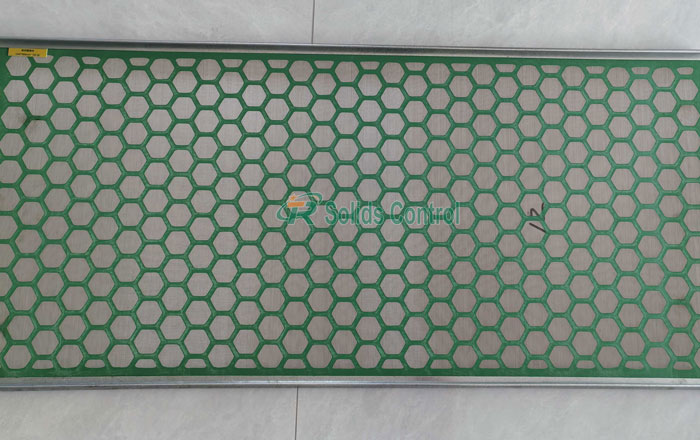

API shale shaker screen for derrick FLC 503 Shaker

Advantages

Stainless steel 304/316 wire cloth for extended service life
Single-side quick-lock tension system for fast panel replacement
Higher flow rates without compromising cut point integrity
Reduces mud loss and increases shaker throughput
Independent backing plate sections limit panel expansion and prevent screen failure
API RP 13C (ISO 13501) compliant

About TR Solids Control

Xi'an TR Solids Control manufactures and exports Tianrui-brand FLC500 PWP shaker screens compatible with Derrick FLC500 series shale shakers. All products meet US API standards and are API-certified, ensuring reliable fit and consistent performance across field operations.
